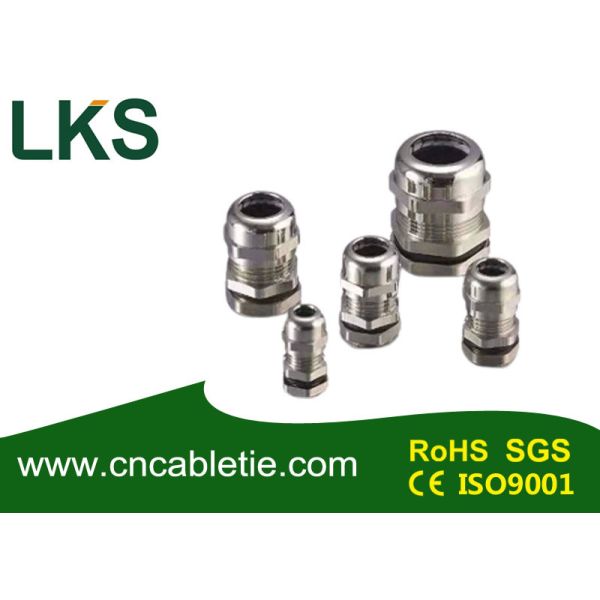

Nickel Plated Brass Waterproof Cable Gland with IP68 Protection and Metric Thread
Nickel Plated Brass Waterproof Cable Gland with IP68 Protection and Metric Thread
Nickel Plated Brass Waterproof Cable Gland with IP68 Protection and Metric Thread
Nickel Plated Brass Waterproof Cable Gland with IP68 Protection and Metric Thread
Specifications
Working temperature :
-20°C to 80°C in dynamic state,-40℃~100℃
Size range :
M12 to M63
Weather strip :
NBR, EPDM
Thread type :
Metric PG NPT G Standard
Brand Name :
LKS
Certification :
RoHS,SGS,CE,ISO9001
Place of Origin :
China
MOQ :
10000pcs
Payment Terms :
L/C,T/T
Supply Ability :
100000pcs per day
Delivery Time :
5days
Packaging Details :
polybag
Material :
Brass coated by nickel
Protection level :
IP68,IP67-5,IP68-10bar pressure
Description
Technical Information:
  • Model:M type
  • Material:Brass coated by nickel.
  • Size:M12 to M63.
  • Color: Metallic Color.
  • Protection Level: IP68.
  • Weather Strip: NBR, EPDM.
  • Working temperature:-40℃ to 100℃,short time to 120℃.
  • Packing:100pcs/bag,50pcs/bag,20pcs/bag,5pcs/bag.
  • Port: Shanghai/Ningbo.
Description:
  • Thread: Metric
  • Materials:Part A.C.F is made of UL approved nylon PA66(fire rating UL94V-2),part B.D butadiene rubber (NBR)or EPDM.
  • Protection Degree:IP68(within fasteing range,O type was her will be used in tightening part)
  • Working Temperature:-40℃ to 100℃ in static state,instantaneous heat resistance up to 120℃; -20℃ to 80℃ in dynamic state,instantaneous heat resistance up to 100℃.
  • Product Features:Wide rang for fastening cables,strong tensile strength,waterproof,dustproof,resistant to acid and alkali,alcohol,grease and general solvents
Model Cable Range() Thread O.D AG()mm Thread Length GL(mm) Spanner Size(mm)
M12X1.5 3-6.5 12 6 14
M16X1.5 4-8 16 7 17
M18X1.5 5-10 18 7.5 20
M20X1.5 6-12 20 7.5 22
M22X1.5 10-14 22 7.5 24
M24X1.5 10-15 24 8 26
M25X1.5 12-16 25 8 27
M27X1.5 13-18 27 8 30
M30X1.5 15-20 30 9 33
M32X1.5 16-22 32 9 35
M36X1.5 18-25 36 9 40
M40X1.5 22-30 40 9 45
M50X1.5 32-38 50 10 57
M63X1.5 37-44 63 11 68
