Fast Changeover CNC Base Plate zero point clamping CNC Clamping
Fast Changeover CNC Base Plate zero point clamping CNC Clamping
Fast Changeover CNC Base Plate zero point clamping CNC Clamping
Fast Changeover CNC Base Plate zero point clamping CNC Clamping
Specifications
Brand Name :
ADJIG
Model Number :
TS52-120
Place of Origin :
Chongqing, China
MOQ :
1
Price :
350-420 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 10 pieces, shipped within 10 days. More than 10 items will be shipped within 30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Dimensions  :
D120*25mm
Material :
Hardened Stainless Steel
Weight :
1.7kg
Bolts :
4-M10
Clamping Force :
18KN
Clamping method :
Manual
Repeatability（mm） :
0.01
Application :
Four-axis and five-axis CNC machine tool machining
Description

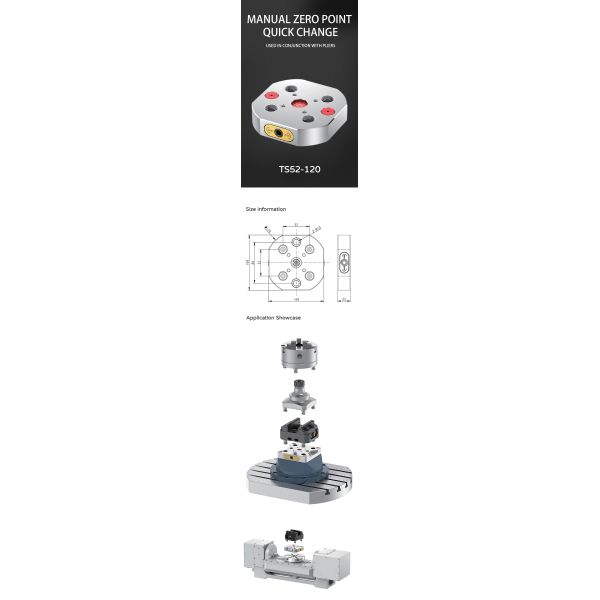

Durable Zero Point CNC Base Plate for 5 Axis Vices Fast Changeover CNC Clamping Fixture


The perfect combination of manual vises and manual zero positioning system enables a modular design that quickly achieves strong locking


The Durable Zero Point TS52-120 CNC Base Plate is engineered for relentless performance in 5-axis machining environments. Constructed from high-strength materials, it withstands the rigors of heavy-duty cutting while its integrated zero-point clamping system facilitates instantaneous vice and fixture changeovers. Achieve tool-less setup in seconds, slashing non-productive downtime and maximizing spindle utilization. This base plate guarantees exceptional rigidity and micron-level repeatability, ensuring vibration-free stability for complex, multi-sided parts. The TS52-120 is the ultimate workholding foundation for high-productivity shops, delivering the robust durability and fast-changeover speed required to excel in precision manufacturing and high-mix production.


Model Dimensions Material Weight Bolts Clamping Force
TS52-120 D120*25mm Hardened Stainless Steel 1.7kg 4-M10 18KN
