0.005mm Repeatability Quick Change Fixture Clamps 3.3kg 50Nm Pull Stud Clamp Bolt
0.005mm Repeatability Quick Change Fixture Clamps 3.3kg 50Nm Pull Stud Clamp Bolt
0.005mm Repeatability Quick Change Fixture Clamps 3.3kg 50Nm Pull Stud Clamp Bolt
0.005mm Repeatability Quick Change Fixture Clamps 3.3kg 50Nm Pull Stud Clamp Bolt
0.005mm Repeatability Quick Change Fixture Clamps 3.3kg 50Nm Pull Stud Clamp Bolt
0.005mm Repeatability Quick Change Fixture Clamps 3.3kg 50Nm Pull Stud Clamp Bolt
Specifications
Brand Name :
ADJIG
Model Number :
CP40/60/80
Place of Origin :
Chongqing, China
MOQ :
1
Price :
406 - 602 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 10 pieces, shipped within 10 days. More than 10 items will be shipped within 30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Weight (kg) :
0.8/1.4/3.3
Material :
Hardened stainless steel
Repeatability :
＜0.005mm
Unlock Method :
Manual
Clamping Force (KN) :
8/15/25
Tightening Torque (Nm) :
8/22/50
Description

High-Precision Pull Stud Clamp Bolt for CNC Machine Clamping Fixtures

Product Features:
Manual unlocking and clamping;
Material: Hardened stainless steel;
Repeat positioning accuracy <0.005MM; High clamping force.
Applicable Industries: Suitable for mold processing and assembly fields.
Suitable for quick adjustment of the center distance of the locator.

Ensure absolute tool security and repeatability with this High-Precision Pull Stud Clamp Bolt. Engineered for CNC machine clamping fixtures, this critical component provides a ultra-reliable retention mechanism within the tool holder. Its meticulously machined geometry guarantees perfect engagement with the machine's automatic tool changer and spindle, delivering exceptional clamping force and rigidity. This minimizes tool deflection and vibration during high-speed machining, ensuring superior surface finishes and extended tool life. Crafted from premium, heat-treated alloy steel for maximum durability, it is the essential link for safe, accurate, and efficient machining, maximizing spindle uptime and protecting your valuable equipment.

Part NumberSize NumberUnlock MethodClamping Force
(KN)		Tightening Torque
(Nm)		Weight
(kg)
CP40-40TC40TManual880.8
CP60-63TC60TManual15221.4
CP80-80TC80TManual25503.3

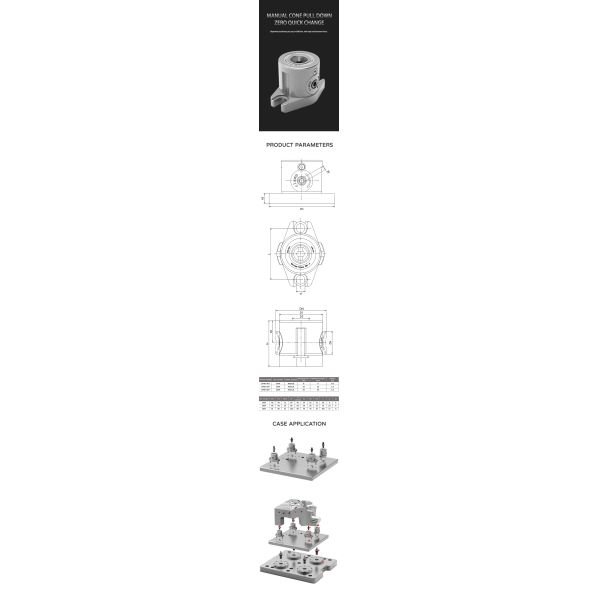

Size NumberDND1ΦD2D3H
(±0.01)		H1H2H3LdW
C40T46401265402022105094
C60T696018956330321575136
C80T91802213080404420100178
