High Strength Victaulic Clamp Bolts Directional Pin Quick Release Fixture Clamps
High Strength Victaulic Clamp Bolts Directional Pin Quick Release Fixture Clamps
High Strength Victaulic Clamp Bolts Directional Pin Quick Release Fixture Clamps
High Strength Victaulic Clamp Bolts Directional Pin Quick Release Fixture Clamps
High Strength Victaulic Clamp Bolts Directional Pin Quick Release Fixture Clamps
High Strength Victaulic Clamp Bolts Directional Pin Quick Release Fixture Clamps
High Strength Victaulic Clamp Bolts Directional Pin Quick Release Fixture Clamps
High Strength Victaulic Clamp Bolts Directional Pin Quick Release Fixture Clamps
Specifications
Brand Name :
ADJIG
Model Number :
CP40/60/80
Place of Origin :
Chongqing, China
MOQ :
1
Price :
40 - 55 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 10 pieces, shipped within 10 days. More than 10 items will be shipped within 30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Name :
Manual nail pulling
Material :
Stainless steel
Surface treatment :
Hardening treatment
Usage scenarios :
Used in conjunction with manual cone pull down zero point
Characteristic :
High precision, hardened treatment
Screw diameter :
M8/M12/M16
Description

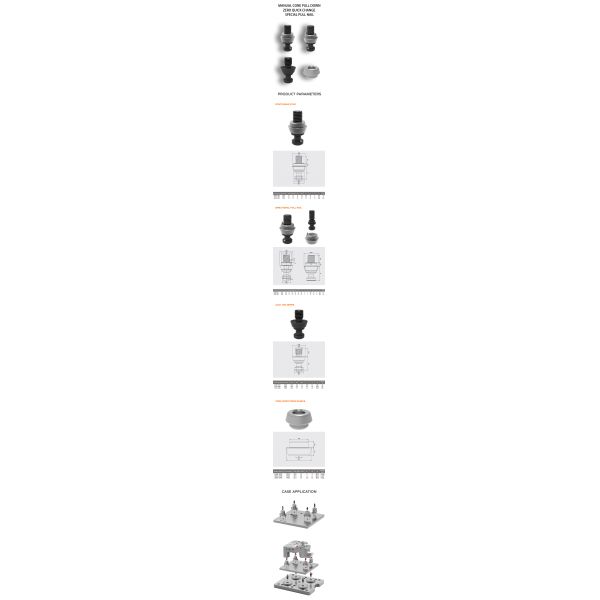

High-Strength Clamp Bolt Precision Directional Pin for Zero Point Positioning Systems

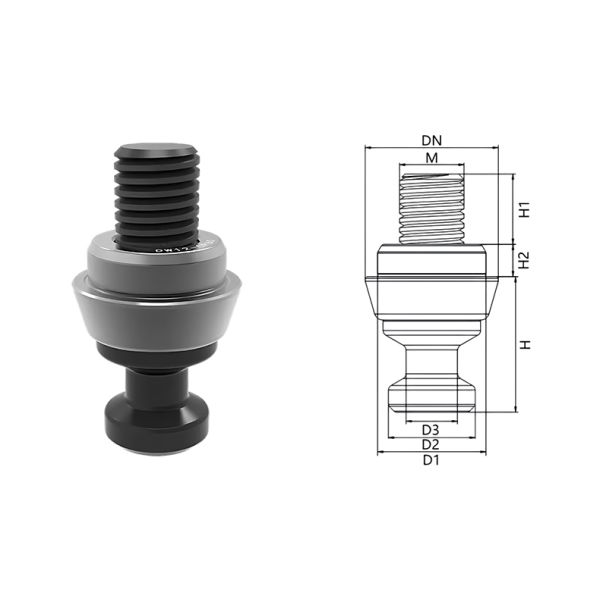

Positioning stud:
High precision requirements, surface hardening treatment;
Plays a role in limiting the degrees of freedom in the X and Y directions;
Suitable for manual cone pull down zero locator.

Engineer unparalleled rigidity and repeatability into your zero-point positioning system with this High-Strength Clamp Bolt and Precision Directional Pin set. The heat-treated clamp bolt delivers exceptional clamping force, securely locking fixtures to the base plate with unwavering stability. Simultaneously, the hardened directional pin ensures absolute micron-level accuracy by eliminating any radial movement during location. This critical combination guarantees perfect repeatability for rapid tool and fixture changes, drastically reducing setup time while maximizing machining precision. Designed for seamless integration with standard zero-point systems, it's the ultimate upgrade for high-performance CNC workholding, ensuring vibration-free operation and superior part quality.

High Strength Victaulic Clamp Bolts Directional Pin Quick Release Fixture Clamps

Product Model Size number ΦDN ΦD1
(G6)		 ΦD2 ΦD3 H H1 H2 M Weight
(g)
DW08-CP40 CP40 16 12 11 6.5 16.5 12 5 M8 20
DW12-CP60 CP60 25 18 16 9.5 25 18 6 M12 70
DW16-CP80 CP80 32 22 21 13 33 22 7.5 M16 150

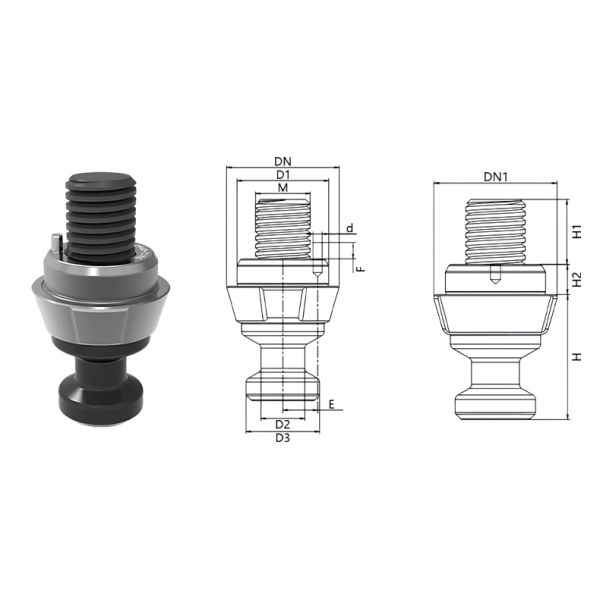

Orientation:
Hardened treatment; restricts rotational freedom and provides orientation
The angle between the guide hole and the positioning edge is 45°
Suitable for manual tapered pull-down zero positioning devices

High Strength Victaulic Clamp Bolts Directional Pin Quick Release Fixture Clamps

Product Model Size number ΦDN ΦDN1 ΦD1
(G6)		 ΦD2 ΦD3 E F Φd H H1 H2 M Weight
(g)
DX08-CP40 CP40 15.5 16 12 6.5 11 5.5 4 2 16.5 12 5 M8 20
DX12-CP60 CP60 24.5 25 18 9.5 16 7.6 4 2 25 18 6 M12 70
DX16-CP80 CP80 31.5 32 22 13 21 9.5 5 2 33 22 7.5 M16 150

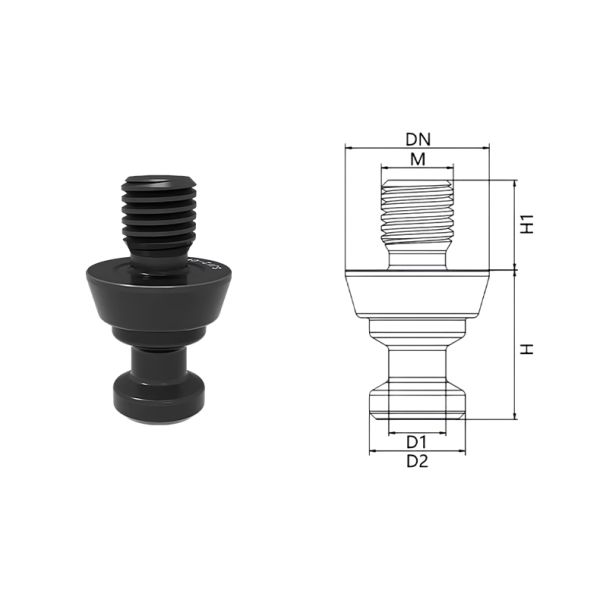

locking screw

Surface hardening treatment plays a role in increasing tension force;
Ensure that the tray is fully positioned and avoid over positioning;
Suitable for manual cone pull down zero locator.

High Strength Victaulic Clamp Bolts Directional Pin Quick Release Fixture Clamps

Product Model Size number ΦDN ΦD1 ΦD2 H H1 M Weight
(g)
SJ08-CP40 CP40 15.5 6.5 11 16.5 12 M8 18
SJ12-CP60 CP60 24.5 9.5 16 25 18 M12 65
SJ16-CP80 CP80 31.5 13 21 33 22 M16 140

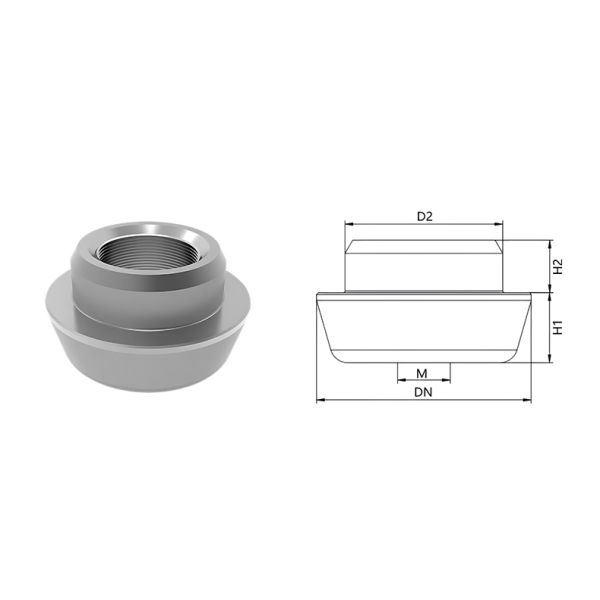

Cone positioning sleeve:
High precision requirements, surface hardening treatment;
Plays a role in limiting the degrees of freedom in the X and Y directions;
Suitable for manual cone pull down zero locator.

High Strength Victaulic Clamp Bolts Directional Pin Quick Release Fixture Clamps

Product Model Size number ΦDN ΦD2(G6) H1 H2 M Weight
(Kg)
SD08-CP40 CP40 15.5 12 5 5 M10 0.008
SD12-CP60 CP60 24.5 20 8 6 M12 0.027
SD16-CP80 CP80 31.5 25 10 7.5 M20 0.051

High Strength Victaulic Clamp Bolts Directional Pin Quick Release Fixture Clamps
