Robust fixture plate clamps CNC Base Plate for 5 Axis Vices Clamping Fixture Workholding
Robust fixture plate clamps CNC Base Plate for 5 Axis Vices Clamping Fixture Workholding
Robust fixture plate clamps CNC Base Plate for 5 Axis Vices Clamping Fixture Workholding
Robust fixture plate clamps CNC Base Plate for 5 Axis Vices Clamping Fixture Workholding
Specifications
Brand Name :
ADJIG
Model Number :
TA9652-155
Place of Origin :
Chongqing, China
MOQ :
1
Price :
345-414 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 10 pieces, shipped within 10 days. More than 10 items will be shipped within 30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Dimensions(mm) :
155*155*30
Material :
Hardened Stainless Steel
Weight :
2.2kg
Clamping Force :
18KN
Bolt :
18KN
Locking method :
Manual
Repeatability（mm） :
0.01
Application :
Four-axis and five-axis CNC machine tool machining
Description

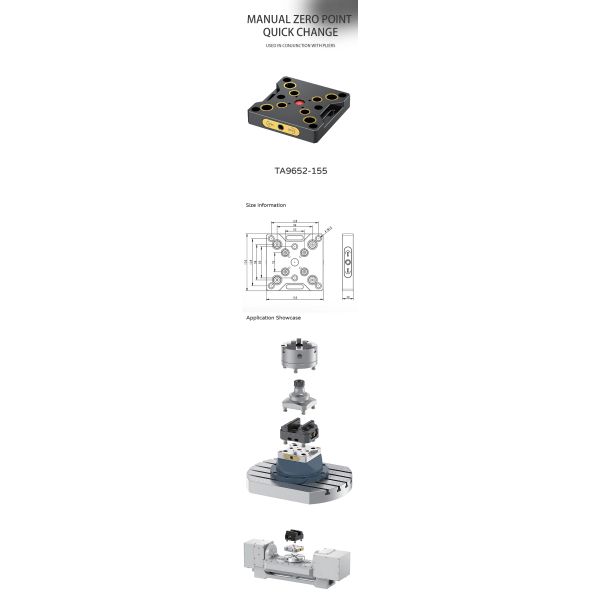

Robust Zero Point CNC Base Plate for 5 Axis Vices Clamping Fixture Workholding


The perfect combination of manual vises and manual zero positioning system enables a modular design that quickly achieves strong locking


The Robust Zero Point TA9652-155 CNC Base Plate delivers unparalleled strength and precision for demanding 5-axis workholding applications. Engineered with a heavy-duty zero-point clamping system, it facilitates instantaneous, tool-less changeovers of multiple vices, drastically reducing setup time to maximize productivity. This base plate ensures exceptional rigidity and micron-level repeatability, providing vibration-free stability during complex, multi-sided machining operations. Ideal for high-volume production and precision manufacturing, the TA9652-155 model offers seamless integration and reliable performance, forming the ultimate foundation for efficient, high-accuracy CNC clamping fixtures and superior workpiece management.


Model Dimensions Material Weight Clamping Force
TA9652-155 155*155*30 Hardened Stainless Steel 4.6kg 20KN
