Specifications
Brand Name :
ADJIG
Model Number :
TS52-210
Place of Origin :
Chongqing, China
MOQ :
1
Price :
552 - 593 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 10 pieces, shipped within 10 days. More than 10 items will be shipped within 30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Dimensions :
210*108*25mm
Material :
Hardened Stainless Steel
Weight :
3.6kg
Clamping Force :
18KN
Bolt :
4-M10
Locking method :
Manual
Repeatability（mm） :
0.01
Application :
Four-axis and five-axis CNC machine tool machining
Description

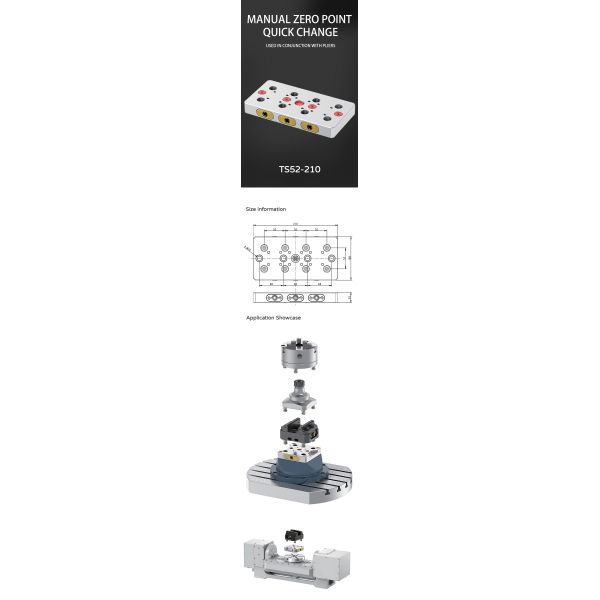

High-Precision Zero Point CNC Base Plate for Workholding Clamping 5 Axis Vices

The perfect combination of manual vises and manual zero positioning system enables a modular design that quickly achieves strong locking

The High-Precision Zero Point TS52-210 CNC Base Plate is the ultimate foundation for efficient 5-axis workholding. Engineered for unparalleled accuracy, it features an integrated zero-point clamping system that allows for rapid, tool-less changeovers of vices and fixtures in seconds. This ensures exceptional rigidity and micron-level repeatability, which is critical for complex, multi-sided machining. By drastically reducing setup time, the TS52-210 maximizes spindle utilization and boosts overall productivity. It is the definitive solution for high-mix manufacturing, providing the robust stability and fastening reliability required to unlock the full potential of your 5-axis CNC machine.

Model Dimensions Material Weight Bolts Clamping Force
TS52-210 210*108*25mm Hardened Stainless Steel 3.6kg 4-M10 18KN
