Zero Point Quick Change Fixture Clamps 18KN Hydraulic Workholding Clamping Fixture
Zero Point Quick Change Fixture Clamps 18KN Hydraulic Workholding Clamping Fixture
Zero Point Quick Change Fixture Clamps 18KN Hydraulic Workholding Clamping Fixture
Zero Point Quick Change Fixture Clamps 18KN Hydraulic Workholding Clamping Fixture
Zero Point Quick Change Fixture Clamps 18KN Hydraulic Workholding Clamping Fixture
Zero Point Quick Change Fixture Clamps 18KN Hydraulic Workholding Clamping Fixture
Zero Point Quick Change Fixture Clamps 18KN Hydraulic Workholding Clamping Fixture
Zero Point Quick Change Fixture Clamps 18KN Hydraulic Workholding Clamping Fixture
Zero Point Quick Change Fixture Clamps 18KN Hydraulic Workholding Clamping Fixture
Zero Point Quick Change Fixture Clamps 18KN Hydraulic Workholding Clamping Fixture
Specifications
Brand Name :
ADJIG
Model Number :
TS52-108
Place of Origin :
Chongqing, China
MOQ :
1
Price :
345 - 414 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 10 pieces, shipped within 10 days. More than 10 items will be shipped within 30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Dimensions :
108*108*25mm
Material :
Hardened Stainless Steel
Weight :
1.9kg
Bolts :
4-M10
Clamping Force :
18KN
Clamping method :
Manual
Repeatability（mm） :
0.01
Application :
Four-axis and five-axis CNC machine tool machining
Description

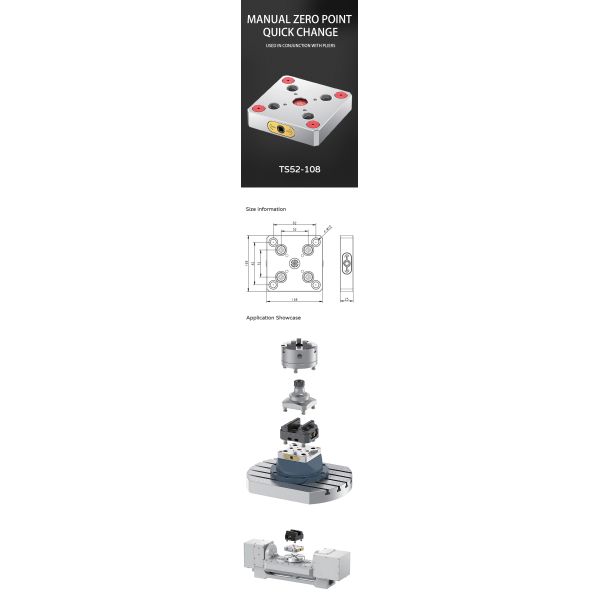

Zero Point CNC Base Plate for 5 Axis Vices Clamping Fixture Workholding

Zero Point TS52-108 CNC Base Plate for 5 Axis Vices Clamping Fixture Workholding

The perfect combination of manual vises and manual zero positioning system enables a modular design that quickly achieves strong locking

The Zero Point CNC Base Plate for 5-Axis Vices is the ultimate workholding solution for high-efficiency machining. Designed for seamless integration with 5-axis CNC machines, this robust fixture plate allows for the rapid mounting and swapping of multiple vices in seconds using a zero-point clamping system. It ensures exceptional rigidity, repeatable accuracy within microns, and maximizes machine uptime by eliminating manual re-fixturing. Ideal for complex, multi-sided machining and batch production, this base plate streamlines your workflow, boosts productivity, and guarantees unparalleled precision for your most demanding workholding applications.

Model Dimensions Material Weight Bolts Clamping Force
TS52-108 108*108*25mm Hardened Stainless Steel 1.9kg 4-M10 18KN

Zero Point Quick Change Fixture Clamps 18KN Hydraulic Workholding Clamping Fixture
