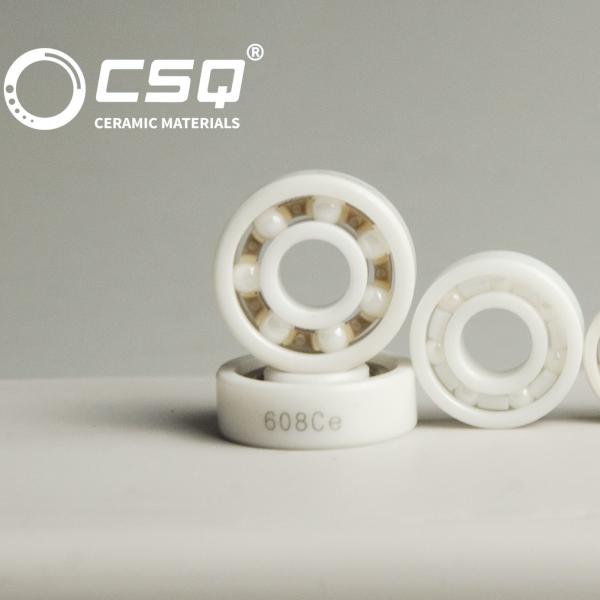

Miniature Zirconia Ceramic Bearing Deep Groove 609 620 630 680 690 699
Miniature Zirconia Ceramic Bearing Deep Groove 609 620 630 680 690 699
Miniature Zirconia Ceramic Bearing Deep Groove 609 620 630 680 690 699
Miniature Zirconia Ceramic Bearing Deep Groove 609 620 630 680 690 699
Specifications
Brand Name :
CSQ
Model Number :
600/620/630/680/690 series
Place of Origin :
China
MOQ :
50 pcs/ one model
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
Negotiable
Delivery Time :
Negotiable
Packaging Details :
Plastik box+carton box
Name :
Zirconia Miniature Deep Groove Balls Bearings
Model :
600/620/630/680/690 series
Race and balls material :
HIP-ZrO2 (Hot isostatic pressure sintered zirconia)
Cage material :
Peek//PFA/Nylon
Precision :
P6/ABEC3 to P4/ABEC7
Seals material :
Peek//Rubber
Clearance :
C0/C3 or customized
MOQ :
50 pieces/one model
Description

Zirconia Miniature Deep Groove Balls Bearings With High Precision:

Material properties of HIP-ZrO2:

Zirconia bearings through full grinding and with high precision has a variety of excellent performance,such as high density and linear expansion coefficient close to that of metal steel shafts, high hardness and wear resistance, resistance to various strong acids, strong alkalis, salt corrosion (except hydrofluoric acid), non-magnetic, non-conductive, high temperature resistance, high operating speed, impact resistance, small starting torque, resistance to dry friction, is one of the most widely used ceramic bearings.

Material Properties Units HIP-ZrO2
Density g/cm3 6.05-6.09
Porosity % 0
Fledural Strength MPa 900
Elastic Modulus GPa 200
Hardness HV5 1300
Fracture Toughness KIC MPa.m1/2 8-11
Maximum Use Temperature ℃
(℉)		 380
(716)

Reference data of Miniature Ceramic Deep Groove Balls Bearings:

Bearings model Form size
d (mm)		 Form size
D (mm)		 Form size
B (mm)		 Load
Cr (N)		 Load
Cor (N)		 Max.Speed
Grease (rpm)		 Max. Speed
Oil (rpm)
684CE 4 9 2.5 564 227 53000 63000
694CE 4 11 4 842 350 48000 56000
604CE 4 12 4 842 350 48000 56000
624CE 4 13 5 1145 488 40000 48000
634CE 4 16 5 1179 523 36000 43000
685CE 5 11 3 630 282 45000 53000
695CE 5 13 4 948 432 43000 50000
605CE 5 14 5 1170 507 40000 50000
625CE 5 16 5 1522 675 36000 43000
635CE 5 19 6 2056 896 32000 40000
686CE 6 13 3.5 952 442 40000 50000
696CE 6 15 5 1179 523 40000 45000
606CE 6 17 6 1991 846 38000 45000
626CE 6 19 6 2056 896 32000 40000
636CE 6 22 7 2930 1423 30000 36000
687CE 7 14 3.5 1032 513 40000 50000
697CE 7 17 5 1412 719 36000 43000
607CE 7 19 6 2056 896 36000 43000
627CE 7 22 7 2893 1379 30000 36000
637CE 7 26 9 4015 1983 28000 34000
688CE 8 16 4 1102 592 36000 43000
698CE 8 19 6 1969 917 36000 43000
608CE 8 22 7 2898 1379 34000 40000
628CE 8 24 8 2930 1423 28000 34000
638CE 8 28 9 4015 1983 28000 34000
689CE 9 17 4 1168 668 36000 43000
699CE 9 20 6 2171 1081 34000 40000
609CE 9 24 7 2953 1444 32000 38000
629CE 9 26 8 4026 1983 28000 34000
639CE 9 30 10 4100 2080 24000 30000
