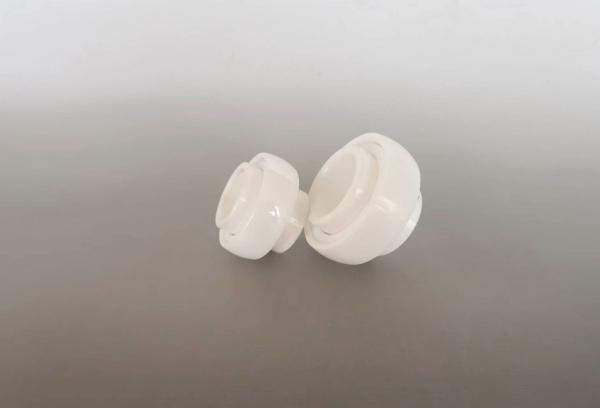

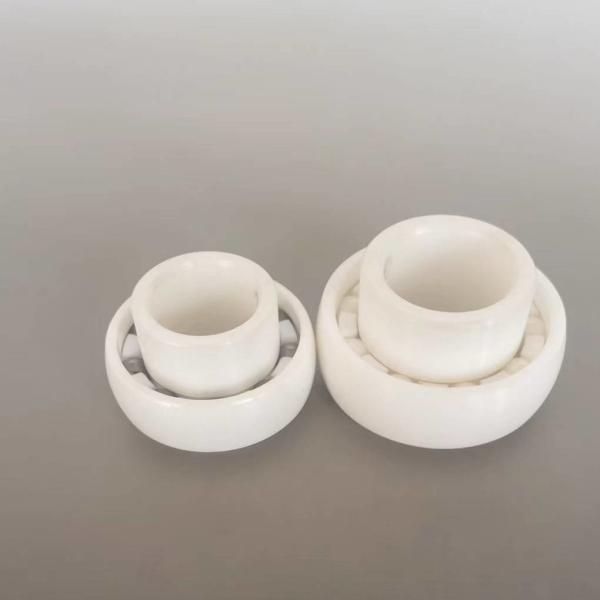

Insert Zirconia Ceramic Bearing Adapting Thread UC200
Insert Zirconia Ceramic Bearing Adapting Thread UC200
Insert Zirconia Ceramic Bearing Adapting Thread UC200
Insert Zirconia Ceramic Bearing Adapting Thread UC200
Specifications
Brand Name :
CSQ
Model Number :
UC200 series
Place of Origin :
China
MOQ :
50 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
Negotiable
Delivery Time :
Negotiable
Packaging Details :
Foam+cartom box
Name :
Zirconia Insert Bearings With Adapting Thread
Model :
UC200 series
Race and ball material :
ZrO2 (Zirconia)
Cage material :
Peek//PFA
MOQ :
50 pieces
Pacage :
Foam+cartom box
Description

Zirconia Insert Bearings With Adapting Thread Of Customized Model

Material properties of ZrO2 (HIP sintered)

Zirconia bearing is a kind of special bearings through full grinding, with high precision and a variety of excellent performance, has a density and linear expansion coefficient close to that of metal steel shafts, high hardness Hv1280, wear resistance, resistance to various strong acids, strong alkalis, salt corrosion (except hydrofluoric acid), non-magnetic, non-conductive, high temperature resistance, high operating speed, impact resistance, small starting torque, resistance to dry friction, is one of the most widely used ceramic bearings.

►Key properties of zirconia
♦ Max Temperature up to 380℃
♦ High density: 6.09 g/cm3
♦ Low thermal conductivity
♦ Chemical stability, resistance to acid and alkali corrosion
♦ High fracture toughness KIC:8-11 MPa-m1/2
♦ Good electric insulation
♦ Better bearing capacity
♦ Wear resistance
♦ High hardness : 1300 HV5

Reference data of Ceramic Insert Bearings with adapting thread

Bearings model

Form size

d (mm)

Form size

D (mm)

Form size

B (mm)

Load
Cr (N)

Load

Cor (N)

Max.Speed

Grease (rpm)

Max. Speed

Oil (rpm)
UC201CE 12 29 47 12.7 18.3 4.5 M6×0.75
UC202CE 15 29 47 12.7 18.3 4.5 M6×0.75
UC203CE 17 29 47 12.7 18.3 4.5 M6×0.75
UC204CE 20 29 47 12.7 18.3 4.5 M6×0.75
UC205CE 25 34 52 14.3 19.7 5 M6×0.75
UC206CE 30 40.5 62 15.9 22. 5 M6×0.75
UC207CE 35 48 72 17.5 25.4 6 M8×1.0
UC208CE 40 53 80 19 30.2 8 M8×1.0
UC209CE 45 57.3 85 19 30.2 8 M8×1.0
UC210CE 50 63 90 19 32.6 9 M10×1.25
UC211CE 55 70 100 22.2 33.4 9 M10×1.25
UC212CE 60 77 110 25.4 39.7 10 M10×1.25
UC213CE 65 82.1 120 25.4 39.7 10 M10×1.25
UC214CE 70 87 125 30.2 44.4 12 M12×1.5
UC215CE 75 91.5 130 33.3 44.5 14 M12×1.5

Insert Zirconia Ceramic Bearing Adapting Thread UC200
