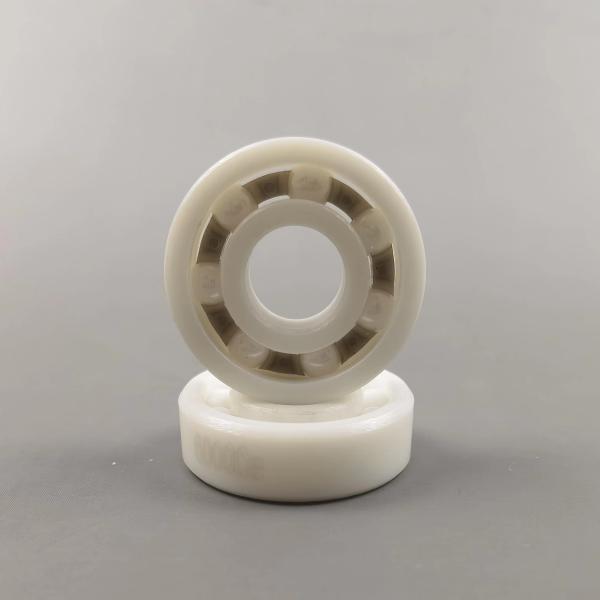

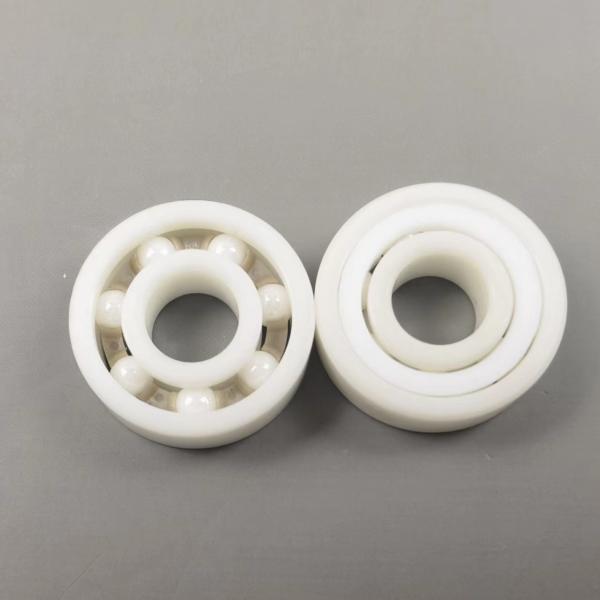

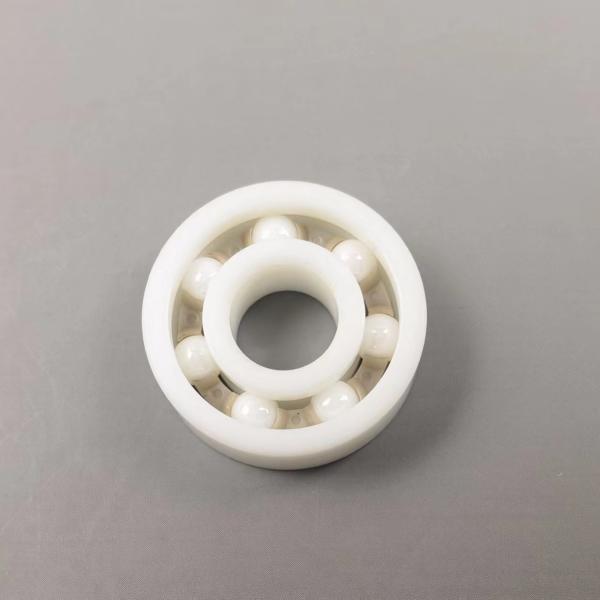

All ZrO2 Bearings 6000 of Zirconia Races/Balls+Peek Cage with P6/ABEC3-P4/ABEC7 Precision

Description of All ZrO2 Bearings 6000 (Zirconia+PEEK):

1. ZrO2 races and balls: Are made by highly purified, sub-micron and after Y2O3-TZP stabled zirconia powder material, are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology, so their porosity, wear resistance, impact resistance and resistance to fatigue contact life are greatly improved, to which is the ordinary zirconia bearings incomparable.

2. PEEK cage: The crown structure cages are adopted British Victrex PEEK material and injection molded at high temperature, so have high strength, light body, and will be fitted to the bearings using our unique design of press-fit double-sided construction. PEEK material has similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics.

Performance advantages of All ZrO2 Bearings 6000 (Zirconia+PEEK):

A kind of special bearings through full grinding, with high precision and a variety of excellent performance, has a density and linear expansion coefficient close to that of metal steel shafts, high hardness Hv1280, wear resistance, resistance to various strong acids, strong alkalis, salt corrosion (except hydrofluoric acid), non-magnetic, non-conductive, high temperature resistance, high operating speed, impact resistance, small starting torque, resistance to dry friction, is one of the most widely used ceramic bearings

Application of All ZrO2 Bearings 6000 (Zirconia+PEEK):

Because of the properties of zirconia and PEEK material, all ZrO2 bearings 6000 are suitable for certain vibration and mild impact environment, such as chemical, antimagnetic, semiconductor, medium/low speed and corrosive working environment.
