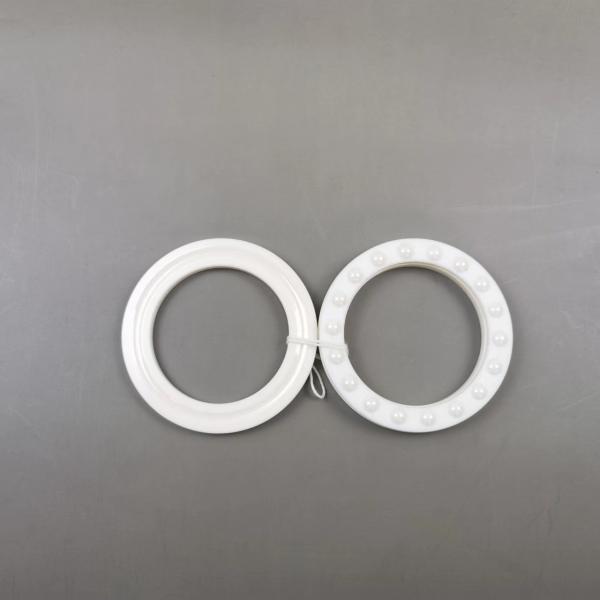

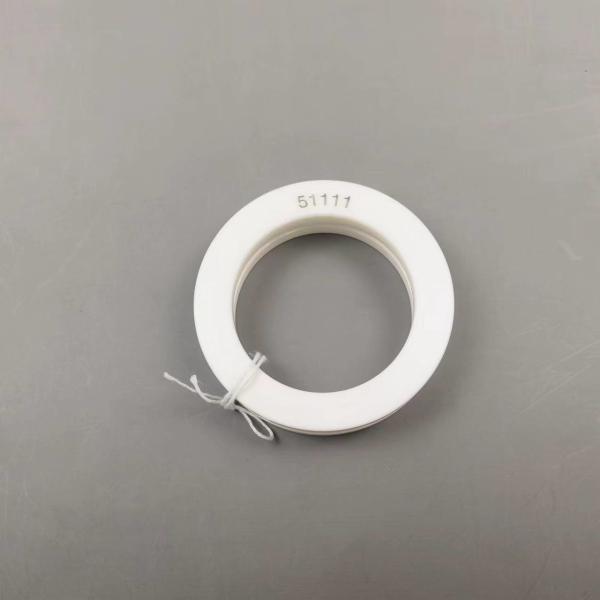

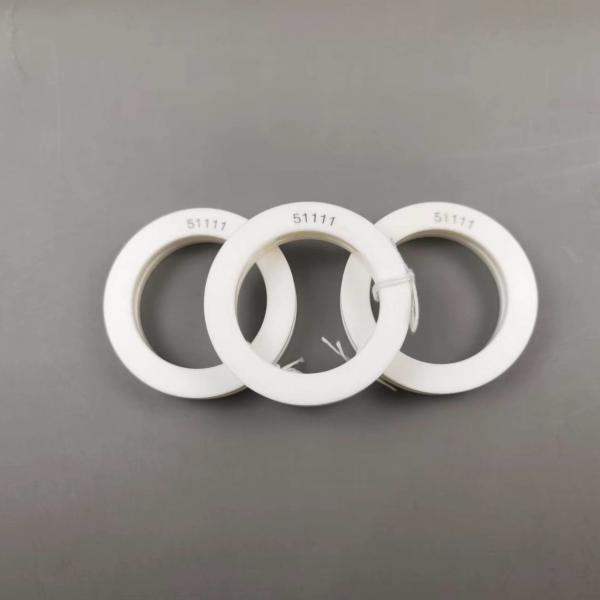

Thrust Zirconia Ceramic Bearing 51111 Fitted With PTFE Cage
Thrust Zirconia Ceramic Bearing 51111 Fitted With PTFE Cage
Thrust Zirconia Ceramic Bearing 51111 Fitted With PTFE Cage
Thrust Zirconia Ceramic Bearing 51111 Fitted With PTFE Cage
Thrust Zirconia Ceramic Bearing 51111 Fitted With PTFE Cage
Thrust Zirconia Ceramic Bearing 51111 Fitted With PTFE Cage
Specifications
Brand Name :
CSQ
Model Number :
51111
Place of Origin :
China
MOQ :
50 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 pcs in 30-40 work days
Delivery Time :
30-40 work days
Packaging Details :
Plastik box+carton box
Name :
Zirconia Thrust Bearing 51111
Material :
ZrO2 races and balls+PTFE cage
Structure :
Ceramic single direction thrust ball bearing
Form size :
55 (d)×78 (D)×16 (B)mm
Precision :
P6/ABEC3
MOQ :
50 pieces
Description

Zirconia Thrust Bearing 51111 Fitted With PTFE Cage

Description:

1. ZrO2 races and balls: Are made by highly purified, sub-micron and after Y2O3-TZP stabled zirconia powder material, are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology. After HIP sintered zirconia races and balls have higher density, besser properties and lower porosity.

2. PTFE cage: has excellent chemical stability, can resistant to molten metal sodium and liquid fluorine, to all kinds of acid and alkali resistance and organic solvent,can work in +250℃ to -180℃ temperature for a long time.

Material properties of zirconia:

♦High hardness : 1300 HV5
♦ High density: 6.09 g/cm3
♦ Max Temperature up to 380℃
♦ Chemical stability, resistance to acid and alkali corrosion
♦ High fracture toughness KIC:8-11 MPa-m1/2 and good wear resistance
♦ Low thermal conductivity
♦ Better bearing capacity
♦ Good magnetic and electric insulation

Performance advantage of ZrO2 Thrust Bearing 51111:

Ceramic Bearings Dimension Reference
Bearings Model Load Rating (Ref.) Load Rating (Ref.) Max Speed (Ref.) Max Speed (Ref.)
Cr(N) Cor(N) Grease (rpm) Oil (rpm)
51111CE 28000 79050 2800 4200

Thrust Zirconia Ceramic Bearing 51111 Fitted With PTFE CageThrust Zirconia Ceramic Bearing 51111 Fitted With PTFE Cage
