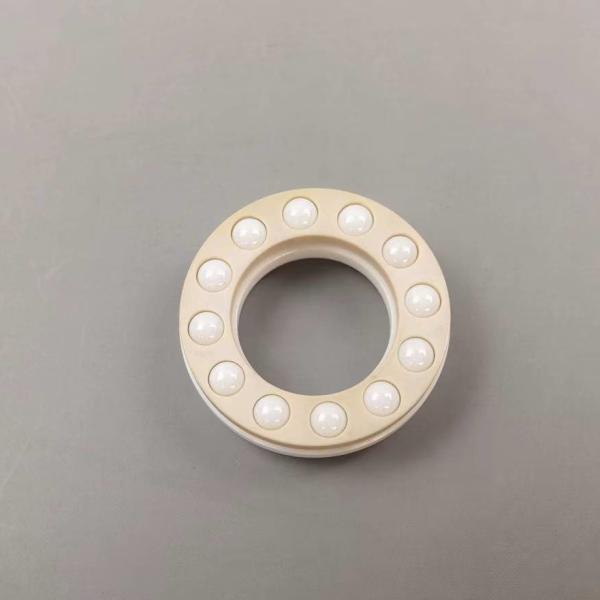

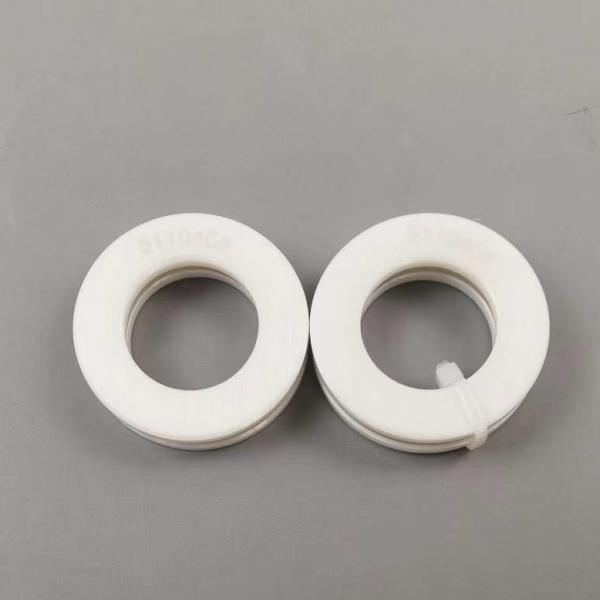

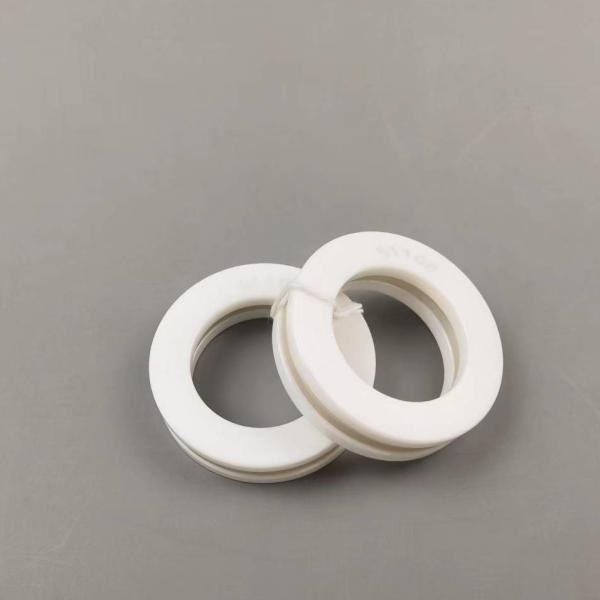

Thrust Zirconia Ceramic Bearing 51104 P6 ABEC3 Precision
Thrust Zirconia Ceramic Bearing 51104 P6 ABEC3 Precision
Thrust Zirconia Ceramic Bearing 51104 P6 ABEC3 Precision
Thrust Zirconia Ceramic Bearing 51104 P6 ABEC3 Precision
Thrust Zirconia Ceramic Bearing 51104 P6 ABEC3 Precision
Thrust Zirconia Ceramic Bearing 51104 P6 ABEC3 Precision
Specifications
Brand Name :
CSQ
Model Number :
51104
Place of Origin :
China
MOQ :
50 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 pcs in 30-40 work days
Delivery Time :
30-40 work days
Packaging Details :
Plastik bag+foam+carton box
Name :
ZirconiaThrust Bearing 51104
Material :
Zirconia Races/Balls+Peek cage
Size :
Ø20×Ø35×110mm
MOQ :
50 pieces
Pacage :
Foam+cartom box
Delivery time :
30-40 work days
Description

Zirconia Thrust Bearing 51104 With P6/ABEC3 Precision

Description of Ceramic Thrust Bearing 51104:

1. ZrO2 races and balls: Are made by highly purified, sub-micron and after Y2O3 partially stabled zirconia powder material and are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology. Zirconia material has high density (6.05-6.09g/cm3)and linear expansion coefficient close to that of metal steel, high hardness(1300HV5), good wear resistance, resistance to various strong acids, strong alkalis, salt corrosion (except hydrofluoric acid), non-magnetic, non-conductive, high temperature resistance(max. working temperature is 380℃).

2. PEEK cage: PEEK cage has high strength, light body, and similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics.

Performance advantages of Ceramic Thrust Bearing 51104 (Zirconia+PEEK):

Ceramic Bearings Dimension Reference
Bearings Model Load Rating (Ref.) Load Rating (Ref.) Max Speed (Ref.) Max Speed (Ref.)
Cr(N) Cor(N) Grease (rpm) Oil (rpm)
51104CE 11440 20995 5300 8000
