High-intensity Light Suppression Zoom High-temperature Resistant Air-cooled Camera
High-intensity Light Suppression Zoom High-temperature Resistant Air-cooled Camera
Specifications
Brand Name :
KAIDUN
Model Number :
KDG006
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000 units/year
Delivery Time :
5-8 week
Packaging Details :
Wooden box packaging / cardboard box packaging
Visible Resolution :
2MP/4MP/8MP optional
Visible Focal Length :
2.8~12mm/8~32mm optional
Intelligent Fill Light :
Built-in High-efficiency Red Light & White Light Array Lamps
Working Temperature :
-20'C~+100°C/+150°C (with refrigeration tube)
Power :
DC12V/POE optional
Total Weight :
≤6.5kg
Description
High-intensity Light Suppression Zoom High-temperature Resistant Air-cooled Camera
Key Features
  • The KDG006 is a High-temperature Camera Equipped with an Air-cooled Dome housing
  • lt supports high-intensity light suppression function, which restores true colors in high-brightness environments.
Application Environment
High-intensity Light Suppression Zoom High-temperature Resistant Air-cooled Camera

Metallurgical & Steel Industry

High-intensity Light Suppression Zoom High-temperature Resistant Air-cooled Camera

Power Generation Industry

High-intensity Light Suppression Zoom High-temperature Resistant Air-cooled Camera

Petrochemical & Chemical Industry

High-intensity Light Suppression Zoom High-temperature Resistant Air-cooled Camera

Glass & Ceramic Industry

High-intensity Light Suppression Zoom High-temperature Resistant Air-cooled Camera

Waste Incineration & Environmental Protection

High-temperature resistant cameras are engineered to operate reliably in extreme thermal environments (typically -40°C to 1200°C, depending on models) where standard cameras fail due to overheating, component degradation, or structural damage.
Main Features
Material 304/316L Stainless Steel
Protection Class IP65
Working Temperature -20℃~+100℃/+150℃(with refrigeration tube)
Working Humidity <95%(non-condensing)
Video IP
Visible Resolution 2MP/4MP/8MP etc
Visible Focal Length 2.8~12mm/8~32mm optional
Intelligent Fill Light Built-in High-efficiency Red Light & White Light Array Lamps
Comperssed Air Pressure 0.2~0.4Mpa
Compressed Air Flow Rate 0.3~0.7m³/min(0.7 m³/min at an air pressure of 0.4 MPa)
General Function Anti-flicker, Dual Stream, Rotation,Heartbeat, Mirroring, Password-protected Video Masking,Watermarking Technology,IP Address Filtering
Intelligent Alarm Cross-line Detection; Region Intrusion Detection;Motion Detection; Dynamic Analysis Tampering Alarm;Network Cable Disconnection;IP Address Conflict; Unauthorized Access
Voltage DC12V/POE optional
Dimensions 350*170*180mm
Weight ≤6.5kg
Mounting Wall-mounted ,Semi-fixed PTZ Head , Pole Installation, etc.

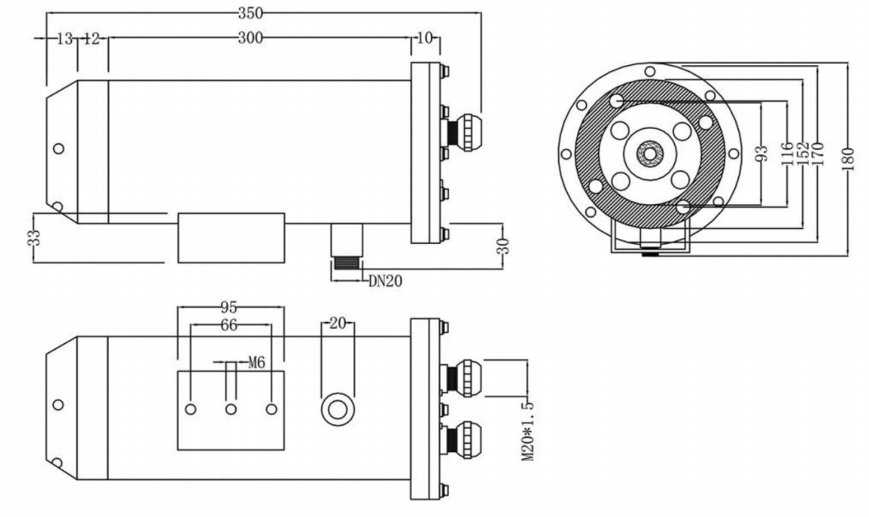

Dimensions
High-intensity Light Suppression Zoom High-temperature Resistant Air-cooled Camera
