High-temperature Resistant Semiconductor Refrigeration Camera
High-temperature Resistant Semiconductor Refrigeration Camera
Specifications
Brand Name :
KAIDUN
Model Number :
KDG013
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000 units/year
Delivery Time :
5-8 week
Packaging Details :
Wooden box packaging / cardboard box packaging
Visible Resolution :
2MP/4MP optional
Visible Focal Length :
4-20mm/3-10mm High-temperature Resistant Manual Lens
Operating Conditions :
Temperature inside the furnace ≤ 1000°C
Dust Concentration in the Operating Environment :
≤ 200 mg/m3 (based on cement dust as the standard)
Power :
DC12V/POE optional
Total Weight :
≤30kg
Description
High-temperature Resistant Semiconductor Refrigeration Camera
Key Features
  • The KDG013 is a High-temperature Camera Equipped with an Air-cooled housing
  • The camera lens of this system equipment can be directly extended to the observation hole on the furnace wall to monitor the operation of workpieces inside the furnace, as well as the conditions of materials, flame shape,and other related situations.
Application Environment
High-temperature Resistant Semiconductor Refrigeration Camera

Metallurgical & Steel Industry

High-temperature Resistant Semiconductor Refrigeration Camera

Power Generation Industry

High-temperature Resistant Semiconductor Refrigeration Camera

Petrochemical & Chemical Industry

High-temperature Resistant Semiconductor Refrigeration Camera

Glass & Ceramic Industry

High-temperature Resistant Semiconductor Refrigeration Camera

Waste Incineration & Environmental Protection

High-temperature resistant cameras are engineered to operate reliably in extreme thermal environments (typically -40°C to 1200°C, depending on models) where standard cameras fail due to overheating, component degradation, or structural damage.
Main Features
Material 304 Stainless Steel + Local High-temperature Resistant Pot
Operating Conditions Temperature inside the furnace ≤ 1000℃
Dust Concentration in
the Operating Environment		 ≤ 200 mg/m3 (based on cement dust as the standard)
Video IP
Visible Resolution 2MP/4MP etc
Visible Focal Length 4-20mm/3-10mm High-Temperature Resistant Manual Lens
Cooling Method Combined Air-Water Cooling for Temperature Reduction
Comperssed Air Pressure 0.2~0.4Mpa
Compressed Air Flow Rate 0.3~0.7m³/min(0.7 m³/min at an air pressure of 0.4 MPa)
General Function Anti-flicker, Dual Stream, Rotation,Heartbeat, Mirroring, Password-protected Video Masking,Watermarking Technology,IP Address Filtering
Intelligent Alarm Cross-line Detection; Region Intrusion Detection;Motion Detection; Dynamic Analysis Tampering Alarm;Network Cable Disconnection;IP Address Conflict; Unauthorized Access
Voltage DC12V/POE optional
Dimensions 1130*372*190mm
Weight ≤30kg
Mounting Weld together with the matching mounting base plate to the reserved hole of the fumace.

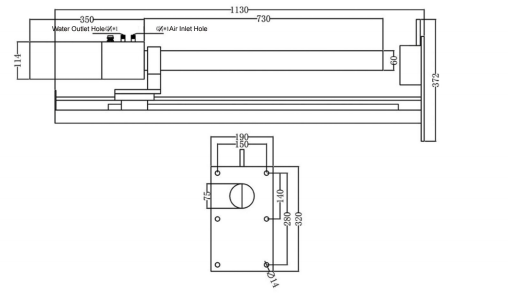

Dimensions
High-temperature Resistant Semiconductor Refrigeration Camera
