High-temperature Resistant Air-water Cooled Thermal lmaging Camera
High-temperature Resistant Air-water Cooled Thermal lmaging Camera
Specifications
Brand Name :
KAIDUN
Model Number :
KDG003
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000 units/year
Delivery Time :
5-8 week
Packaging Details :
Wooden box packaging / cardboard box packaging
Thermal Resolution :
384*288,640*512 etc
Pixel Size :
17μm
Temperature  Museurement Range :
-20°C to 150°C / 0°C to 550°C
Temperature Museurement accuracy :
±2°C or ±2% of the reading(whichever is larger).
Power :
DC12V
Total Weight :
≤4.5kg
Description
High-temperature Resistant Air-waterCooled Thermal lmaging Camera
Key Features
  • The KDG002 is a High-temperature Camera Equipped with an Air-cooled Dome housing
  • The temperature-measuring lens enables it to have a temperature measurement range of -20°C to 550°C, with a measurement accuracy of +2°C or +2% of the reading (whichever is larger).
Application Environment
High-temperature Resistant Air-water Cooled Thermal lmaging Camera

Metallurgical & Steel Industry

High-temperature Resistant Air-water Cooled Thermal lmaging Camera

Power Generation Industry

High-temperature Resistant Air-water Cooled Thermal lmaging Camera

Petrochemical & Chemical Industry

High-temperature Resistant Air-water Cooled Thermal lmaging Camera

Glass & Ceramic Industry

High-temperature Resistant Air-water Cooled Thermal lmaging Camera

Waste Incineration & Environmental Protection

High-temperature resistant cameras are engineered to operate reliably in extreme thermal environments (typically -40°C to 1200°C, depending on models) where standard cameras fail due to overheating, component degradation, or structural damage.
Main Features
Material Double-layer 304/316L Stainless Steel
Protection Class IP66
Working Temperature -10℃~+150℃C/+200℃(with refrigeration tube)
Working Humidity <95%(non-condensing)
Video IP
Thermal Resolution 384*288,640*512 etc
Pixel Size 17μm
Spectral Range 8~14μm
Comperssed Air Pressure 0.2~0.4Mpa
Compressed Air Flow Rate 0.3~0.7m³/min(0.7 m³/min at an air pressure of 0.4 MPa)
Temperature Museurement Range -20°C to 150°C / 0°C to 550°C
Temperature Museurement accuracy ±2°C or ±2% of the reading(whichever is larger).
Voltage DC12V
Dimensions 360*150*145mm
Weight ≤4.5kg
Mounting Stainless Steel Wall-mounted,Pole Installation, etc.

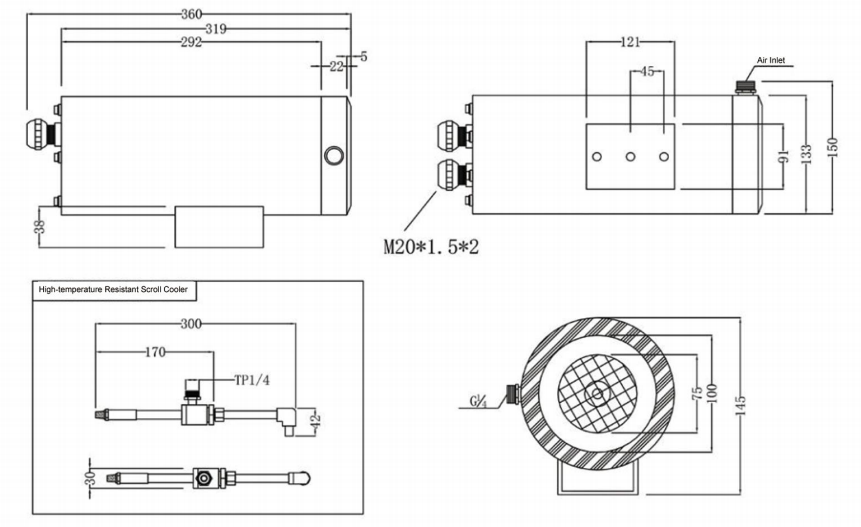

Dimensions

High-temperature Resistant Air-water Cooled Thermal lmaging Camera
