Vertical Double-sided High-temperature Resistant Air-water Cooled PTZ Camera
Vertical Double-sided High-temperature Resistant Air-water Cooled PTZ Camera
Specifications
Brand Name :
KAIDUN
Model Number :
KDG002
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000 units/year
Delivery Time :
5-8 week
Packaging Details :
Wooden box packaging / cardboard box packaging
Visible Resolution :
2MP/4MP etc
Visible Focal Length :
4x/25x/30x etc optical zoom optional
IR Range :
80-100m
Working Temperature :
-10℃~+100℃
Power :
AC220V/AC24V/DC24V optional
Total Weight :
≤32kg
Description
Vertical Double-sided High-temperature Resistant Air-water Cooled PTZ Camera
Key Features
  • The KDG002 is a High-temperature Camera Equipped with an Air-cooled Dome housing
  • Spherical rotational structure allows for multi-angle observation with horizontal range of 0° to 360° and vertical range of -90° to +90°
Application Environment
Vertical Double-sided High-temperature Resistant Air-water Cooled PTZ Camera

Metallurgical & Steel Industry

Vertical Double-sided High-temperature Resistant Air-water Cooled PTZ Camera

Power Generation Industry

Vertical Double-sided High-temperature Resistant Air-water Cooled PTZ Camera

Petrochemical & Chemical Industry

Vertical Double-sided High-temperature Resistant Air-water Cooled PTZ Camera

Glass & Ceramic Industry

Vertical Double-sided High-temperature Resistant Air-water Cooled PTZ Camera

Waste Incineration & Environmental Protection

High-temperature resistant cameras are engineered to operate reliably in extreme thermal environments (typically -40°C to 1200°C, depending on models) where standard cameras fail due to overheating, component degradation, or structural damage.
Main Features
Material 304/316L Stainless Steel
Protection Class IP66
Working Temperature -10℃~+100℃
Working Humidity <90%
Video IP
Visible Resolution 2MP/4MP etc
Visible Focal Length 4x/25x/30x optical zoom optional
IR Range 80-100m
Comperssed Air Pressure 0.2~0.4Mpa
Compressed Air Flow Rate 0.3~0.7m³/min(0.7 m³/min at an air pressure of 0.4 MPa)
Rotation Range Horizontal: 0~360° (9°/s)
Vertical: -27°~+90° (6°/s)
Smart Event Motion Detection, Tampering Alarm,Storage Full, Storage Error,Audio Anomaly Detection, Cross-line Detection,Region Intrusion Detection
Voltage AC220V/AC24V/DC24V optional
Dimensions 540*425*280mm
Weight ≤32kg
Mounting Wall-mounted Bracket for Heavy-duty PTZ Camera , Pole Installation, etc.

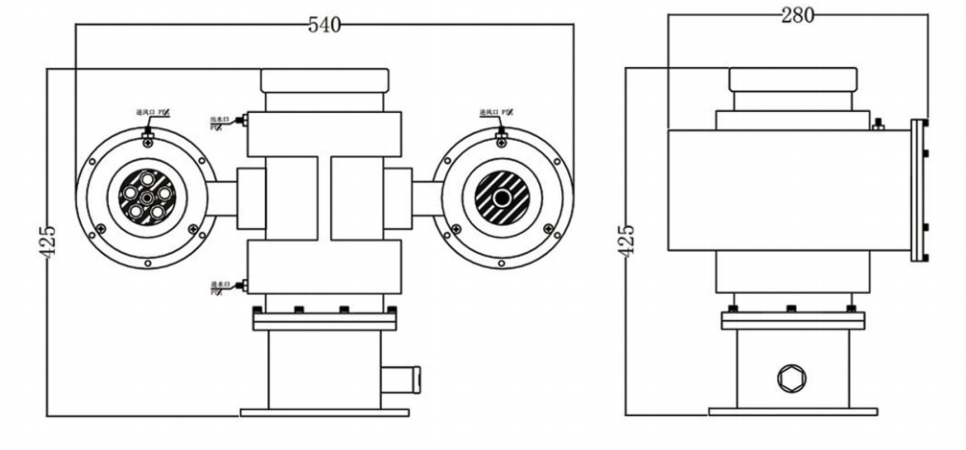

Dimensions
Vertical Double-sided High-temperature Resistant Air-water Cooled PTZ Camera
