High-temperature Resistant Air-cooled Dome Camera
High-temperature Resistant Air-cooled Dome Camera
Specifications
Brand Name :
KAIDUN
Model Number :
KDG001
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000 units/year
Delivery Time :
5-8 week
Packaging Details :
Wooden box packaging / cardboard box packaging
Visible Resolution :
4MP
Visible Focal Length :
23x optical zoom
IR Range :
150m
Working Temperature :
-20℃~+100℃/+150℃(with refrigeration tube)
Power :
DC36V
Total Weight :
≤5kg
Description
High-temperature Resistant Air-cooled Dome Camera
Key Features
  • The KDG001 is a High-temperature Camera Equipped with an Air-cooled Dome housing
  • Spherical rotational structure allows for multi-angle observation with horizontal range of 0° to 360° and vertical range of -15° to +90°
Application Environment
High-temperature Resistant Air-cooled Dome Camera

Metallurgical & Steel Industry

High-temperature Resistant Air-cooled Dome Camera

Power Generation Industry

High-temperature Resistant Air-cooled Dome Camera

Petrochemical & Chemical Industry

High-temperature Resistant Air-cooled Dome Camera

Glass & Ceramic Industry

High-temperature Resistant Air-cooled Dome Camera

Waste Incineration & Environmental Protection

High-temperature resistant cameras are engineered to operate reliably in extreme thermal environments (typically -40°C to 1200°C, depending on models) where standard cameras fail due to overheating, component degradation, or structural damage.
Main Features
Material Stainless Steel
Protection Class IP66
Working Temperature -20℃~+100℃/+150℃(with refrigeration tube)
Working Humidity <95%(Non-Condensing)
Video IP
Visible Resolution 4MP
Visible Focal Length 23x optical zoom
IR Range 150m
Comperssed Air Pressure 0.2~0.4Mpa
Compressed Air Flow Rate 0.3~0.7m³/min(0.7 m³/min at an air pressure of 0.4 MPa)
Rotation Range Horizontal: 0~360° (0.05°~200°/s)
Vertical: -27°~+90° (0.05°~120°/s)
Smart Event Motion Detection,Alarm Input/Output,Tampering Alarm / Blockage Alarm,Abnormality
Voltage DC36V
Dimensions 140*φ230mm
Weight ≤5kg
Mounting Wall-mounted/Ceiling-mounted Brackets for Dome Cameras, Poles, etc.

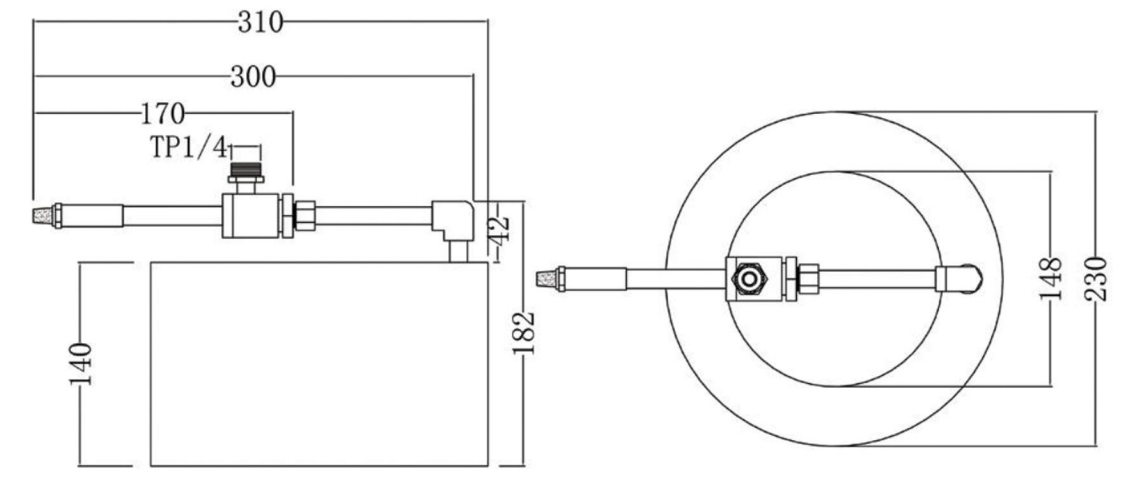

Dimensions
High-temperature Resistant Air-cooled Dome Camera
