Automatic Retractable Endoscopic High-temperature Resistant Thermal lmaging Camera
Automatic Retractable Endoscopic High-temperature Resistant Thermal lmaging Camera
Specifications
Brand Name :
KAIDUN
Model Number :
KDG016
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000 units/year
Delivery Time :
5-8 week
Packaging Details :
Wooden box packaging / cardboard box packaging
Thermal Resolution :
384*288/640*512 optional
Thermal Museurement Range :
0°C to 400°C/400°C to 1500°C
Operating Conditions :
Temperature inside the furnace ≤ 1500℃ /2000℃ Customizable
Dust Concentration in the Operating Environment :
≤ 200 mg/m3 (based on cement dust as the standard)
Power :
DC12V/AC220V optional
Total Weight :
≤25kg
Description
Cylinder-type High-temperature In-furnace Camera
Key Features
  • The KDG016 is a High-temperature Camera Equipped with an Air-cooled housing
  • The camera lens of this system equipment can be directly extended to the observation hole on the furnace wall to monitor the operation of workpieces inside the furnace, as well as the conditions of materials, flame shape,and other related situations.
Application Environment
Automatic Retractable Endoscopic High-temperature Resistant Thermal lmaging Camera

Metallurgical & Steel Industry

Automatic Retractable Endoscopic High-temperature Resistant Thermal lmaging Camera

Power Generation Industry

Automatic Retractable Endoscopic High-temperature Resistant Thermal lmaging Camera

Petrochemical & Chemical Industry

Automatic Retractable Endoscopic High-temperature Resistant Thermal lmaging Camera

Glass & Ceramic Industry

Automatic Retractable Endoscopic High-temperature Resistant Thermal lmaging Camera

Waste Incineration & Environmental Protection

High-temperature resistant cameras are engineered to operate reliably in extreme thermal environments (typically -40°C to 1200°C, depending on models) where standard cameras fail due to overheating, component degradation, or structural damage.
Main Features
Material 304 Stainless Steel + Local High-temperature Resistant Pot
Operating Conditions Temperature inside the furnace ≤ 1500℃ /2000℃ Customizable
Dust Concentration in
the Operating Environment		 ≤ 200 mg/m3 (based on cement dust as the standard)
Video IP
Thermal Resolution 384*288 / 640*512 optional
Thermal Museurement Range 0°C to 400°C/400°C to 1500°C
Thermal Museurement Accuracy ±3°C@(0°C~100°C) / ±2℃ or ±2% of the reading (whichever is larger).
Comperssed Air Pressure 0.2~0.4Mpa
Compressed Air Flow Rate 0.3~0.7m³/min(0.7 m³/min at an air pressure of 0.4 MPa)
Thermal Museurement Tools Arbitrary Fixed Point, Full-Screen High / Low Temperature Capture, Central Point Temperature Measurement Line/Area Analysis Tool, Manual Temperature Range Selection, Radar Temperature Measurement Tool
Interface Protocols ONVIF,GB28181,ModbusTCP(supports transmission of regional temperature information)
Voltage DC12V/AC220V optional
Dimensions 950*398*210mm
Weight ≤25kg
Mounting Weld together with the matching mounting base plate to the reserved hole of the furnace.

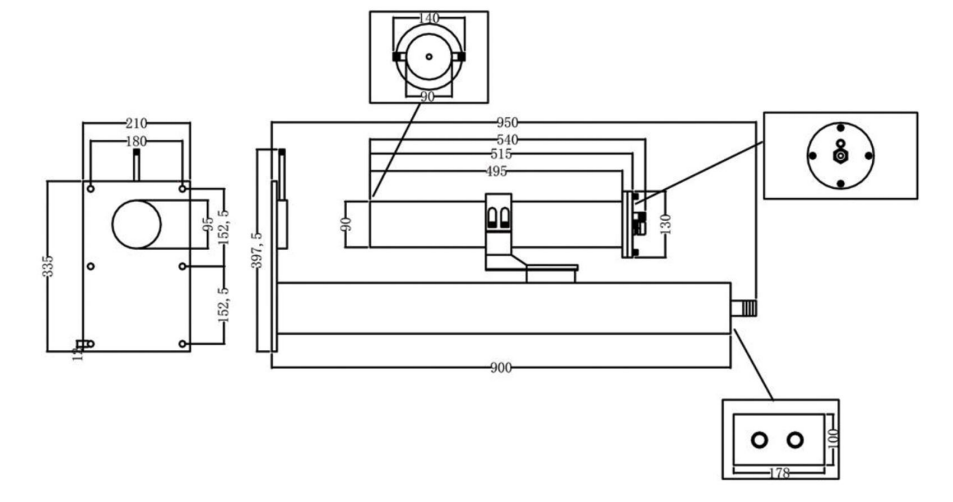

Dimensions
Automatic Retractable Endoscopic High-temperature Resistant Thermal lmaging Camera
