Flange-mounted High-temperature Resistant Air-Water Cooled Camera
Flange-mounted High-temperature Resistant Air-Water Cooled Camera
Specifications
Brand Name :
KAIDUN
Model Number :
KDG011
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000 units/year
Delivery Time :
5-8 week
Packaging Details :
Wooden box packaging / cardboard box packaging
Visible Resolution :
2MP/4MP/6MP/8MP optional
Visible Focal Length :
2.8mm/4mm/6mm/8mm optional
Cooling Method :
Combined Air-Water Cooling for Temperature Reduction
Working Temperature :
-20'C~+100°C/+150°C (with refrigeration tube)
Power :
DC12V/POE optional
Total Weight :
≤6.5kg
Description
Flange-mounted High-temperature Resistant Air-Water Cooled Camera
Key Features
  • The KDG011 is a High-temperature Camera Equipped with an Air-cooled Dome housing
  • Double-layer stainlesssteel air-water cooled shell with an exclusive dual refrigeration design.Circulating water flows through the cooling interlayer to achieve the cooling effect.
Application Environment
Flange-mounted High-temperature Resistant Air-Water Cooled Camera

Metallurgical & Steel Industry

Flange-mounted High-temperature Resistant Air-Water Cooled Camera

Power Generation Industry

Flange-mounted High-temperature Resistant Air-Water Cooled Camera

Petrochemical & Chemical Industry

Flange-mounted High-temperature Resistant Air-Water Cooled Camera

Glass & Ceramic Industry

Flange-mounted High-temperature Resistant Air-Water Cooled Camera

Waste Incineration & Environmental Protection

High-temperature resistant cameras are engineered to operate reliably in extreme thermal environments (typically -40°C to 1200°C, depending on models) where standard cameras fail due to overheating, component degradation, or structural damage.
Main Features
Material 304/316L Stainless Steel
Protection Class IP65
Working Temperature -20℃~+100℃/+150℃(with refrigeration tube)
Video IP
Visible Resolution 2MP/4MP/8MP etc
Visible Focal Length 2.8mm/4mm/6mm/8mm optional
Cooling Method Combined Air-Water Cooling for Temperature Reduction
Comperssed Air Pressure 0.2~0.4Mpa
Compressed Air Flow Rate 0.3~0.7m³/min(0.7 m³/min at an air pressure of 0.4 MPa)
General Function Anti-flicker, Dual Stream, Rotation,Heartbeat, Mirroring, Password-protected Video Masking,Watermarking Technology,IP Address Filtering
Intelligent Alarm Cross-line Detection; Region Intrusion Detection;Motion Detection; Dynamic Analysis Tampering Alarm;Network Cable Disconnection;IP Address Conflict; Unauthorized Access
Voltage DC12V/POE optional
Dimensions 245*Ø200mm
Weight ≤6.5kg
Mounting Flange-mounted etc

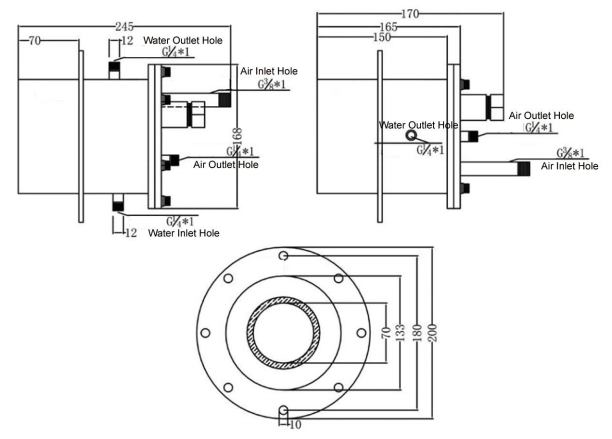

Dimensions
Flange-mounted High-temperature Resistant Air-Water Cooled Camera
