High-temperature ResistantAir-water Cooled Camera
High-temperature ResistantAir-water Cooled Camera
Specifications
Brand Name :
KAIDUN
Model Number :
KDG005
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000 units/year
Delivery Time :
5-8 week
Packaging Details :
Wooden box packaging / cardboard box packaging
Visible Resolution :
2MP/4MP/6MP/8MP optional
Visible Focal Length :
2.8mm/4mm/6mm/8mm optional
IR Range :
50m
Working Temperature :
-20'C~+150°C/+200°C (with refrigeration tube)
Power :
DC12V/POE optional
Total Weight :
≤8kg
Description
High-temperature Resistant Air-water Cooled Camera
Key Features
  • The KDG005 is a High-temperature Camera Equipped with an Air-cooled Dome housing
  • Double-layer Stainless Steel Air-water Cooled Shell, with an ExclusiveDual Refrigeration Design Scheme.
Application Environment
High-temperature ResistantAir-water Cooled Camera

Metallurgical & Steel Industry

High-temperature ResistantAir-water Cooled Camera

Power Generation Industry

High-temperature ResistantAir-water Cooled Camera

Petrochemical & Chemical Industry

High-temperature ResistantAir-water Cooled Camera

Glass & Ceramic Industry

High-temperature ResistantAir-water Cooled Camera

Waste Incineration & Environmental Protection

High-temperature resistant cameras are engineered to operate reliably in extreme thermal environments (typically -40°C to 1200°C, depending on models) where standard cameras fail due to overheating, component degradation, or structural damage.
Main Features
Material Double-Layer 304/316L Stainless Steel
Protection Class IP66
Working Temperature -20℃~+150℃/+200℃(with refrigeration tube)
Working Humidity <95%(non-condensing)
Video IP
Visible Resolution 2MP/4MP/6MP/8MP etc
Visible Focal Length 2.8mm/4mm/6mm/8mm optional
IR Range 50m
Comperssed Air Pressure 0.2~0.4Mpa
Compressed Air Flow Rate 0.3~0.7m³/min(0.7 m³/min at an air pressure of 0.4 MPa)
General Function Anti-flicker, Dual Stream, Rotation,Heartbeat, Mirroring, Password-protected Video Masking,Watermarking Technology,IP Address Filtering
Intelligent Alarm Cross-line Detection; Region Intrusion Detection;Motion Detection; Dynamic Analysis Tampering Alarm;Network Cable Disconnection;IP Address Conflict; Unauthorized Access
Voltage DC12V/POE optional
Dimensions 355*170*180mm
Weight ≤8kg
Mounting Wall-mounted Bracket for Heavy-duty PTZ Camera , Pole Installation, etc.

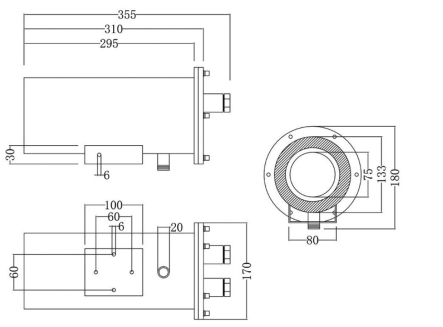

Dimensions
High-temperature ResistantAir-water Cooled Camera
