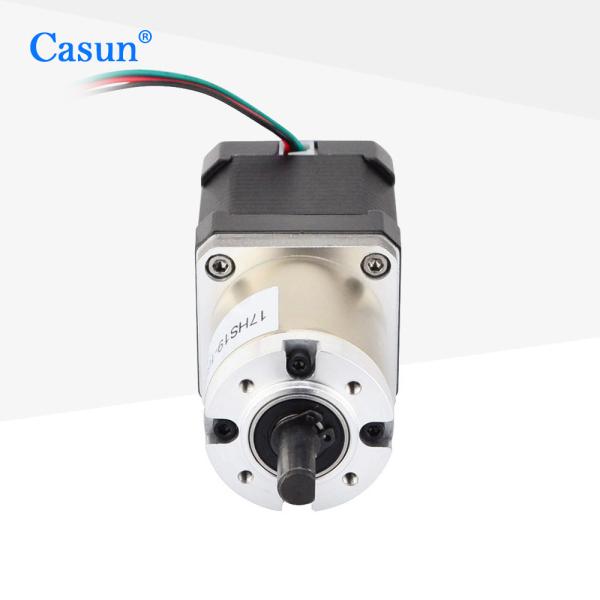

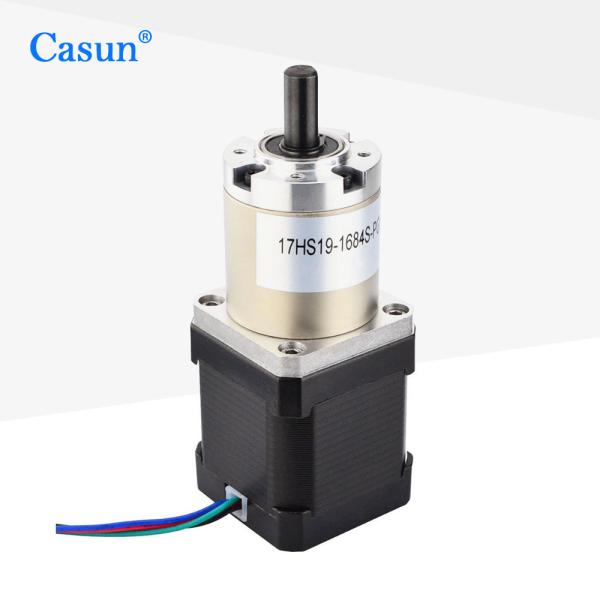

Stepper Motor 48mm body 440mN.m 1.68A for Printers, engraving machines
Stepper Motor 48mm body 440mN.m 1.68A for Printers, engraving machines
Stepper Motor 48mm body 440mN.m 1.68A for Printers, engraving machines
Stepper Motor 48mm body 440mN.m 1.68A for Printers, engraving machines
Stepper Motor 48mm body 440mN.m 1.68A for Printers, engraving machines
Stepper Motor 48mm body 440mN.m 1.68A for Printers, engraving machines
Stepper Motor 48mm body 440mN.m 1.68A for Printers, engraving machines
Stepper Motor 48mm body 440mN.m 1.68A for Printers, engraving machines
Specifications
Brand Name :
CASUN
Model Number :
42SHD4419-100G
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
1pcs-10pcs
Price :
$4.54/pcs - $6.34/pcs
Payment Terms :
L/C, D/A, T/T
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 workdays
Packaging Details :
Carton:38x29xc14m
Step angle :
1.8degree
Phase :
2
Rated voltage :
2.77V
Rate current :
1.68A
Holding torque :
440mN.m
Customized :
The motor can be designed &manufactured with customized request.
Description
Stepper Motor 48mm body 440mN.m 1.68A for Printers, Engraving Machines
Product Overview

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Key Features
  • Bespoke engineering solutions available
  • OEM/ODM contract production capabilities
  • Custom services offered
  • Established in China for 12 years with over 800 customers served
  • Ten-year warranty for purchase confidence
Dimensions
Stepper Motor 48mm body 440mN.m 1.68A for Printers, engraving machines
Motor Specifications
Step Angle 1.8°
Frame Size 48 mm
Number of Phase 2 Phase
Rated Current 1.68 A
Resistance 1.65 Ohm
Inductance 2.8 mH
Rotor Inertia 38 g-cm²
Motor Weight 0.55 kg
Connection Bipolar
Operating Specifications
Maximum Temperature 80°C maximum
Ambient Temperature -20°C to 50°C
Storage Temperature -20°C to 100°C
Humidity Range 85% or less, non-condensing
Magnet Wire Insulation Class B 130°C
Insulation Resistance 100M Ohm at 500 VDC
Dielectric Strength 500 VDC for 1 min
Shaft Radial Play 0.02 Max. (450g-load)
Shaft Axial Play 0.08 Max. (450g-load)
Max. Radial Force 28N (20mm from the flange)
Max. Axial Force 10N
Customization Services

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, travel, linear travel per step, and more.

Frequently Asked Questions
Who are we?
We are based in Guangdong, China, established in 2011. We serve domestic and international markets including Western Europe, North America, and Eastern Asia. Our office employs 51-100 people.
How can we guarantee quality?
We provide pre-production samples before mass production and conduct final inspection before shipment.
What can you buy from us?
Stepper Motors and BLDC Motors.
Why should you buy from us instead of other suppliers?
We specialize in producing and selling stepper motors for more than 11 years.
What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery

Accepted Payment Currency: USD, CNY

Accepted Payment Type: T/T, L/C, D/P D/A, PayPal

Languages Spoken: English, Chinese, Japanese

Please click the "Get a quote" button below to tell us your requirements.
