Gear reduction ratio 99.5/1 Planetary Stepper Motor 0.44mN.m NEMA 17 for Cnc Robot Arm
Gear reduction ratio 99.5/1 Planetary Stepper Motor 0.44mN.m NEMA 17 for Cnc Robot Arm
Gear reduction ratio 99.5/1 Planetary Stepper Motor 0.44mN.m NEMA 17 for Cnc Robot Arm
Gear reduction ratio 99.5/1 Planetary Stepper Motor 0.44mN.m NEMA 17 for Cnc Robot Arm
Gear reduction ratio 99.5/1 Planetary Stepper Motor 0.44mN.m NEMA 17 for Cnc Robot Arm
Gear reduction ratio 99.5/1 Planetary Stepper Motor 0.44mN.m NEMA 17 for Cnc Robot Arm
Gear reduction ratio 99.5/1 Planetary Stepper Motor 0.44mN.m NEMA 17 for Cnc Robot Arm
Gear reduction ratio 99.5/1 Planetary Stepper Motor 0.44mN.m NEMA 17 for Cnc Robot Arm
Gear reduction ratio 99.5/1 Planetary Stepper Motor 0.44mN.m NEMA 17 for Cnc Robot Arm
Gear reduction ratio 99.5/1 Planetary Stepper Motor 0.44mN.m NEMA 17 for Cnc Robot Arm
Specifications
Brand Name :
Casun
Model Number :
17HS19-1684S-PG100
Certification :
CE,ROHS,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$16.49-$24.14
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Holding Torque :
440mN.m
Lead Wire :
4
Length :
48mm
Rated Current :
1.68A
Rated Voltage :
12V
Gear reduction ratio :
99.5：1
Customized :
The motor can be designed &manufactured with customized request.
Description

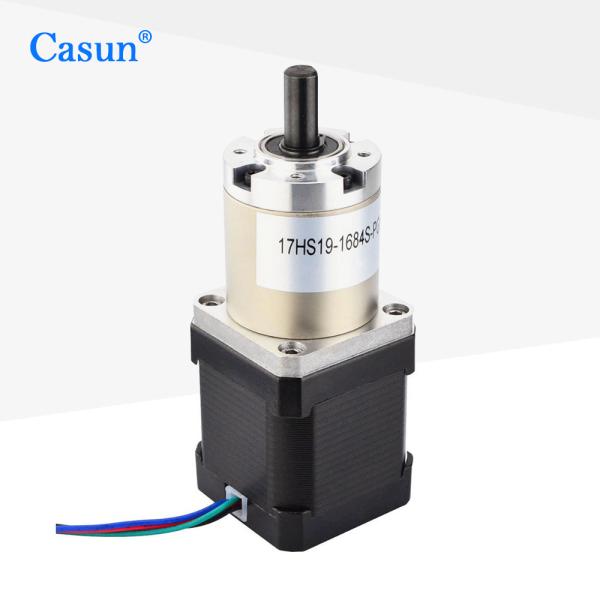

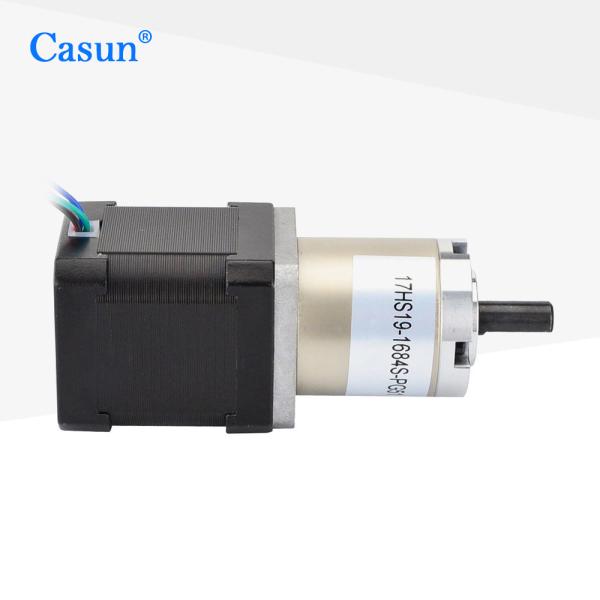

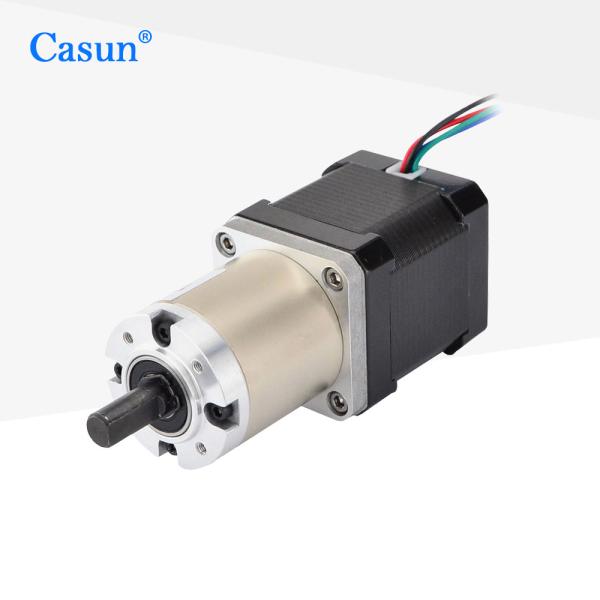

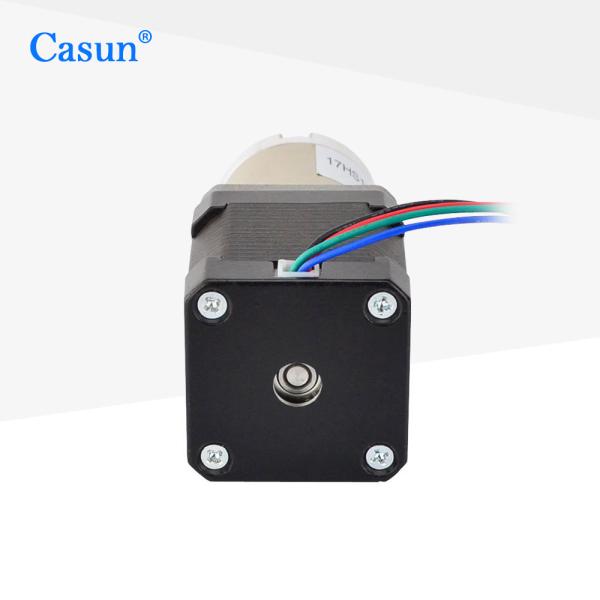

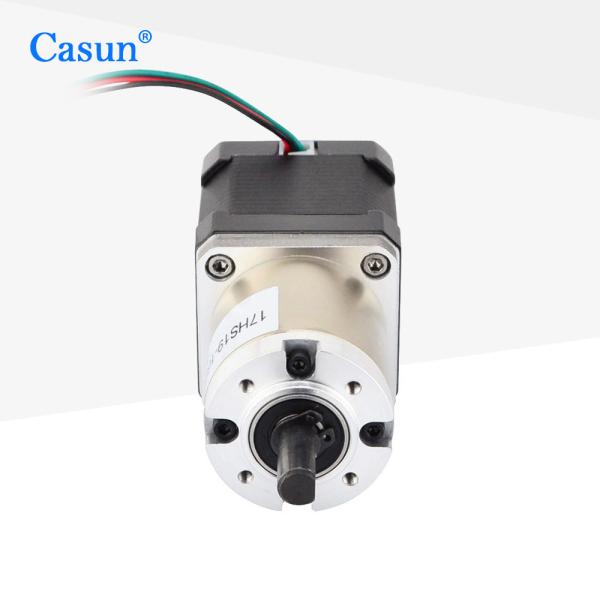

Gear Reduction Ratio 99.5/1 Planetary Stepper Motor 0.44mN.m NEMA 17 for CNC Robot Arm
Stepper motors can be programmed to achieve complex motion control, providing flexibility for automation and robotics technology.
The deceleration stepper motor can adjust its speed by changing the input pulse frequency, adapting to different work requirements and providing flexible operation modes.
Key Features
  • Bipolar or unipolar versions available
  • Custom services and contract manufacturing available - dealers wanted!
  • Multiple international certifications for high-tech and electronic industry equipment
  • Customization services available
  • Customizations on request
Dimensions
Gear reduction ratio 99.5/1 Planetary Stepper Motor 0.44mN.m NEMA 17 for Cnc Robot Arm
Motor Specifications
Step Angle1.8°
Frame Size42 mm
Number of Phase2 Phase
Rated Current1.68 A
Holding Torque440 mN.m
Resistance1.65 Ω
Inductance2.8 mH
Rotor Inertia38 g-cm²
Motor Weight0.56 kg
Gear Reduction Ratio99.5:1
ConnectionBipolar
Operating Specifications
Motor
Step Angle1.8°
Maximum Temperature80°C maximum
Ambient Temperature-20°C to 50°C
Storage Temperature-20°C to 100°C
Humidity Range85% or less, non-condensing
Magnet Wire InsulationClass B 130°C
Insulation Resistance100M Ohm at 500 VDC
Dielectric Strength500 VDC for 1 min
Gear Box
Housing MaterialMetal
Bearing at OutputBall Bearings
Max. Radial Load (12mm from flange)≤80N
Max. Shaft Axial Load≤30N
Radial Play of Shaft (near to Flange)≤0.06mm
Axial Play of Shaft≤0.3mm
Backlash at No-load1.5°
Submodels
Motor Length Length of Gearbox Ratio Efficiency
34 mm27.2 mm3.7190%
40 mm5.1835 mm
48 mm13.76
60 mm19.2
26.842.7 mm51
7170%
99.5
139
Customization Options
If our standard motor cannot meet your needs, we can customize the motor according to your requirements.
Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
Encoder
Gear reduction ratio 99.5/1 Planetary Stepper Motor 0.44mN.m NEMA 17 for Cnc Robot Arm
Brake
Gear reduction ratio 99.5/1 Planetary Stepper Motor 0.44mN.m NEMA 17 for Cnc Robot Arm
Gearbox
Gear reduction ratio 99.5/1 Planetary Stepper Motor 0.44mN.m NEMA 17 for Cnc Robot Arm
Shaft
Gear reduction ratio 99.5/1 Planetary Stepper Motor 0.44mN.m NEMA 17 for Cnc Robot Arm
