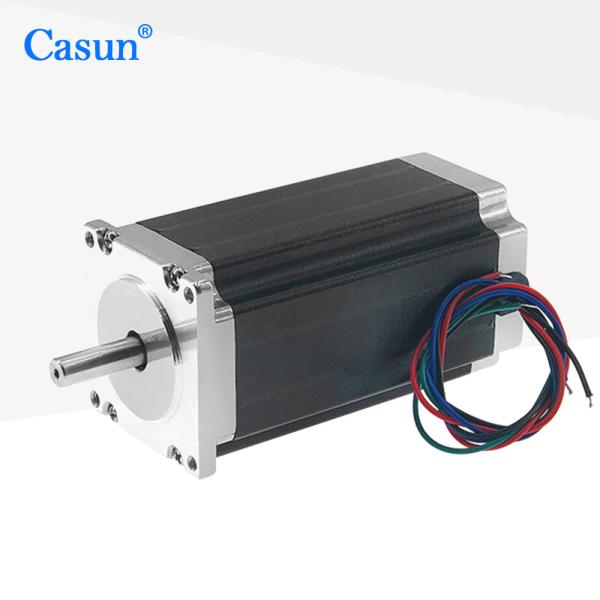

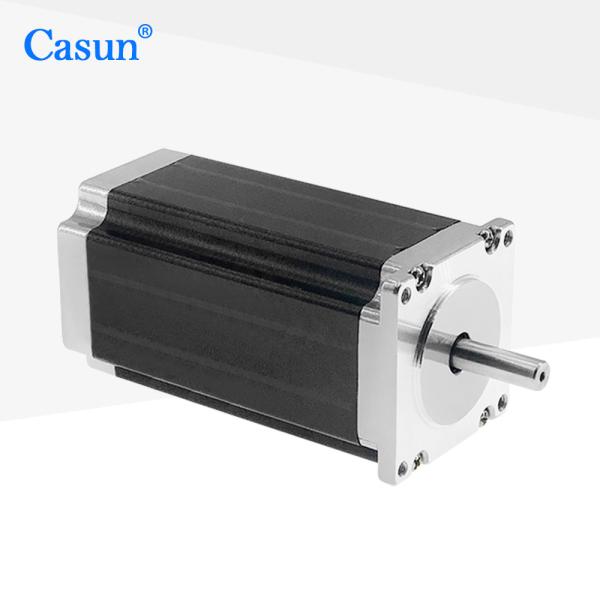

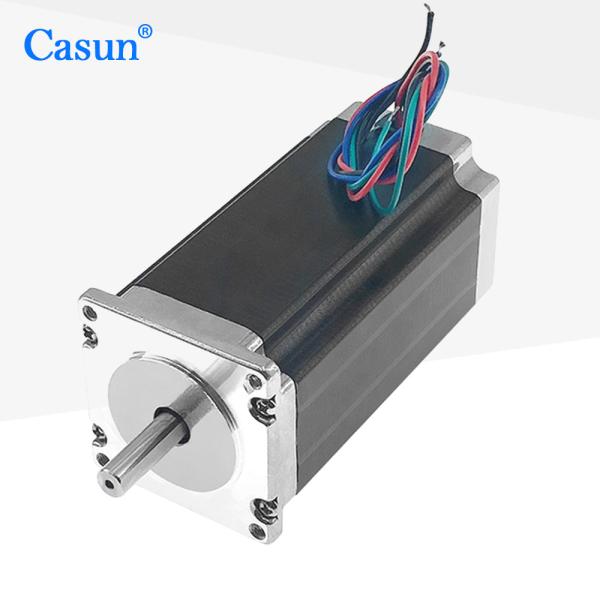

57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23
57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23
57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23
57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23
57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23
57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23
57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23
57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23
57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23
57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23
Specifications
Brand Name :
Casun
Model Number :
57SHD4934-20B
Certification :
CE,ROHS,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$3.14-$5
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
3400mN.m
Current :
3.0A
Motor Length :
100mm
Shaft :
Milling flat Shaft 20mm Length
Customized :
The motor can be designed &manufactured with customized request.
Description
57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23
Due to its simple control method and structure, the production cost of stepper motors is relatively low. The absence of a commutator in stepper motors reduces mechanical wear, improving the motor's lifespan and reliability.
Key Features
  • High accuracy and torque
  • Ten-year warranty for complete peace of mind
  • High torque and precision performance
  • Tailored solutions and OEM collaborations available
  • 12 years of manufacturing experience with over 800 clients served
Motor Specifications
Step Angle 1.8°
Frame Size 57 mm
Number of Phase 4 Phase
Rated Current 3.0 A
Holding Torque 3400 mN.m
Resistance 2.8 ohm
Inductance 11 mH
Rotor Inertia 650 g-cm²
Motor Weight 1.3 kg
Number of Leads 4
Connection Bipolar
Operating Specifications
Step Angle 1.8°
Maximum Temperature 80°C maximum
Ambient Temperature -20°C to 50°C
Storage Temperature -20°C to 100°C
Humidity Range 85% or less, non-condensing
Magnet Wire Insulation Class B 130°C
Insulation Resistance 100M Ohm at 500 VDC
Dielectric Strength 500 VDC for 1 min
Visual Reference
57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23
57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23
Available Models
Model Holding Torque Step Angle Length Shaft Type Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A
Customization Available
If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.
Available Options
57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23
Encoder
57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23
Brake
57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23
Gearbox
57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23
Shaft
Please click the "Get a quote" button below to tell us your requirements.
