NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 83mm Body High Torque 2.8A For Textile Machine
NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 83mm Body High Torque 2.8A For Textile Machine
NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 83mm Body High Torque 2.8A For Textile Machine
NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 83mm Body High Torque 2.8A For Textile Machine
NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 83mm Body High Torque 2.8A For Textile Machine
NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 83mm Body High Torque 2.8A For Textile Machine
NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 83mm Body High Torque 2.8A For Textile Machine
NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 83mm Body High Torque 2.8A For Textile Machine
NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 83mm Body High Torque 2.8A For Textile Machine
NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 83mm Body High Torque 2.8A For Textile Machine
Specifications
Brand Name :
Casun
Model Number :
57SHD0914-21BH
Certification :
CE,ROHS,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$3.14-$5
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
2200mN.m
Current :
2.8A
Motor Length :
82.8mm
Shaft :
Milling flat Shaft 21mm Length
Customized :
The motor can be designed &manufactured with customized request.
Description
NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 83mm Body High Torque 2.8A For Textile Machine

The stepper motor does not experience speed fluctuations at low speeds, ensuring the stability and reliability of the system. NEMA 23 stepper motors typically have high torque output and can meet the load requirements of many applications.

Key Features
  • High accuracy and torque
  • We specialize in custom services and contract manufacturing
  • Boasting high torque and precision
  • Dealers wanted!
  • Established in China for 12 years, serving over 800 customers
Motor Specifications
Step Angle 1.8°
Frame Size 57 mm
Number of Phase 4 Phase
Rated Current 2.8 A
Holding Torque 2200 mN.m
Resistance 1.1 ohm
Inductance 2.6 mH
Rotor Inertia 520 g-cm²
Motor Weight 1.3 kg
Number of Leads 4
Connection Bipolar

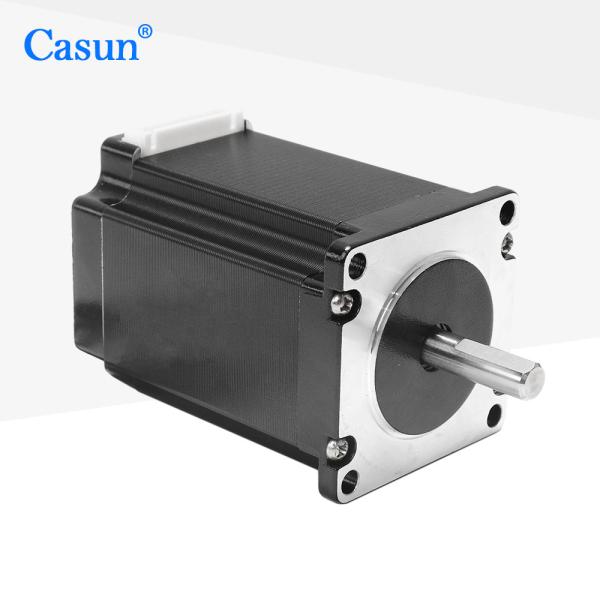

Appearance
NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 83mm Body High Torque 2.8A For Textile Machine

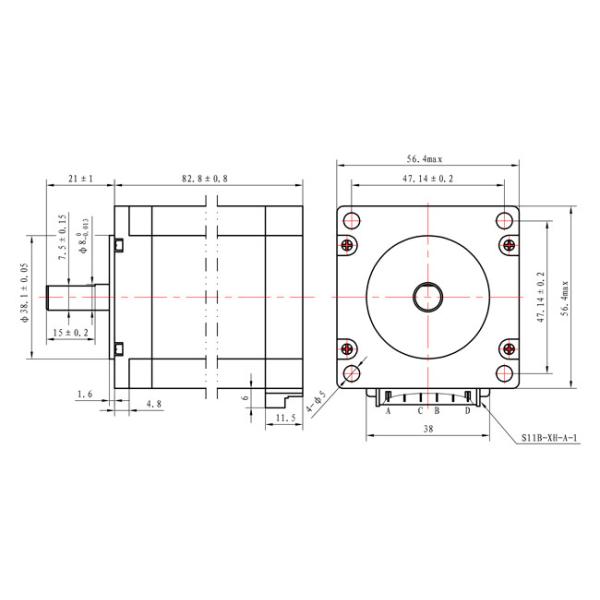

Dimensions
NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 83mm Body High Torque 2.8A For Textile Machine
Operating Specifications
Step Angle 1.8°
Maximum Temperature 80°C maximum
Ambient Temperature -20°C to 50°C
Storage Temperature -20°C to 100°C
Humidity Range 85% or less, non-condensing
Magnet Wire Insulation Class B 130 deg C
Insulation Resistance 100M Ohm at 500 VDC
Dielectric Strength 500 VDC for 1 min
Submodels
Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A
Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder
NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 83mm Body High Torque 2.8A For Textile Machine
Brake
NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 83mm Body High Torque 2.8A For Textile Machine
Gearbox
NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 83mm Body High Torque 2.8A For Textile Machine
Shaft
NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 83mm Body High Torque 2.8A For Textile Machine

Please click the "Get a quote" button below to tell us your requirements.
