Specifications
Brand Name :
Casun
Model Number :
F57SHD4816-21B
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
5PC
Price :
$8.1~$9.38
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
10000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:38x29x18cm
Holding Torque :
2000 mN.m
Voltage :
2.85V
Current :
3A
Body Length :
76mm
Weight :
1 kg
Phase Resistance :
0.95 ohm ±10% （At 20℃）
Shaft Length :
20 mm
Phase :
2
Insulation Class :
Class B
Description
Nema 23 Hybrid Stepper Motor 2N.m High Tough 76mm Body
Designed for demanding industrial applications, the Casun Nema 23 Hybrid Stepper Motor delivers exceptional 2N.m torque in a compact 76mm body, making it ideal for CNC machines, automated equipment, and high-precision motion systems. With CE & RoHS certification, this motor ensures both performance and compliance for global markets.
Key Features
  • Bipolar or unipolar versions available
  • Hybrid stepper construction
  • Available in single- or double-shaft versions
  • CE and RoHS approved
  • Customizations on request

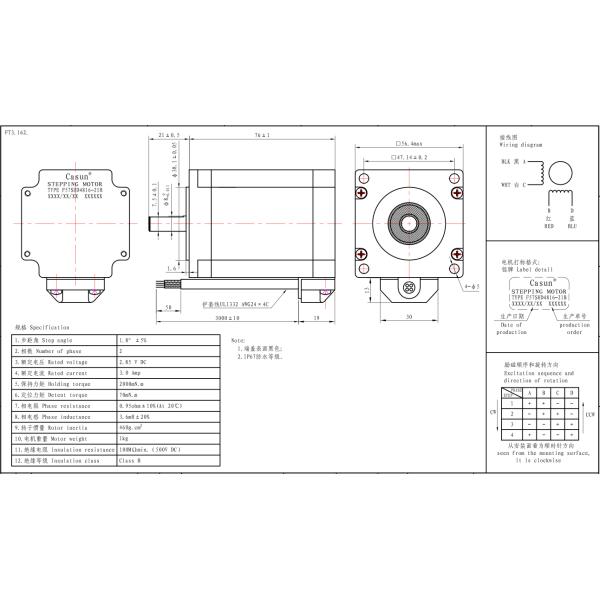

Dimensions
Nema 23 Hybrid Stepper Motor 2N.m High Tough 76mm Body 2.85V Casun Motor CE RoHS for CNC
Motor Specifications
Step Angle1.8°
Frame Size76 mm
Number of Phase2 Phase
Rated Current3 Amp
Holding Torque2000 mN.m
Resistance0.95 ohm
Inductance3.6 mH
Rotor Inertia460 g.cm²
Motor Weight1 kg
ConnectionBipolar
Operating Specifications
Motor Operating Conditions:
Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20°C to 50°C
Storage Temperature: -20°C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130°C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Encoder Specifications:
Voltage: 5V
Output: A + A - B + B - Z + Z -

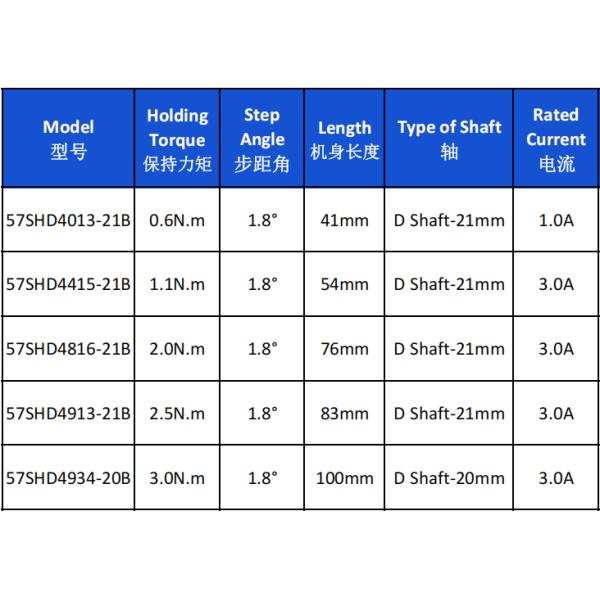

Submodels
Nema 23 Hybrid Stepper Motor 2N.m High Tough 76mm Body 2.85V Casun Motor CE RoHS for CNC
Customization Options
If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.
Available Options
Nema 23 Hybrid Stepper Motor 2N.m High Tough 76mm Body 2.85V Casun Motor CE RoHS for CNC
Encoder
Nema 23 Hybrid Stepper Motor 2N.m High Tough 76mm Body 2.85V Casun Motor CE RoHS for CNC
Brake
Nema 23 Hybrid Stepper Motor 2N.m High Tough 76mm Body 2.85V Casun Motor CE RoHS for CNC
Gearbox
Nema 23 Hybrid Stepper Motor 2N.m High Tough 76mm Body 2.85V Casun Motor CE RoHS for CNC
Shaft
Please click the "Get a quote" button below to tell us your requirements.
