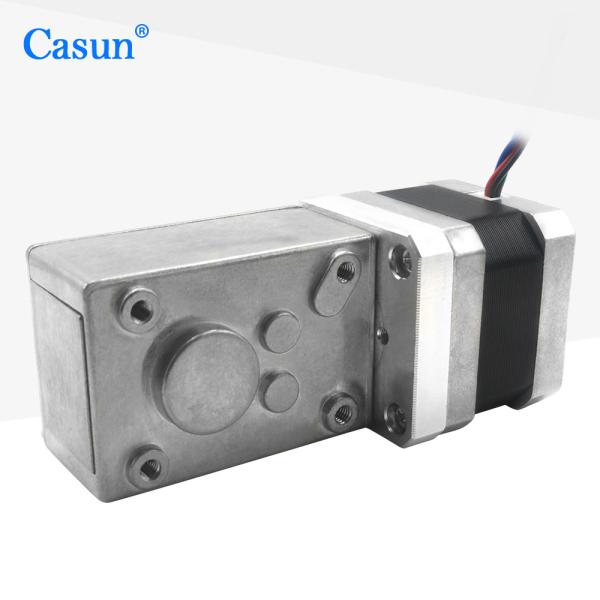

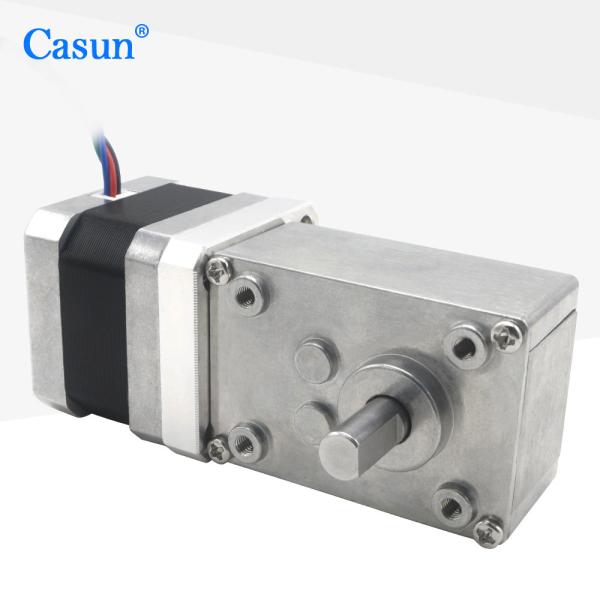

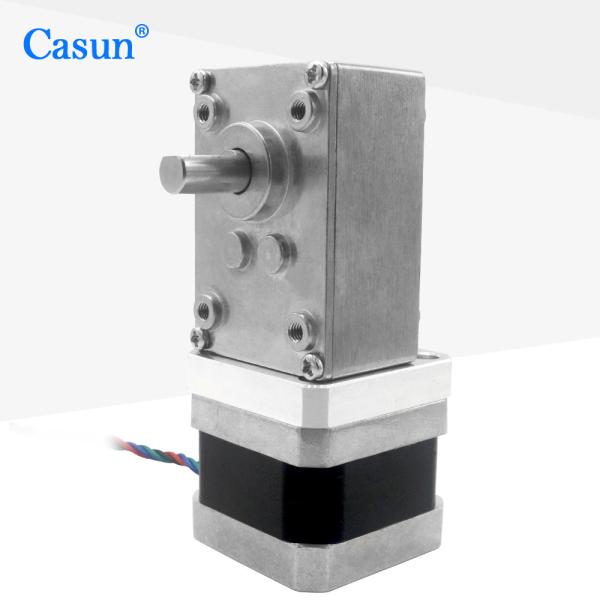

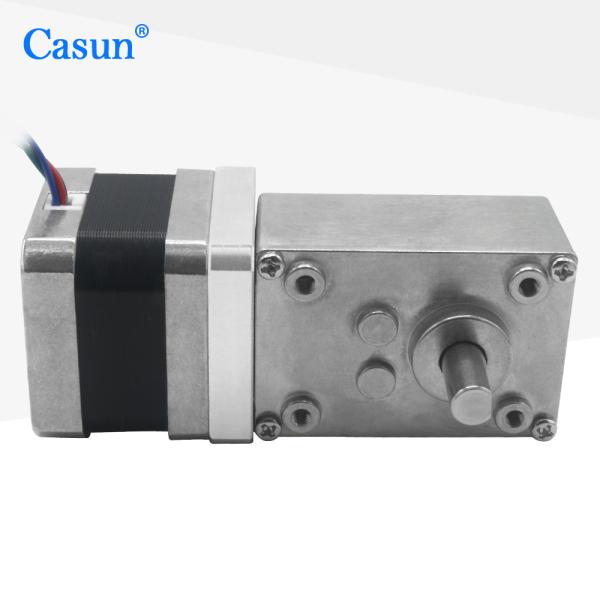

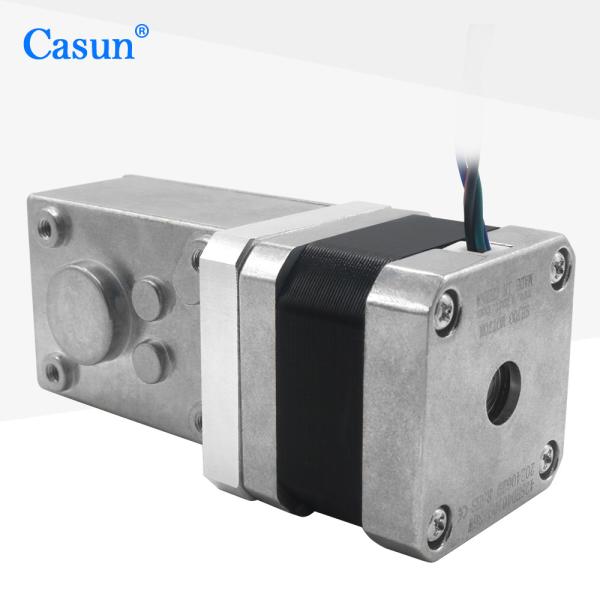

Casun Nema 17 Hybrid Stepper Motor with Worm gear reducer 270mN.m 2.93V 36/1 Ratio
Casun Nema 17 Hybrid Stepper Motor with Worm gear reducer 270mN.m 2.93V 36/1 Ratio
Casun Nema 17 Hybrid Stepper Motor with Worm gear reducer 270mN.m 2.93V 36/1 Ratio
Casun Nema 17 Hybrid Stepper Motor with Worm gear reducer 270mN.m 2.93V 36/1 Ratio
Casun Nema 17 Hybrid Stepper Motor with Worm gear reducer 270mN.m 2.93V 36/1 Ratio
Casun Nema 17 Hybrid Stepper Motor with Worm gear reducer 270mN.m 2.93V 36/1 Ratio
Casun Nema 17 Hybrid Stepper Motor with Worm gear reducer 270mN.m 2.93V 36/1 Ratio
Casun Nema 17 Hybrid Stepper Motor with Worm gear reducer 270mN.m 2.93V 36/1 Ratio
Casun Nema 17 Hybrid Stepper Motor with Worm gear reducer 270mN.m 2.93V 36/1 Ratio
Casun Nema 17 Hybrid Stepper Motor with Worm gear reducer 270mN.m 2.93V 36/1 Ratio
Specifications
Brand Name :
Casun
Model Number :
42SHD40109-36W
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
5PC
Price :
$45~$47
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
10000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:38x29x18cm
Phase :
2
Insulation Class :
Class B
Phase Resistance :
2.2 ohm ±20%
Current :
1.33A
Voltage :
2.93V
Body Length :
34 mm
Holding Torque :
270 mN.m
Weight :
1 kg
Shaft Length :
15 mm
Description

Casun Nema 17 Hybrid Stepper Motor with Worm Gear Reducer 270 mN.m 2.93 V 36:1 Ratio

Ideal for CNC machines, 3D printers, robotics, automation systems, and other precision motion control projects, this hybrid stepper motor offers excellent positioning accuracy and durability. The worm gear design provides self-locking capability, preventing back-driving and ensuring stability in static or dynamic applications.

Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Casun Nema 17 Hybrid Stepper Motor with Worm gear reducer 270mN.m 2.93V 36/1 Ratio

Motor Specifications

Step Angel

 1.8°

Frame Size

 34 mm

Number of Phase

 2 Phase

Rated Current

 1.33 Amp

Holding Torque

 270 mN.m

Resistance

 2.2 ohm

Inductance

 3.5 mH

Rotor Inertia

 30 g.cm²

Motor weight

 1 kg

Connection

 Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Casun Nema 17 Hybrid Stepper Motor with Worm gear reducer 270mN.m 2.93V 36/1 Ratio

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft
