Specifications
Brand Name :
Casun
Model Number :
B20SHD4351-C19P
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
1PC
Price :
$7~$7.53
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:38x29x18cm
Phase :
2
Insulation Class :
Class B
Phase Resistance :
5.1ohms
Current :
0.5A
Voltage :
2.55V
Body Length :
28 mm
Holding Torque :
110 mN.m
Weight :
0.1 kg
Shaft Length :
21 mm
Description

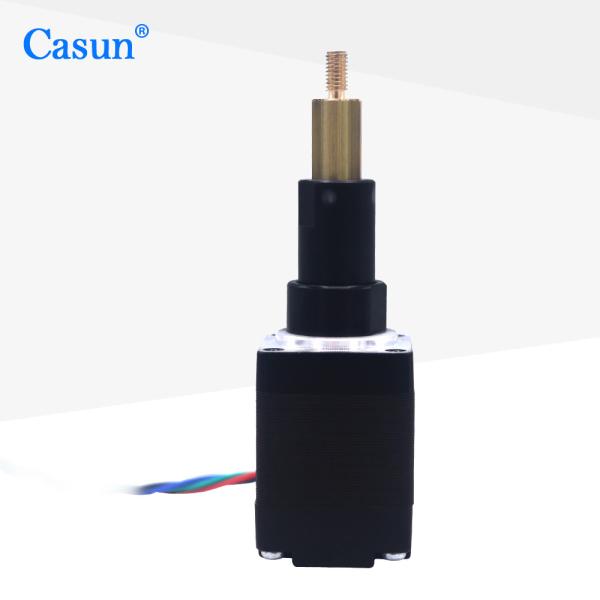

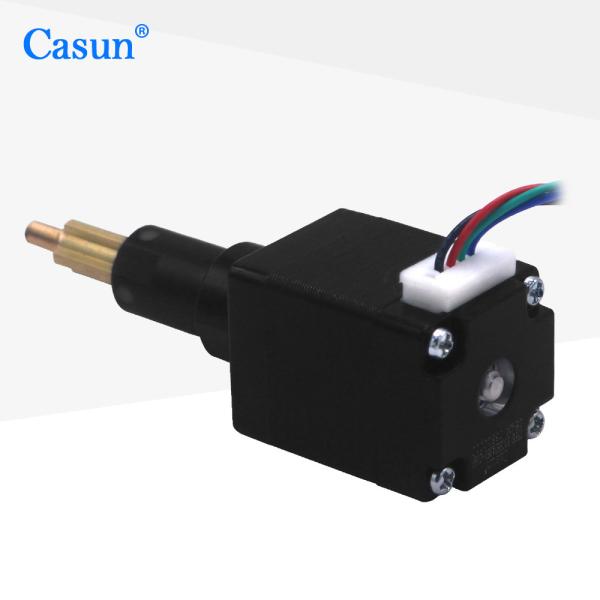

Casun Nema 8 Linear Stepper Motor Hybrid Technology 2.55V 0.8kg at 600pps

The Casun Nema 8 Linear Stepper Motor features hybrid technology, operating at 2.55V and delivering 0.8kg of force at 600pps. Ideal for compact, high-precision applications, it ensures smooth linear motion, reliability, and efficiency in automation and small-scale systems.

Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single- or double-shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Nema 8 Linear Stepper Motor Hybrid Technology 2.55V 0.8kg At 600pps

Motor Specifications

Step Angel

 1.8°

Frame Size

 20 mm

Number of Phase

 2 Phase

Rated Current

 0.5 Amp

Holding Torque

 0.8 kg at 600 pps

Resistance

 5.1 ohm

Inductance

 1.5 mH

Rotor Inertia

 2 g.cm²

Motor weight

 0.1 kg

Connection

 Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Model Holding Torque Step Angle Length Type of Shaft Rated Current
20SHD0304 18 mN.m 1.8° 28 mm Round Shaft-20mm 0.6 A
20SHD0250 32 mN.m 1.8° 38 mm Round Shaft-20mm 0.6 A
20SHD0101

30 mN.m

 1.8° 42 mm Round Shaft-20mm 0.8A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft
