Stepper Motor 42mm body 360mN.m 1.5A for image scanners and precision positioning tools
Stepper Motor 42mm body 360mN.m 1.5A for image scanners and precision positioning tools
Stepper Motor 42mm body 360mN.m 1.5A for image scanners and precision positioning tools
Stepper Motor 42mm body 360mN.m 1.5A for image scanners and precision positioning tools
Stepper Motor 42mm body 360mN.m 1.5A for image scanners and precision positioning tools
Stepper Motor 42mm body 360mN.m 1.5A for image scanners and precision positioning tools
Stepper Motor 42mm body 360mN.m 1.5A for image scanners and precision positioning tools
Stepper Motor 42mm body 360mN.m 1.5A for image scanners and precision positioning tools
Stepper Motor 42mm body 360mN.m 1.5A for image scanners and precision positioning tools
Stepper Motor 42mm body 360mN.m 1.5A for image scanners and precision positioning tools
Specifications
Brand Name :
CASUN
Model Number :
P35SHD0817-150NT
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
1pcs-10pcs
Price :
$4.54/pcs - $6.34/pcs
Payment Terms :
L/C, D/A, T/T
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 workdays
Packaging Details :
Carton:38x29xc14m
Step angle :
1.8degree
Phase :
2
Rated voltage :
4.8V
Rate current :
1.5A
Holding torque :
360mN.m
Customized :
The motor can be designed &manufactured with customized request.
Description

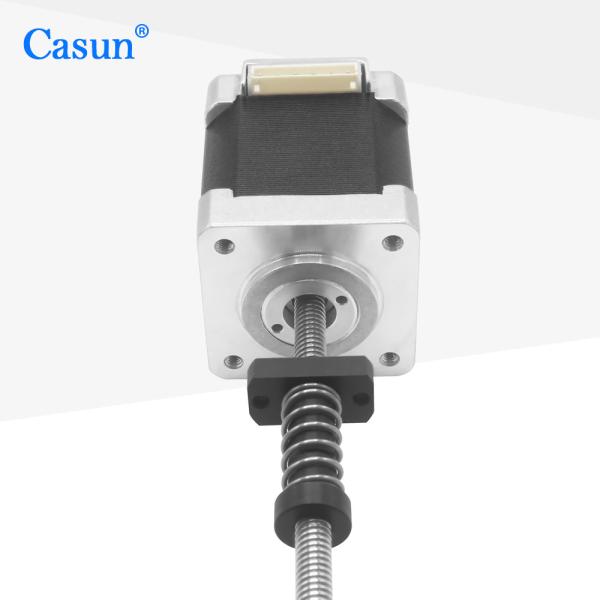

Stepper Motor 42mm Body 360mN.m 1.5A for Image Scanners and Precision Positioning Tools

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Key Features
  • Structured information hierarchy for better readability
  • Emphasized global reach and technical capabilities with custom services
  • Established in China for 12 years with over 800 customers served
  • Ten-year warranty for purchase confidence
Dimensions
Stepper Motor 42mm body 360mN.m 1.5A for image scanners and precision positioning tools
Motor Specifications
Step Angle 1.8°
Frame Size 42 mm
Number of Phase 2 Phase
Rated Current 1.5 A
Resistance 3.2 Ohm
Inductance 4.5 mH
Rotor Inertia 57 g-cm²
Motor Weight 0.24 kg
Connection Bipolar
Operating Specifications
  • Step Angle: 1.8°
  • Maximum Temperature: 80°C maximum
  • Ambient Temperature: -20°C to 50°C
  • Storage Temperature: -20°C to 100°C
  • Humidity Range: 85% or less, non-condensing
  • Magnet Wire Insulation: Class B 130°C
  • Insulation Resistance: 100M Ohm at 500 VDC
  • Dielectric Strength: 500 VDC for 1 min
  • Shaft Radial Play: 0.02Max. (450g-load)
  • Shaft Axial Play: 0.08Max. (450g-load)
  • Max. radial force: 28N (20mm from the flange)
  • Max. axial force: 10N
Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, travel, linear travel per step, and more.

Frequently Asked Questions
Who are we?
We are based in Guangdong, China, established in 2011. We serve Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), and other global markets. Our office has 51-100 employees.
How can we guarantee quality?
Always provide a pre-production sample before mass production and conduct final inspection before shipment.
What can you buy from us?
Stepper Motor, BLDC Motor
Why should you buy from us instead of other suppliers?
We specialize in producing and selling stepper motors for more than 11 years.
What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery
Accepted Payment Currency: USD, CNY
Accepted Payment Type: T/T, L/C, D/P D/A, PayPal
Languages Spoken: English, Chinese, Japanese
