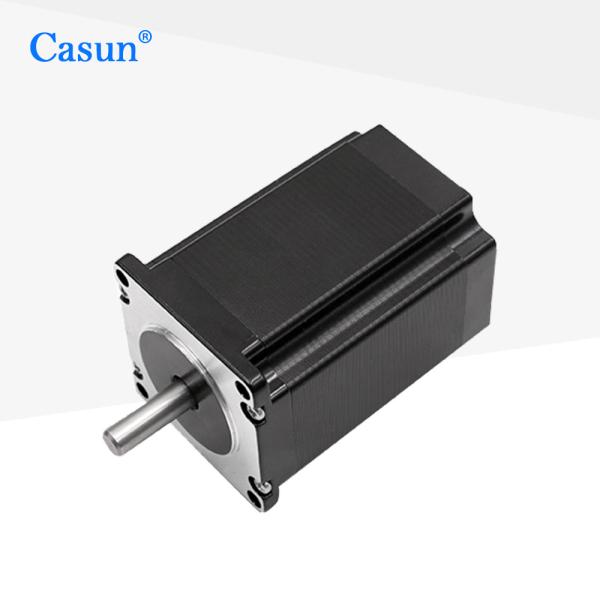

1.8 Deg 16Ncm 1A 57x57x76mm 4 Wires Stepper Motor Nema 23 For Mechanical Automation
1.8 Deg 16Ncm 1A 57x57x76mm 4 Wires Stepper Motor Nema 23 For Mechanical Automation
1.8 Deg 16Ncm 1A 57x57x76mm 4 Wires Stepper Motor Nema 23 For Mechanical Automation
1.8 Deg 16Ncm 1A 57x57x76mm 4 Wires Stepper Motor Nema 23 For Mechanical Automation
1.8 Deg 16Ncm 1A 57x57x76mm 4 Wires Stepper Motor Nema 23 For Mechanical Automation
1.8 Deg 16Ncm 1A 57x57x76mm 4 Wires Stepper Motor Nema 23 For Mechanical Automation
1.8 Deg 16Ncm 1A 57x57x76mm 4 Wires Stepper Motor Nema 23 For Mechanical Automation
1.8 Deg 16Ncm 1A 57x57x76mm 4 Wires Stepper Motor Nema 23 For Mechanical Automation
Specifications
Brand Name :
Casun
Model Number :
57SHD4801-20H
Certification :
CE,ROHS,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$3.14-$5
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
1.75N.m
Current :
0.8A
Motor Length :
76mm
Shaft :
Round Shaft 20mm Length
Customized :
The motor can be designed &manufactured with customized request.
Description

1.8 Deg 16Ncm 1A 57x57x76mm 4 Wires Stepper Motor Nema 23 For Mechanical Automation

The NEMA 23 stepper motor is highly efficient when operating under light loads and can provide good performance even at low currents.

Mechanical automation, aerospace, medical equipment, robotics technology

Features:

  • High torque and high precision

  • Specializing in delivering personalized services is our area of expertise

  • We are experts in drivetrain solutions

  • Dealers are actively sought after

  • With 12 years of operations in China, we have successfully served more than 800 customers

Motor Specifications

Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

0.8 A

Holding Torque

1.75 N.m

Resistance

12 ohm

Inductance

48 mH

Rotor Inertia

460 g-cm²

Motor weight1

1 kg

Number of leads

4

Connection

Bipolar

Appearance

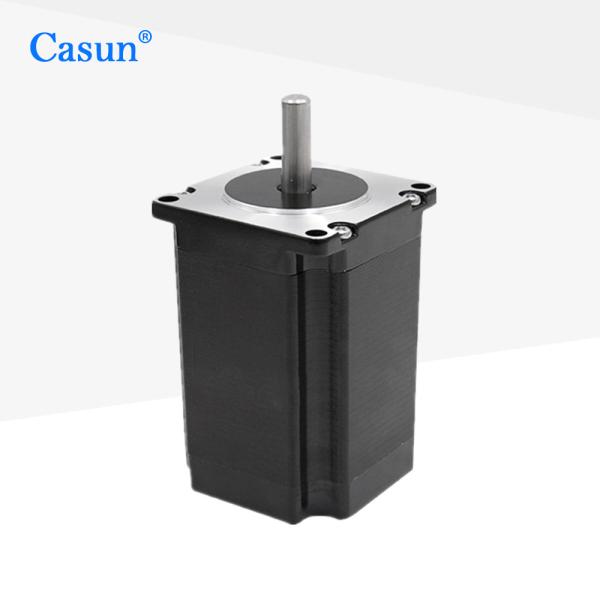

1.8 Deg 16Ncm 1A 57x57x76mm 4 Wires Stepper Motor Nema 23 For Mechanical Automation

Dimensions

1.8 Deg 16Ncm 1A 57x57x76mm 4 Wires Stepper Motor Nema 23 For Mechanical Automation


Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
1.8 Deg 16Ncm 1A 57x57x76mm 4 Wires Stepper Motor Nema 23 For Mechanical Automation 1.8 Deg 16Ncm 1A 57x57x76mm 4 Wires Stepper Motor Nema 23 For Mechanical Automation 1.8 Deg 16Ncm 1A 57x57x76mm 4 Wires Stepper Motor Nema 23 For Mechanical Automation 1.8 Deg 16Ncm 1A 57x57x76mm 4 Wires Stepper Motor Nema 23 For Mechanical Automation

Please click the "Get a quote" button below to tell us your requirements.
