ECartex EagleBurgmann Mechanical Seal ANSI CARTEX DN Face Mechanical Seal
ECartex EagleBurgmann Mechanical Seal ANSI CARTEX DN Face Mechanical Seal
ECartex EagleBurgmann Mechanical Seal ANSI CARTEX DN Face Mechanical Seal
ECartex EagleBurgmann Mechanical Seal ANSI CARTEX DN Face Mechanical Seal
ECartex EagleBurgmann Mechanical Seal ANSI CARTEX DN Face Mechanical Seal
ECartex EagleBurgmann Mechanical Seal ANSI CARTEX DN Face Mechanical Seal
ECartex EagleBurgmann Mechanical Seal ANSI CARTEX DN Face Mechanical Seal
ECartex EagleBurgmann Mechanical Seal ANSI CARTEX DN Face Mechanical Seal
ECartex EagleBurgmann Mechanical Seal ANSI CARTEX DN Face Mechanical Seal
ECartex EagleBurgmann Mechanical Seal ANSI CARTEX DN Face Mechanical Seal
Specifications
Delivery Time :
15 working days
Seal face product side :
Silicon carbide DiamondFace® (Q15)
Seat atmospheric side :
Silicon carbide (Q1)
Model Number :
eCartex ANSI Dual seals
Temperature :
t= -40 °C ... 220 °C (-40 °F ... 428 °F)
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Recommended supply medium :
max. ISO VG 5
Springs :
Hastelloy® C-4 (M)
Metal parts :
CrNiMo steel (G), CrNiMo cast steel (G)
MOQ :
1pc
Packaging Details :
Carton
Pump startup :
Δp (p3 - p1)max = 25 bar (363 PSI) allowed
Seat product side :
Silicon carbide DiamondFace® (Q15)
Supply Ability :
1000000/Month
Axial movement :
±1.0 mm, d1 ≥75 mm ±1.5 mm
Secondary seals :
FKM (V), EPDM (E), FFKM (K), Perfluorcarbon rubber/PTFE (U1)
Certification :
ISO9001
Sliding face material combination BQ1 Pressure :
p1 = 25 bar (363 PSI)
Seal face atmospheric side :
Carbon graphite resin impregnated (B)
Place of Origin :
CHINA
Sliding face material combination Q1Q1 or U2Q1 Pressure :
p1 = 20 bar (290 PSI)
Brand Name :
BESTSEAL

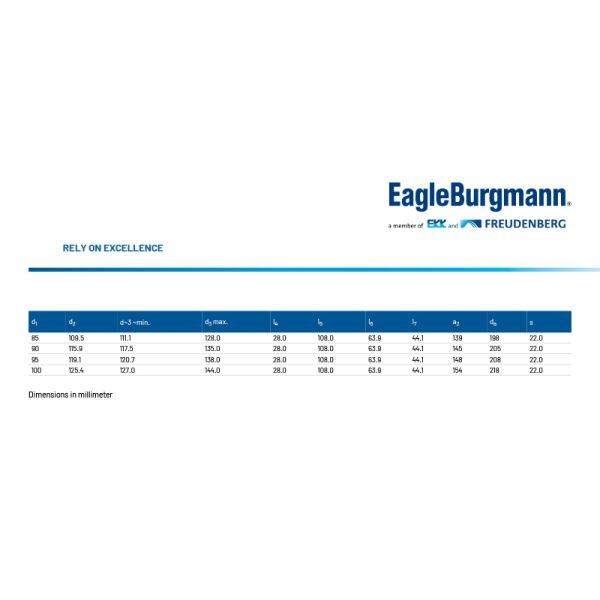

Shaft diameter :
d1 = 25 ... 100 mm (1.000" ... 4.000")
Description

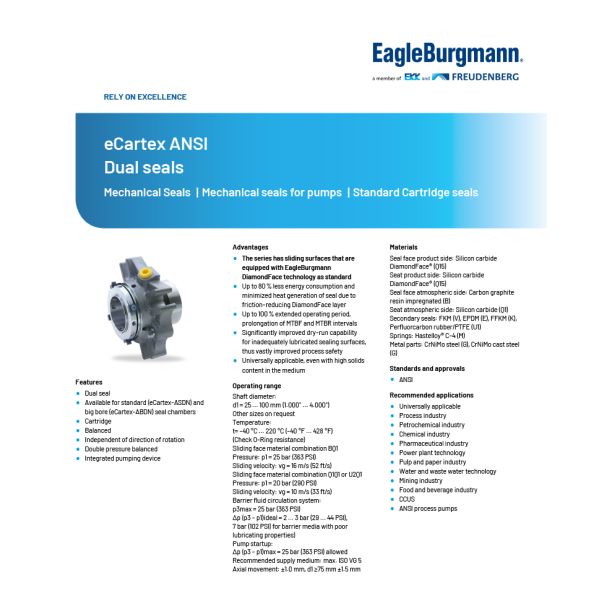

EagleBurgmann eCartex ANSI CARTEX-DN Dual Cartridge Mechanical Seals for Pumps

Mechanical seals for pumps

eCartex ANSI Dual seals

Standard Cartridge seals

Advantages

  • The series has sliding surfaces that are equipped with EagleBurgmann DiamondFace technology as standard
  • Up to 80 % less energy consumption and minimized heat generation of seal due to friction-reducing DiamondFace layer
  • Up to 100 % extended operating period, prolongation of MTBF and MTBR intervals
  • Significantly improved dry-run capability for inadequately lubricated sealing surfaces, thus vastly improved process safety
  • Universally applicable, even with high solids content in the medium

Features

  • Dual seal
  • Available for standard (eCartex-ASDN) and big bore (eCartex-ABDN) seal chambers
  • Cartridge
  • Balanced
  • Independent of direction of rotation
  • Double pressure balanced
  • Integrated pumping device

Standards and approvals

  • ANSI

Recommended applications

  • Universally applicable
  • Process industry
  • Petrochemical industry
  • Chemical industry
  • Pharmaceutical industry
  • Power plant technology
  • Pulp and paper industry
  • Water and waste water technology
  • Mining industry
  • Food and beverage industry
  • CCUS
  • ANSI process pumps

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress

BESTSEAL Cartridge Mechanical Seal

Your Fast-Track Alternative to EagleBurgmann eCartex ANSI Dual seals

Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
