Specifications
Model Number :
Cartex ANSI Dual seals
Temperature :
t = -40 °C ... 220 °C (-40 °F ... 428 °F)
Certification :
ISO9001

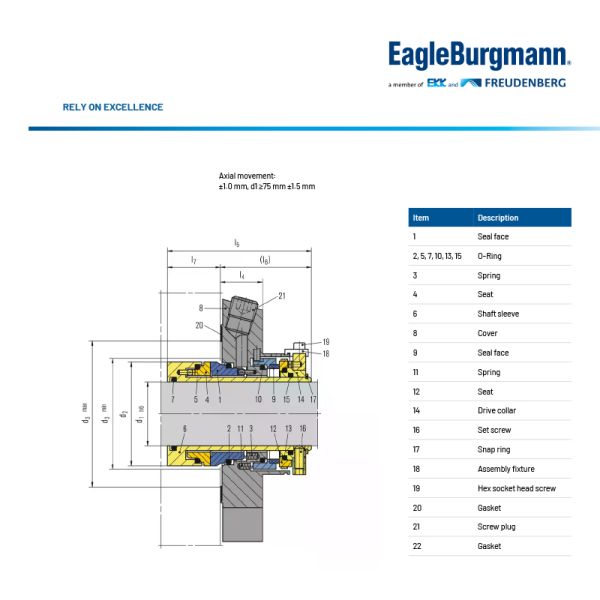

Axial movement :
±1.0 mm, d1 ≥75 mm ±1.5 mm
Place of Origin :
CHINA
Seal face :
Silicon carbide (Q1), Carbon graphite resin impregnated (B), Tungsten carbide (U2)
MOQ :
1pc
Packaging Details :
Carton
Seat :
Silicon carbide (Q1)
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Secondary seals :
FKM (V), EPDM (E), FFKM (K), Perflourocarbon rubber/PTFE (U1)
Supply Ability :
1000000/Month
Springs :
Hastelloy® C-4 (M)
Delivery Time :
15 working days
Metal parts :
CrNiMo steel (G), CrNiMo cast steel (G)
Brand Name :
BESTSEAL

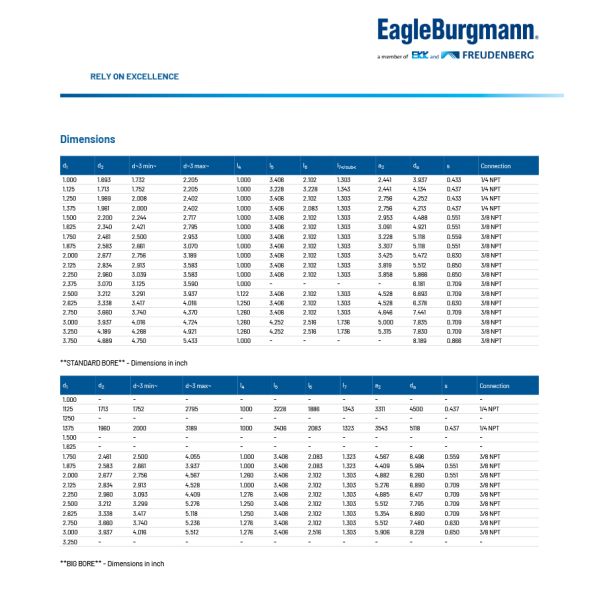

Shaft diameter :
d1 = 25 ... 100 mm (1.000" ... 4.000")
Description

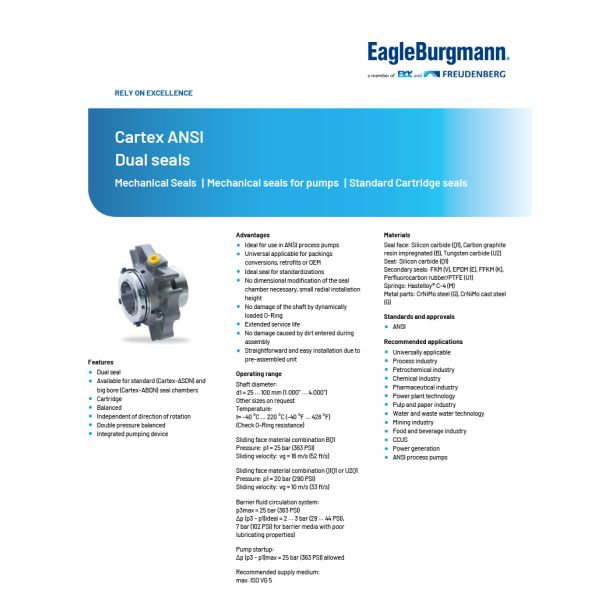

EagleBurgmann Cartex ANSI Dual Seals Cartridge Mechanical Seal for Pumps

Mechanical seals for pumps

Cartex ANSI Dual seals

Standard Cartridge seals

Advantages

  • Ideal for use in ANSI process pumps
  • Universal applicable for packings conversions, retrofits or OEM
  • Ideal seal for standardizations
  • No dimensional modification of the seal chamber necessary, small radial installation height
  • No damage of the shaft by dynamically loaded O-Ring
  • Extended service life
  • No damage caused by dirt entered during assembly
  • Straightforward and easy installation due to pre-assembled unit

Features

  • Dual seal
  • Available for standard (Cartex-ASDN) and big bore (Cartex-ABDN) seal chambers
  • Cartridge
  • Balanced
  • Independent of direction of rotation
  • Double pressure balanced
  • Integrated pumping device

Standards and approvals

  • ANSI

Recommended applications

  • Universally applicable
  • Process industry
  • Petrochemical industry
  • Chemical industry
  • Pharmaceutical industry
  • Power plant technology
  • Pulp and paper industry
  • Water and waste water technology
  • Mining industry
  • Food and beverage industry
  • CCUS
  • Power generation
  • ANSI process pumps

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress

BESTSEAL Cartridge Mechanical Seal

Your Fast-Track Alternative to EagleBurgmann Cartex ANSI Dual seals

Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
