Unitex EagleBurgmann Mechanical Seal 12bar Single Cartridge Elastomer Mechanical Seal
Unitex EagleBurgmann Mechanical Seal 12bar Single Cartridge Elastomer Mechanical Seal
Unitex EagleBurgmann Mechanical Seal 12bar Single Cartridge Elastomer Mechanical Seal
Unitex EagleBurgmann Mechanical Seal 12bar Single Cartridge Elastomer Mechanical Seal
Unitex EagleBurgmann Mechanical Seal 12bar Single Cartridge Elastomer Mechanical Seal
Unitex EagleBurgmann Mechanical Seal 12bar Single Cartridge Elastomer Mechanical Seal
Unitex EagleBurgmann Mechanical Seal 12bar Single Cartridge Elastomer Mechanical Seal
Unitex EagleBurgmann Mechanical Seal 12bar Single Cartridge Elastomer Mechanical Seal
Unitex EagleBurgmann Mechanical Seal 12bar Single Cartridge Elastomer Mechanical Seal
Unitex EagleBurgmann Mechanical Seal 12bar Single Cartridge Elastomer Mechanical Seal
Specifications
Delivery Time :
15 working days
Secondary seals :
FKM (V), EPDM (E)
Model Number :
Unitex
Pressure :
p1 = 12 bar (174 PSI)
Supply Ability :
1000000/Month
Seat :
Silicon carbide (Q1)
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Seal face :
Carbon graphite resin impregnated (B), Silicon carbide (Q1)
Certification :
ISO9001
Temperature :
t = -20 °C … 140 °C (-4 °F … 284 °F)
MOQ :
1pc
Packaging Details :
Carton
Axial movement :
±0.5 mm
Metal parts :
CrNiMo steel (G), CrNiMo cast steel (G)
Brand Name :
BESTSEAL
Shaft diameter :
dN = 25 … 75 mm (1" … 2.625")
Place of Origin :
CHINA
Sliding velocity :
vg = 10 m/s (33 ft/s)
Description

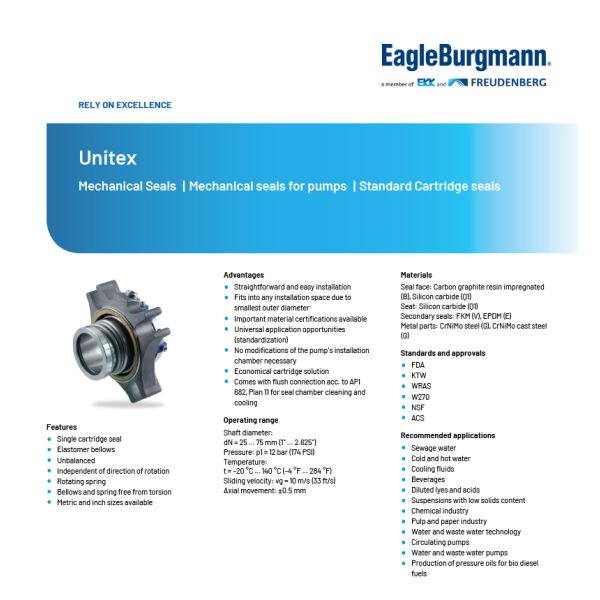

EagleBurgmann Unitex Single Cartridge Elastomer Bellows Mechanical Seals for Water Pumps

Mechanical seals for pumps

Unitex

Standard Cartridge seals

Advantages

  • Straightforward and easy installation
  • Fits into any installation space due to smallest outer diameter
  • Important material certifications available
  • Universal application opportunities (standardization)
  • No modifications of the pump's installation chamber necessary
  • Economical cartridge solution
  • Comes with flush connection acc. to API 682, Plan 11 for seal chamber cleaning and cooling

Features

  • Single cartridge seal
  • Elastomer bellows
  • Unbalanced
  • Independent of direction of rotation
  • Rotating spring
  • Bellows and spring free from torsion
  • Metric and inch sizes available

Standards and approvals

  • FDA
  • KTW
  • WRAS
  • W270
  • NSF
  • ACS

Recommended applications

  • Sewage water
  • Cold and hot water
  • Cooling fluids
  • Beverages
  • Diluted lyes and acids
  • Suspensions with low solids content
  • Chemical industry
  • Pulp and paper industry
  • Water and waste water technology
  • Circulating pumps
  • Water and waste water pumps
  • Production of pressure oils for bio diesel fuels

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress

BESTSEAL Cartridge Mechanical Seal

Your Fast-Track Alternative to EagleBurgmann Unitex

Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
