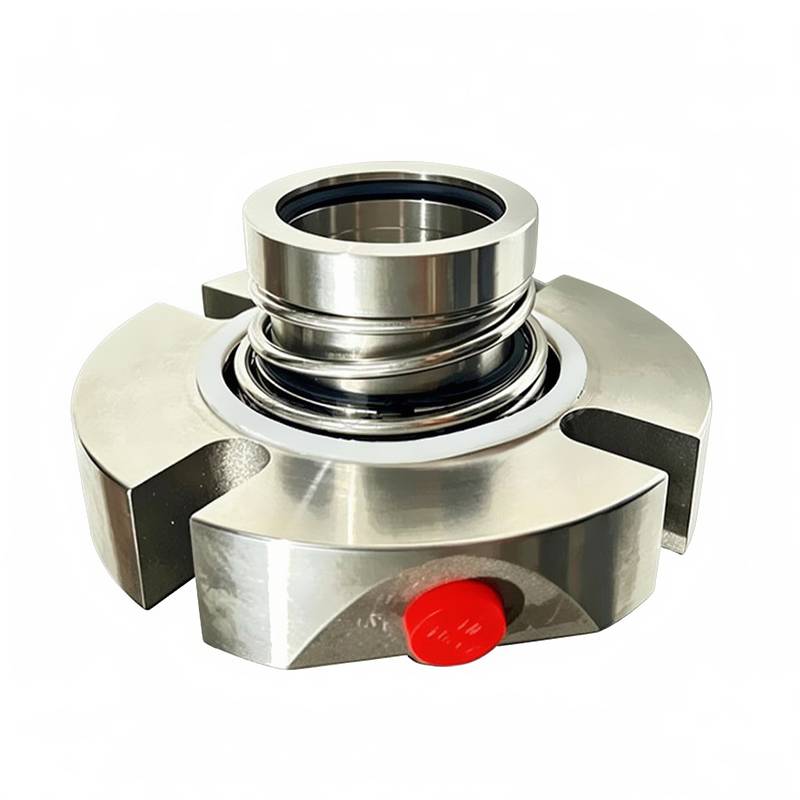

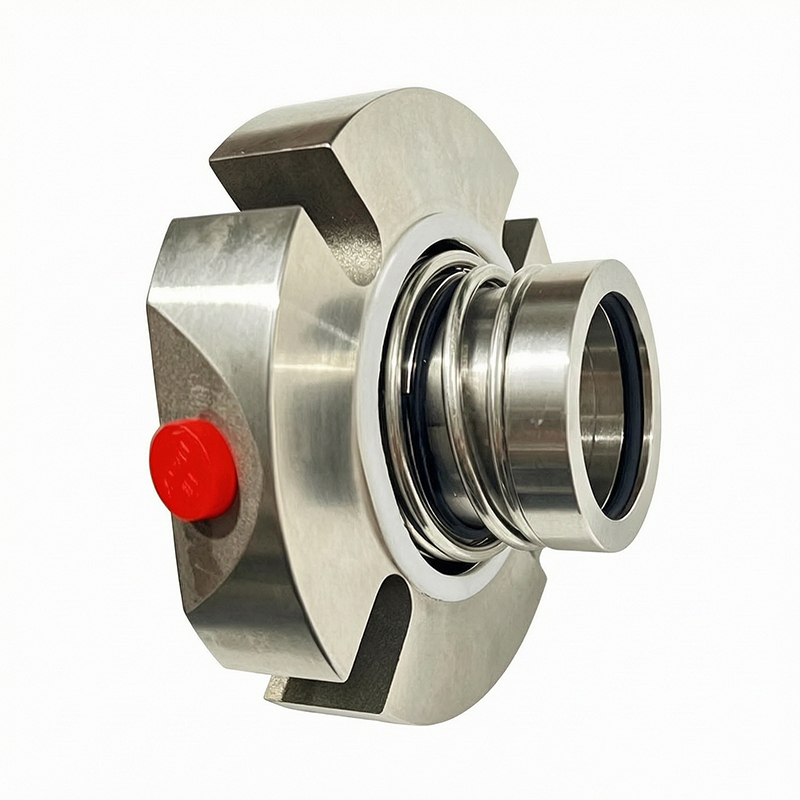

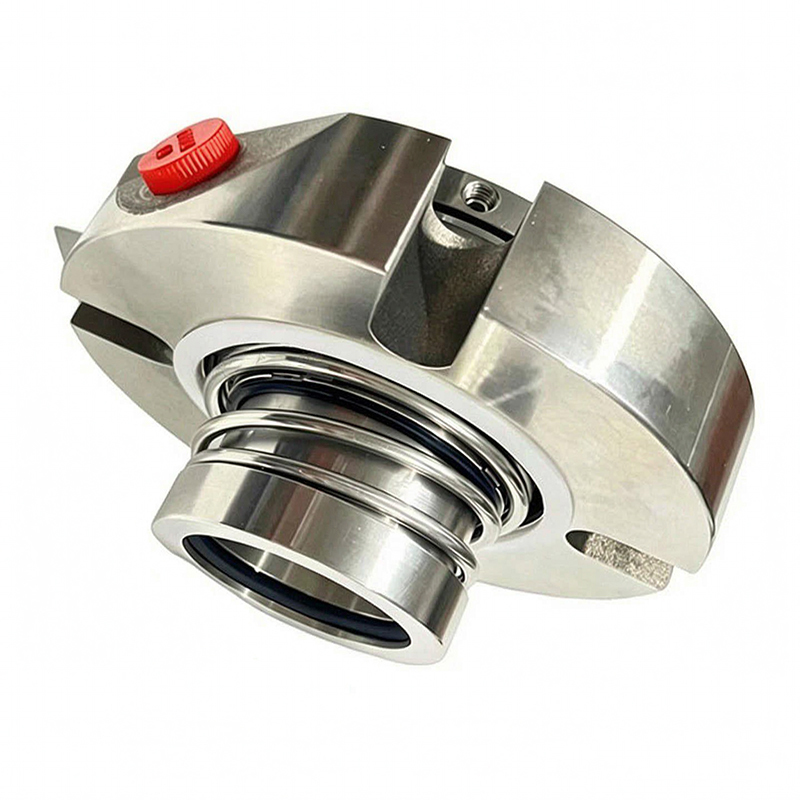

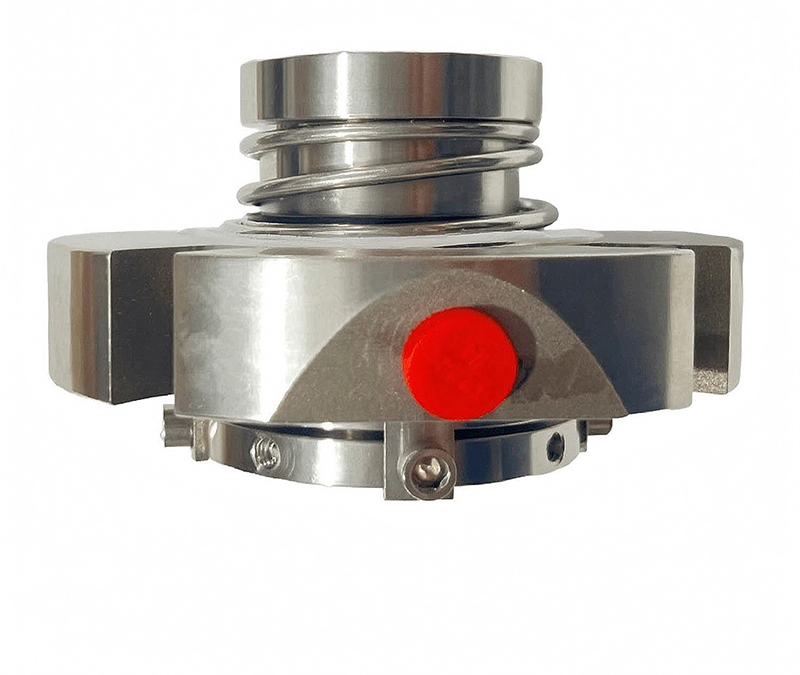

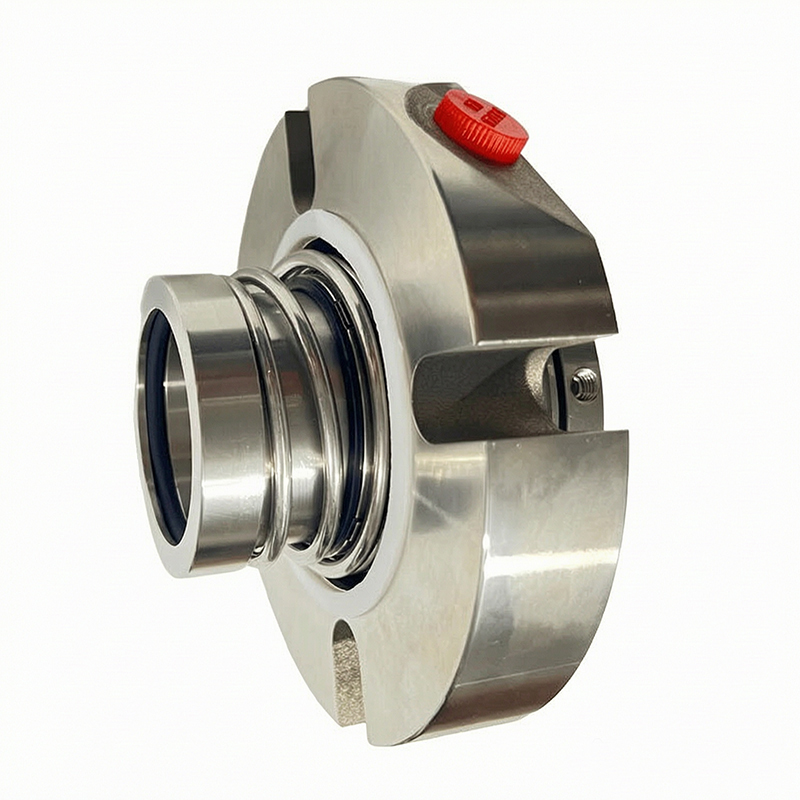

EagleBurgmann Type Unitex Standard Single Cartridge Mechanical Seals for Pumps
EagleBurgmann Type Unitex Standard Single Cartridge Mechanical Seals for Pumps
EagleBurgmann Type Unitex Standard Single Cartridge Mechanical Seals for Pumps
EagleBurgmann Type Unitex Standard Single Cartridge Mechanical Seals for Pumps
EagleBurgmann Type Unitex Standard Single Cartridge Mechanical Seals for Pumps
EagleBurgmann Type Unitex Standard Single Cartridge Mechanical Seals for Pumps
EagleBurgmann Type Unitex Standard Single Cartridge Mechanical Seals for Pumps
EagleBurgmann Type Unitex Standard Single Cartridge Mechanical Seals for Pumps
EagleBurgmann Type Unitex Standard Single Cartridge Mechanical Seals for Pumps
EagleBurgmann Type Unitex Standard Single Cartridge Mechanical Seals for Pumps
Specifications
Delivery Time :
15 working days
Spring :
SS316, hastelloy C, AM350
Model Number :
Type Unitex
Pressure :
Up to 25 bar
MOQ :
1pc
Packaging Details :
Carton
Seal face :
Carbon, SiC, TC
Metal parts :
SS316, hastelloy C
Supply Ability :
1000000/Month
O-rings :
NBR, EPDM, VITON, Aflas, FEP, Kalrez, Chemraz
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Seat :
SiC, TC
Certification :
ISO9001
Speed :
Up to 25 m/s
Brand Name :
BESTSEAL
Temperature :
40C to 220C dependent on the elastomer
Place of Origin :
CHINA
Sizes :
25mm to 75mm, 1" to 2.625"
Description

EagleBurgmann Type Unitex Standard Single Cartridge Mechanical Seals for Circulating Pumps

Mechanical seals for pumps

Unitex

Type Unitex Single Cartridge Seal

EagleBurgmann Type Unitex Single Cartridge Seal

Performance Capabilities

Temperature: 40C to 220C dependent on the elastomer

Pressure: up to 25 bar

Speed: Up to 25 m/s

Sizes: 25mm to 75mm, 1" to 2.625"

Materials Combination

Face: Carbon, SiC, TC

Seat: SiC, TC

O-rings: NBR, EPDM, VITON, Aflas, FEP, Kalrez, Chemraz

Spring: SS316, hastelloy C, AM350

Metal parts: SS316, hastelloy C

Advantages

  • Straightforward and easy installation
  • Fits into any installation space due to smallest outer diameter
  • Important material certifications available
  • Universal application opportunities (standardization)
  • No modifications of the pump's installation chamber necessary
  • Economical cartridge solution
  • Comes with flush connection acc. to API 682, Plan 11 for seal chamber cleaning and cooling

Features

  • Single cartridge seal
  • Elastomer bellows
  • Unbalanced
  • Independent of direction of rotation
  • Rotating spring
  • Bellows and spring free from torsion
  • Metric and inch sizes available

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress

BESTSEAL Cartridge Mechanical Seal

Your Fast-Track Alternative to EagleBurgmann Unitex

Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
