AESSEAL CAPI-74 Dry Gas Seals Double Cartridge Mechanical Seal for Pumps
AESSEAL CAPI-74 Dry Gas Seals Double Cartridge Mechanical Seal for Pumps
AESSEAL CAPI-74 Dry Gas Seals Double Cartridge Mechanical Seal for Pumps
AESSEAL CAPI-74 Dry Gas Seals Double Cartridge Mechanical Seal for Pumps
AESSEAL CAPI-74 Dry Gas Seals Double Cartridge Mechanical Seal for Pumps
AESSEAL CAPI-74 Dry Gas Seals Double Cartridge Mechanical Seal for Pumps
AESSEAL CAPI-74 Dry Gas Seals Double Cartridge Mechanical Seal for Pumps
AESSEAL CAPI-74 Dry Gas Seals Double Cartridge Mechanical Seal for Pumps
AESSEAL CAPI-74 Dry Gas Seals Double Cartridge Mechanical Seal for Pumps
AESSEAL CAPI-74 Dry Gas Seals Double Cartridge Mechanical Seal for Pumps
Specifications
Stationary Face :
TC / Ceramic / SiC
Clamp Ring :
316L Stainless Steel
Sleeve O Ring :
FKM / EPR / FFKM / TFE/P
Spacer Ring :
316L Stainless Steel
Rotary Bellows Face - SAC :
316 SS - AM350 - C42 - Carbon / TC / SiC
Setting Clip Screws :
Stainless Steel
Rotary Bellows Face - SHS :
316 SS - Alloy 276 - 316 SS - Carbon / TC / SiC
Stationary Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Gasket :
AF1 / GFT
Rotary Bellows Face - HHH :
Alloy 276 - Alloy 276 - Alloy 276 - Carbon / TC / SiC
Drive Screws :
Stainless Steel
Anti-tamper Screws :
Stainless Steel
Model Number :
CAPI-74
Supply Ability :
1000000/Month
Certification :
ISO9001
Setting Clips :
Zinc Alloy / Metal
MOQ :
1pc
Sleeve :
316L Stainless Steel
Brand Name :
BESTSEAL
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Delivery Time :
15 working days
Rotary Drive Screws :
Stainless Steel
Gland :
316 Stainless Steel
Packaging Details :
Carton
Place of Origin :
CHINA
Rotary Face Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Description

AESSEAL CAPI-74 Dry Gas Seals Double Cartridge Mechanical Seal for Pumps


Gas Seals

Pump Seals

CAPI-74

Face to Face Category 2 & 3 Seals

The advantages of sealing pumps with dual pressurized dry gas seals are becoming widely recognized throughout industry. AESSEAL® has developed a range of pump dry gas seals to suit every application.

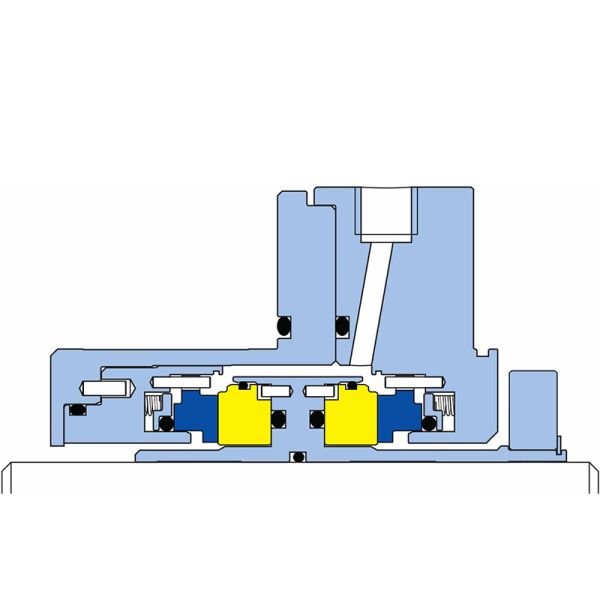

The CAPI-74™ Face to Face configuration is a stationary design, bi-directional, balanced, internally-mounted, cartridge design pusher seal with multiple springs. It is a non-contacting dual seal primarily designed for pumps meeting ANSI/ API standard 682 that can provide zero emissions in service.

Features

  • A non contacting seal primarily designed for API 610 pumps which require seals to API 682 standard
  • API 682 qualification tested designs
  • Can operate within a wide range of operating conditions
  • Non-contacting spiral groove face technology
  • ZERO process emissions
  • Low running costs
  • Bi-directional option available
  • Specially engineered variants available on request

Performance Capabilities

Temperature -20℃ to 200℃, dependent on the elastomer
Pressure Up to 2.5MPA
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Brand BESTSEAL
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well

AESSEAL CAPI-74 Dry Gas Seals Double Cartridge Mechanical Seal for Pumps

AESSEAL CAPI-74 Dry Gas Seals Double Cartridge Mechanical Seal for Pumps

AESSEAL CAPI-74 Dry Gas Seals Double Cartridge Mechanical Seal for Pumps

AESSEAL CAPI-74 Dry Gas Seals Double Cartridge Mechanical Seal for Pumps

AESSEAL CAPI-74 Dry Gas Seals Double Cartridge Mechanical Seal for Pumps
