Specifications
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Stationary Face :
TC / Ceramic / SiC
Clamp Ring :
316L Stainless Steel
Place of Origin :
CHINA
Supply Ability :
1000000/Month
Sleeve O Ring :
FKM / EPR / FFKM / TFE/P
Spacer Ring :
316L Stainless Steel
Model Number :
CCS
Rotary Bellows Face - SHS :
316 SS - Alloy 276 - 316 SS - Carbon / TC / SiC
Stationary Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Gasket :
AF1 / GFT
Rotary Bellows Face - HHH :
Alloy 276 - Alloy 276 - Alloy 276 - Carbon / TC / SiC
Drive Screws :
Stainless Steel
Anti-tamper Screws :
Stainless Steel
Brand Name :
BESTSEAL
Rotary Bellows Face - SAC :
316 SS - AM350 - C42 - Carbon / TC / SiC
Setting Clip Screws :
Stainless Steel
Certification :
ISO9001
Setting Clips :
Zinc Alloy / Metal
Delivery Time :
15 working days
Sleeve :
316L Stainless Steel
MOQ :
1pc
Packaging Details :
Carton
Rotary Drive Screws :
Stainless Steel
Gland :
316 Stainless Steel
Rotary Face Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Description

AESSEAL CCS Dry Gas Seals Cartridge Mechanical Seal for Compressor


Gas Seals

Compressor Seals

CCS

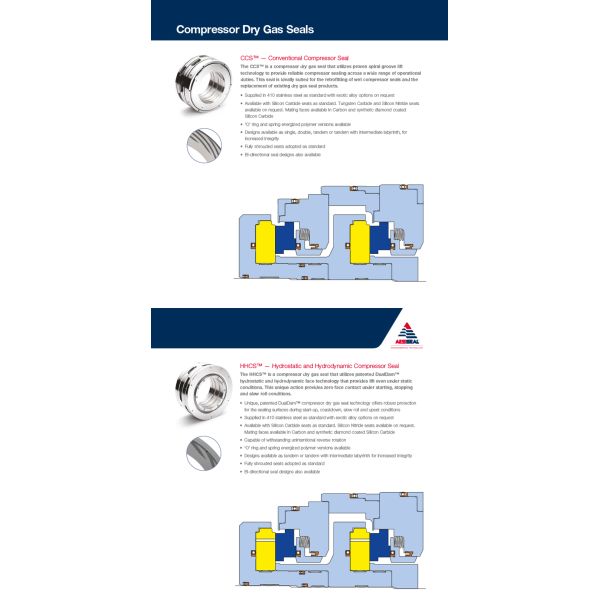

Conventional Compressor Seal

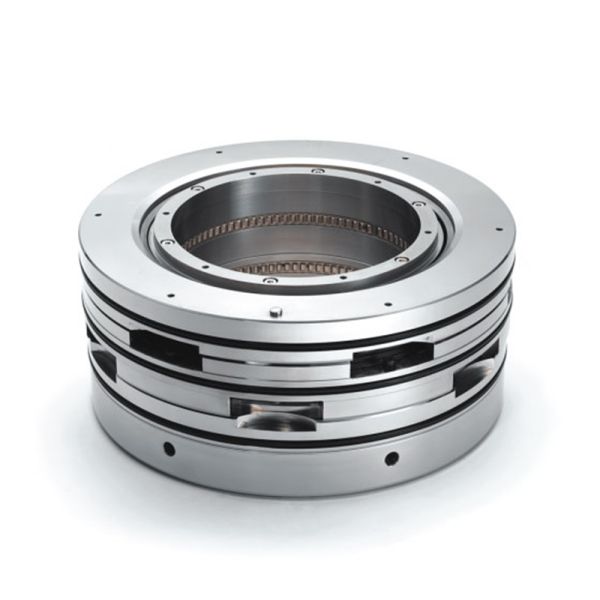

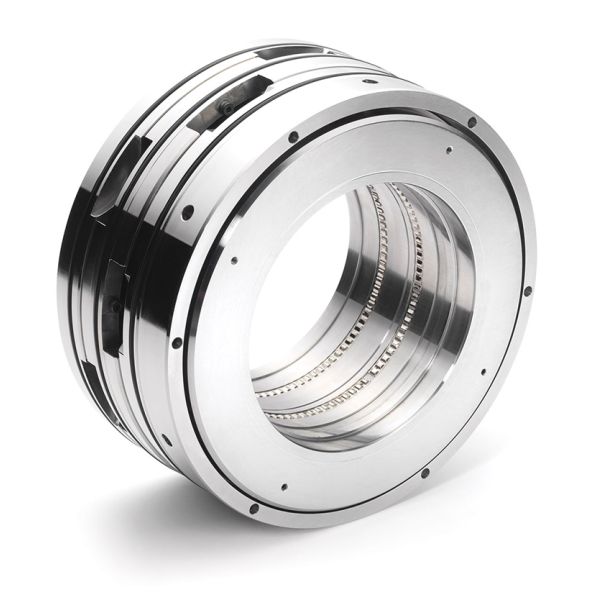

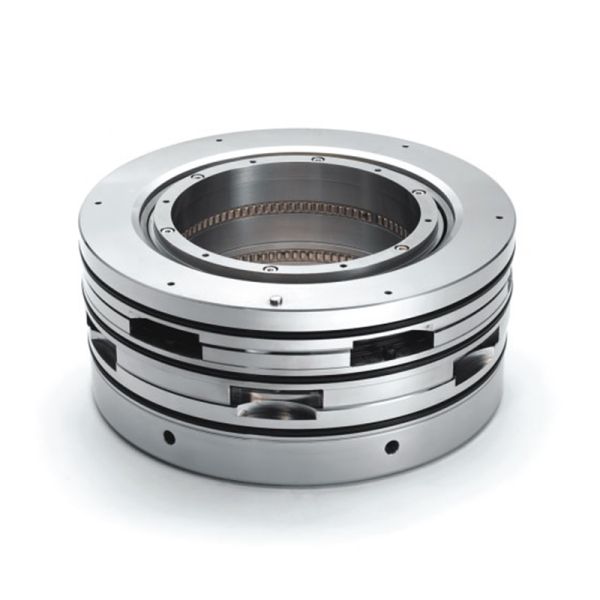

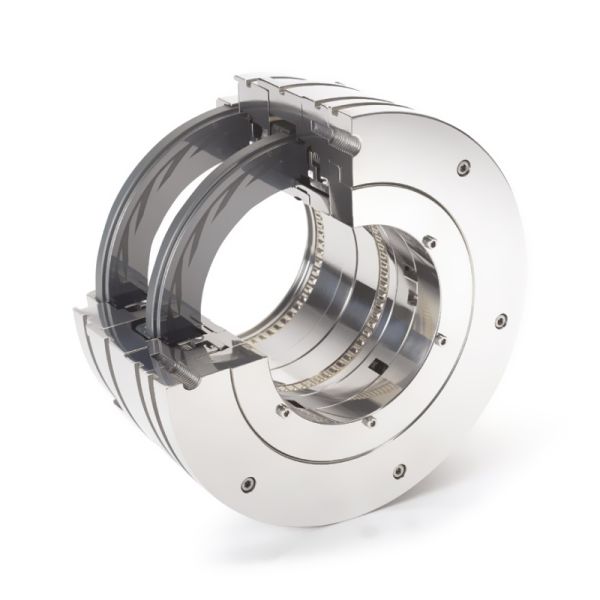

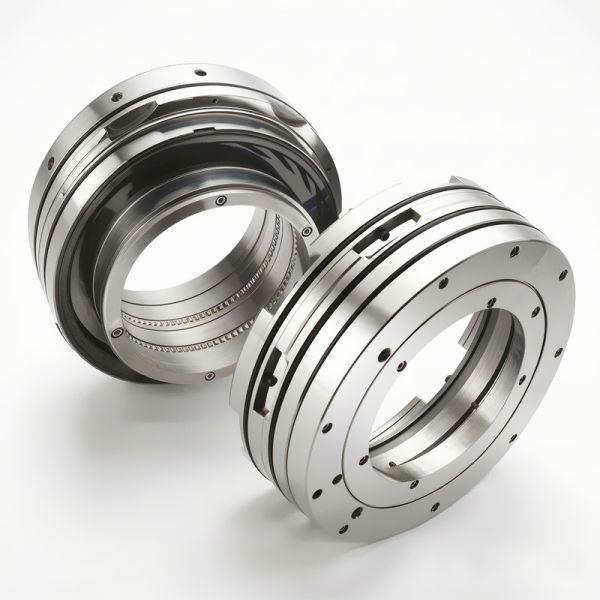

The CCS™ is a tandem cartridge seal where the inboard seal is designed to seal up to 82 bar (1200 psi) and an outboard seal that acts as a low pressure tandem seal.

The outboard seal is capable of full pressure containment in the event of full seal failure.

Features

  • Ideally suited for retrofitting wet compressor seals and bushings or as a replacement for existing Dry Gas seals
  • Supplied in 410 stainless steel as standard with exotic alloy options on request
  • Available with Silicon Carbide seats as standard. Tungsten Carbide and Silicon Nitride seats available on request. Mating faces available in Carbon and synthetic diamond coated Silicon Carbide
  • ‘O’ ring and spring energized polymer versions available
  • Designs available in single double tandem or tandem with intermediate labyrinth for increased integrity
  • Fully shrouded seats adopted as standard
  • Bi-directional seal designs available

Separation Seals

AESSEAL® offers both labyrinth and dual bush non-contacting separation seals supplied individually or as an integral part of the gas seal cartridge. This device provides a positively pressurised chamber protecting the dry gas seal from potential bearing oil migration and preventing gas ingress to the bearing chamber.

Performance Capabilities

Temperature -20℃ to 200℃, dependent on the elastomer
Pressure Up to 2.5MPA
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Brand BESTSEAL
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well
