Specifications
Pressure Limits :
Vacuum to 100 psi(g)/7 bar(g)
Supply Ability :
1000000/Month
Stationary Ring Face :
SiC/TC
Recommended Applications :
Process pumps, Other rotating equipment, Cryogenic, Liquified Gasses
Certification :
ISO9001
Springs :
SS304/SS316
Packaging Details :
Carton
Elastomers: :
NBR/Viton/EPDM/Aflas
Metal Parts :
SS304/SS316/SS316L
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Brand Name :
BESTSEAL
Speed Limits :
10,000 rpm
Rotary Ring Face :
Carbon/SiC/TC
Model Number :
Type 285
Place of Origin :
CHINA
Delivery Time :
15 working days
MOQ :
1pc
Temperature Limits :
-320°F to ambient/-196°C to ambient
Description

John Crane Type 285 Dry Gas Seals Metal Bellows Mechanical Seal For Cryogenic Pumps

  • Mechanical Seals
  • Pump Seals
  • Non-contacting seals

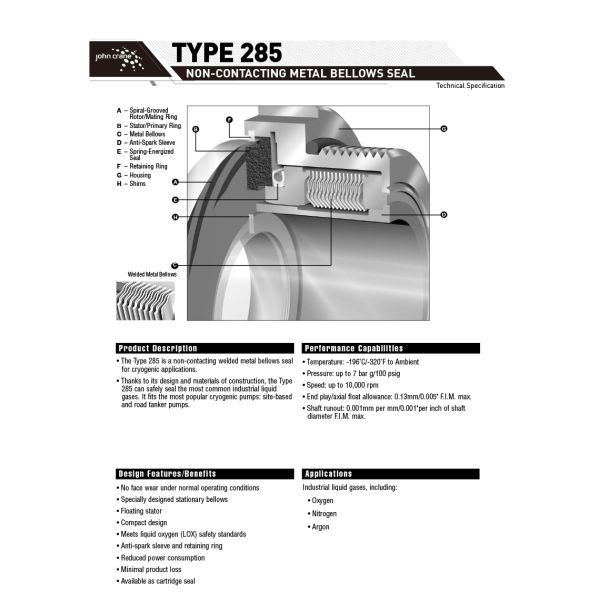

Type 285

Gas-lubricated, Non-contacting Single Seal For Cryogenic Pumps

Unique Spiral Groove Technology

As the worldwide leader in spiral groove technology, John Crane is the first to utilize non-contacting seals in cryogenic applications.

The Type 285 can safely seal the most common industrial liquid gasses, such as liquid nitrogen, oxygen, argon and carbon dioxide.

It fits the most popular cryogenic pumps — site-based and road tanker pumps — and meets liquid oxygen (LOX) safety standards.

The John Crane spiral grooves enable the seal to operate on a gas film by gathering and compressing the vaporized liquid.

As the gas is forced towards the closed groove ends, the pressure rises, which creates a cushion to separate the sealing faces.

Since the seal faces do not contact, dry-running and face wear problems, which are associated with conventional contacting seals, are virtually eliminated.

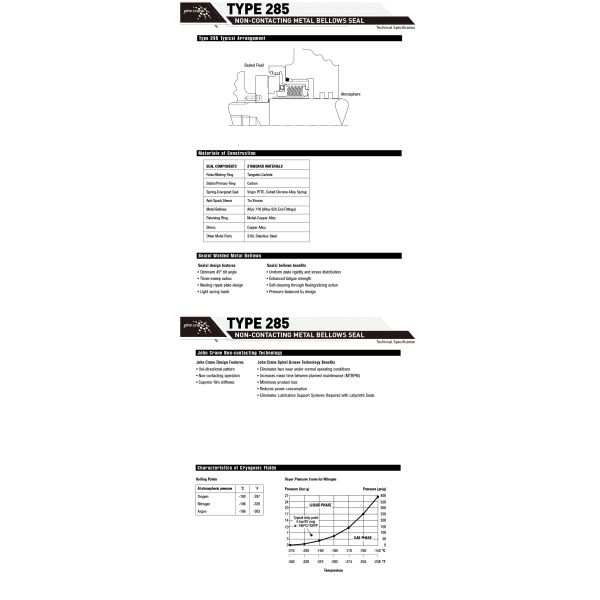

Technical Specifications

John Crane, Inc.
Product Category Mechanical Seals
Product Number Type 285
Product Name Gas-lubricated, Non-contacting Single Seal For Cryogenic Pumps
Mechanical Seal Type Single
Seal Design Metal Bellows
Seal Application Pump; Cryogenic Seal

Features

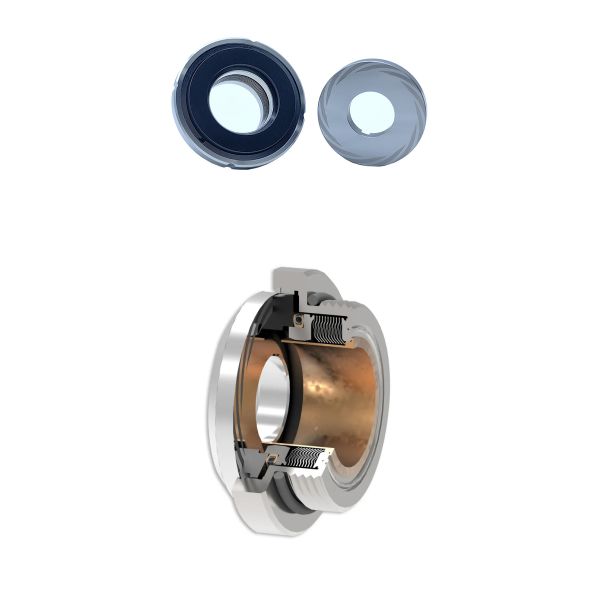

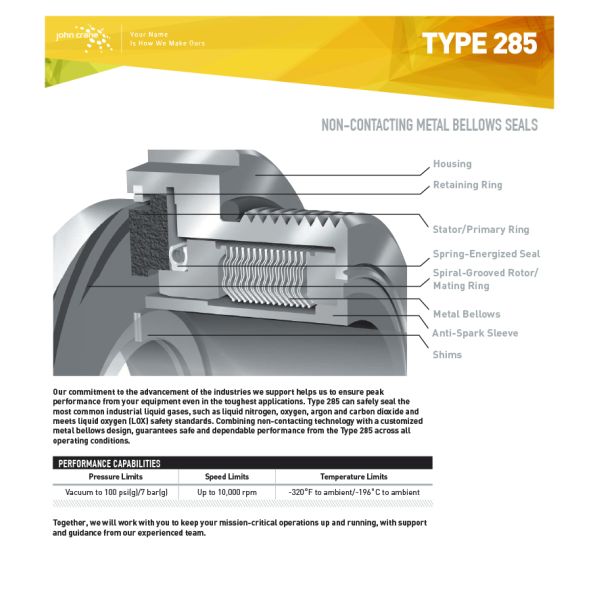

  • Specially designed stationary edge-welded metal bellows.
  • Available in flanged, right- and left-hand threaded designs or as a cartridge.
  • Meets liquid oxygen (LOX) safety standards.
  • Anti-spark sleeve and retaining ring.
  • Reduced power consumption with minimal product loss. Since the seal faces do not contact, dry-running and face wear problems, which are associated with conventional contacting seals, are virtually eliminated.
  • The design and materials of construction meet the industry safety requirements, allowing the Type 285 to seal all of the common industrial liquid gasses including oxygen, nitrogen and argon.
  • The Type 285 is more tolerant to system upsets and increases your mean time between pump maintenance.

Parameters

Temperature Limits:-320°F to ambient/-196°C to ambient
Pressure Limits:Vacuum to 100 psi(g)/7 bar(g)
Speed Limits:10,000 rpm
Recommended Applications
  • Process pumps
  • Other rotating equipment
  • Cryogenic, Liquified Gasses

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress

BESTSEAL Dry Gas Mechanical Seal

Your Fast-Track Alternative to John Crane Type 285

Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
