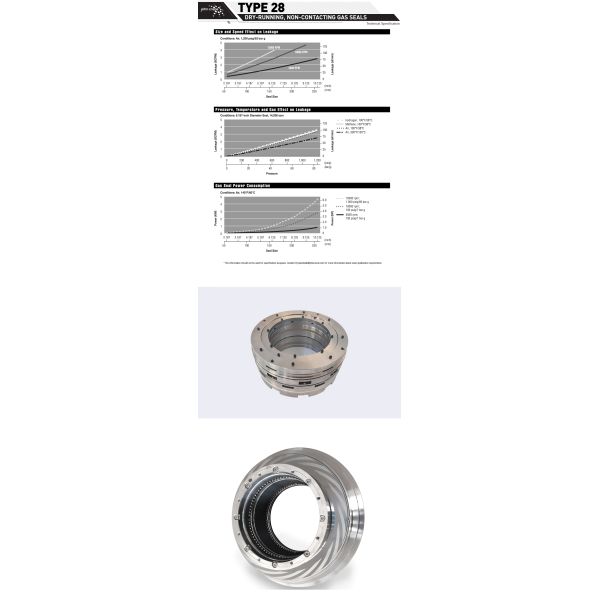

Specifications
Pressure Limits :
1,450 psi(g)/100 bar(g)
Packaging Details :
Carton
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Brand Name :
BESTSEAL
Supply Ability :
1000000/Month
Place of Origin :
CHINA
Model Number :
Type 28AT
Certification :
ISO9001
Speed Limits :
394fps/120m/s
Delivery Time :
15 working days
Size Limits :
12.125"/308mm
MOQ :
1pc
Temperature Limits :
-4°F to 392°F/-20°C to 200°C, dependent on overall duty conditions
Description

John Crane Type 28AT Non-contacting Dry Gas Seals Cartridge Mechanical Seal for Turbo Compressors


  • Mechanical Seals
  • Compressor Seals
  • Dry Gas Seals

Type 28AT

Non-contacting Gas Seal for Turbo Compressors

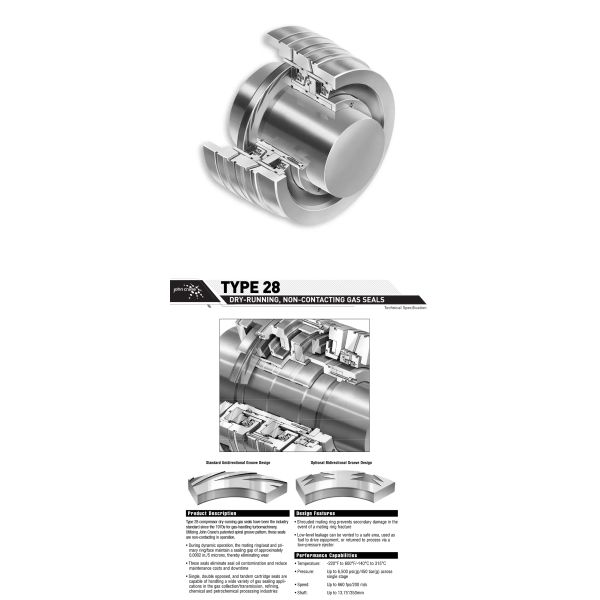

Type 28AT: The original gas seal, with a design pedigree stretching back over 30 years and evolving gradually, installed and proven in thousands of compressors all around the world and remaining the preferred seal choice for many customers. Type 28 compressor dry-running gas seals have been the industry standard since early 1970 for gas-handling turbomachinery. Utilizing John Crane's patented spiral groove pattern, these seals are non-contacting in operation. During dynamic operation, the mating ring/seat and primary ring/face maintain a sealing gap of approximately 0.0002"/5 microns, thereby eliminating wear. These seals eliminate seal oil contamination and reduce maintenance costs and downtime. Single, tandem and double seal arrangements are available.

Features

  • Cartridge design
  • Unidirectional or bidirectional capability

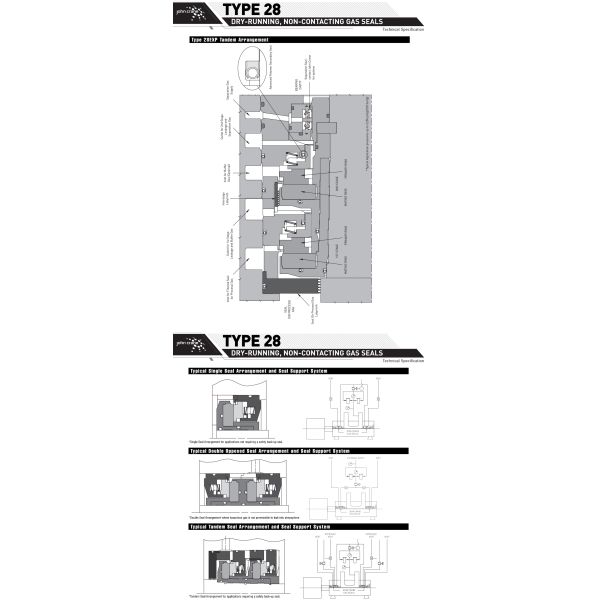

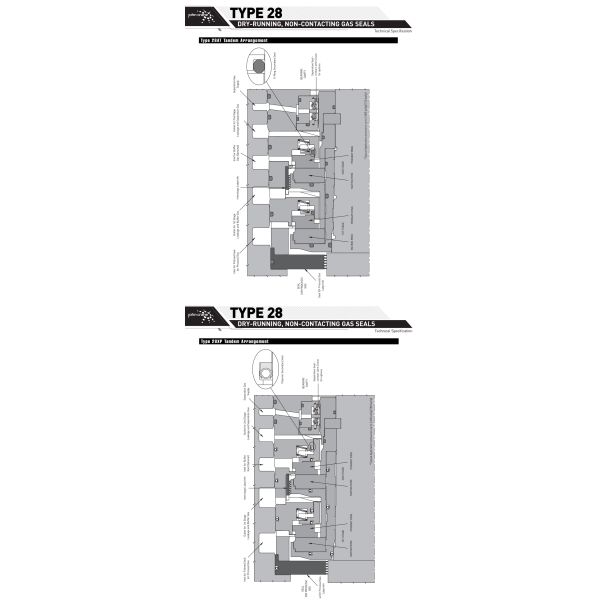

  • Single, double-opposed or tandem configuration
  • Robust design with unparalleled field-proven pedigree

Recommended applications

  • Centrifugal compressors
  • Other compressors
  • IG compressors
  • Turbo compressor machinery
  • Natural gas pipeline
  • Natural gas/hydrogen refueling stations
  • Oil and gas (refineries)
  • API 692
  • Propylene and ethylene compressor

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress

BESTSEAL Dry Gas Mechanical Seal

Your Fast-Track Alternative to John Crane Type 28AT

Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
