Specifications
Delivery Time :
15 working days
Packaging Details :
Carton
Stationary Face :
TC / Ceramic / SiC
Clamp Ring :
316L Stainless Steel
Sleeve O Ring :
FKM / EPR / FFKM / TFE/P
Spacer Ring :
316L Stainless Steel
Rotary Bellows Face - SAC :
316 SS - AM350 - C42 - Carbon / TC / SiC
Setting Clip Screws :
Stainless Steel
Rotary Bellows Face - SHS :
316 SS - Alloy 276 - 316 SS - Carbon / TC / SiC
Stationary Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Gasket :
AF1 / GFT
Rotary Bellows Face - HHH :
Alloy 276 - Alloy 276 - Alloy 276 - Carbon / TC / SiC
Drive Screws :
Stainless Steel
Anti-tamper Screws :
Stainless Steel
Brand Name :
BESTSEAL
Place of Origin :
CHINA
MOQ :
1pc
Setting Clips :
Zinc Alloy / Metal
Rotary Drive Screws :
Stainless Steel
Model Number :
UDGS
Certification :
ISO9001
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Supply Ability :
1000000/Month
Gland :
316 Stainless Steel
Sleeve :
316L Stainless Steel
Rotary Face Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Description

AESSEAL UDGS Dry Gas Seal Double Cartridge Mechanical Seals for ANSI Pumps


Gas Seals

Pump Seals

UDGS

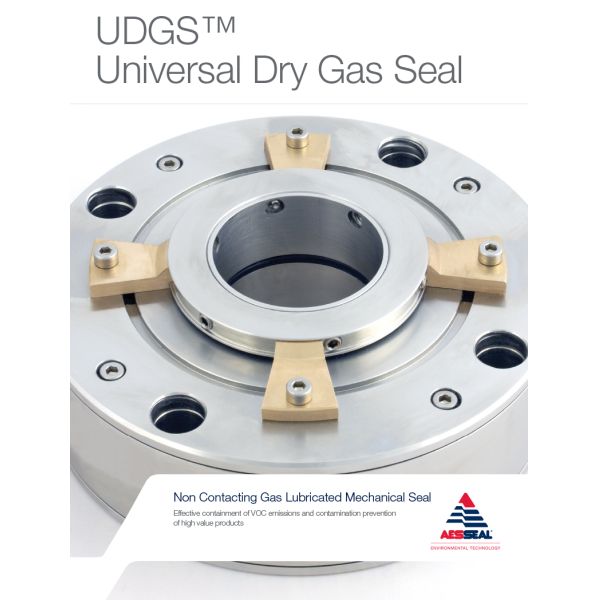

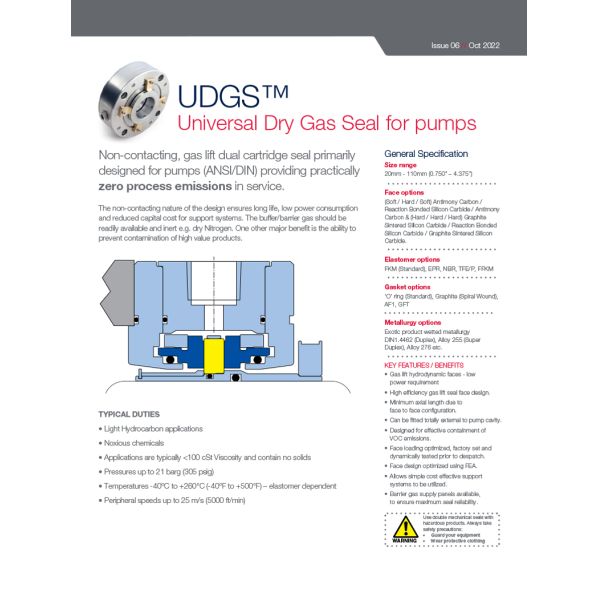

Universal Dry Gas Seal

Non-contacting, gas lift dual cartridge seal primarily designed for pumps (ANSI/DIN) providing practically zero process emissions in service.

The non-contacting nature of the design ensures long life, low power consumption and reduced capital cost for support systems. The buffer/barrier gas should be readily available and inert e.g. dry Nitrogen. One other major benefit is the ability to prevent contamination of high value products.

Features

  • Non-contacting spiral groove face technology
  • Long life with low power consumption
  • Externally mounted and suitable for ISO 5199 and ANSI pumps
  • Can be adapted to fit other types of rotating equipment
  • Zero process emissions
  • Low running costs

Performance Capabilities

Temperature -20℃ to 200℃, dependent on the elastomer
Pressure Up to 2.5MPA
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Brand BESTSEAL
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well
