Specifications
Inboard Face :
Resin Impregnated Carbon / SiC, SiC / SiC (SCMS-DW) Dry Running Carbon / SiC
Certification :
ISO9001
Delivery Time :
15 working days
Outboard Face :
Resin Impregnated Carbon / SiC, (SCMS-DW) Dry Running Carbon / SiC
Elastomer :
EPR, FFKM, FKM (Standard), TFE/P
Gasket :
O Ring (standard), AF1, GFT
Brand Name :
BESTSEAL
Packaging Details :
Carton
Model Number :
SCMS
Supply Ability :
1000000/Month
MOQ :
1pc
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Place of Origin :
CHINA
Description

AESSEAL SCMS Reaction Kettle Mechanical Seal Cartridge Mixer Agitators Seals with Bearing

Cartridge Mechanical Seals

Mixer Seals

SCMS

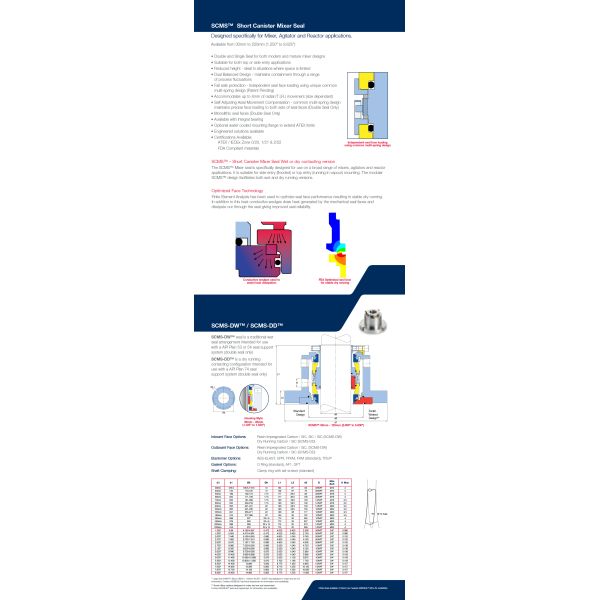

Short Canister Mixer Seal Wet or dry contacting version

The SCMS™ Mixer seal is specifically designed for use on a broad range of mixers agitators and reactor applications. It is suitable for side entry (flooded) or top entry (running in vapour) mounting. The modular SCMS™ design facilitates both wet and dry running versions.

  • SCMS-SW™ seal is a traditional wet single seal arrangement
  • SCMS-DW™ seal is a traditional wet seal arrangement intended for use with a API Plan 53 or 54 seal support system (double seal only)

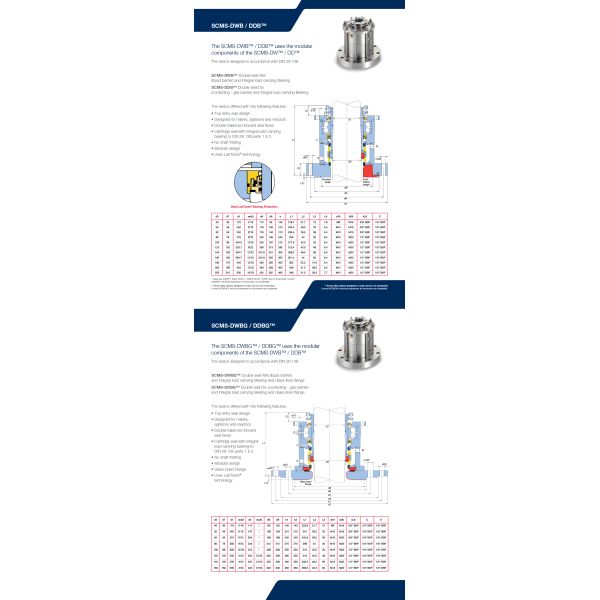

  • SCMS-DWB™ Double seal Wet (liquid barrier) and integral load carrying Bearing
  • SCMS-DWBG™ Double seal Wet (liquid barrier) and integral load carrying Bearing and Glass lined flange
  • SCMS-DD™ is a dry running contacting configuration intended for use with a API Plan 74 seal support system (double seal only)
  • SCMS-DDB™ Double seal Dry (contacting - gas barrier) and integral load carrying Bearing
  • SCMS-DDBG™ Double seal Dry (contacting - gas barrier) and integral load carrying Bearing and Glass lined flange
  • SCMS-DG™ / DGG™ (Dry Gas Lift Mixer Seal)
  • SCMS-DGO™ Dry Gas Seal Non Contacting inboard

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress

BESTSEAL Reaction Kettle Mechanical Seal

Your Fast-Track Alternative to AESSEAL SCMS

Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
