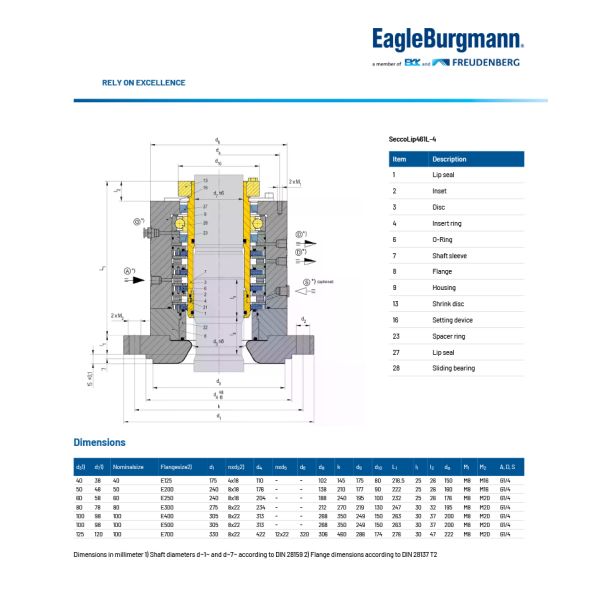

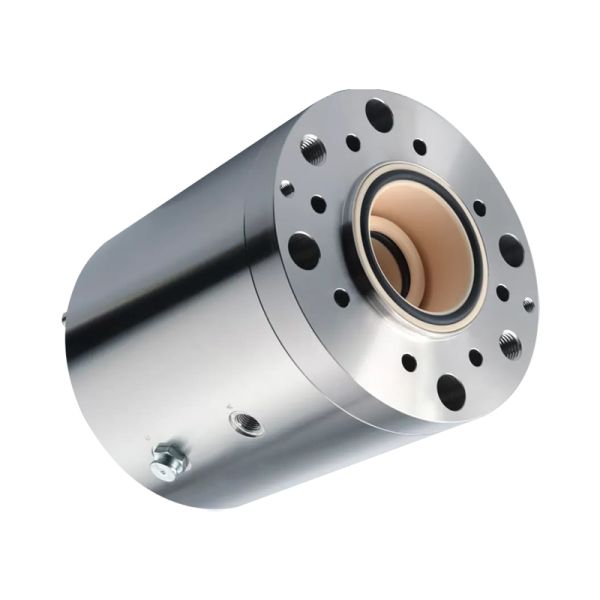

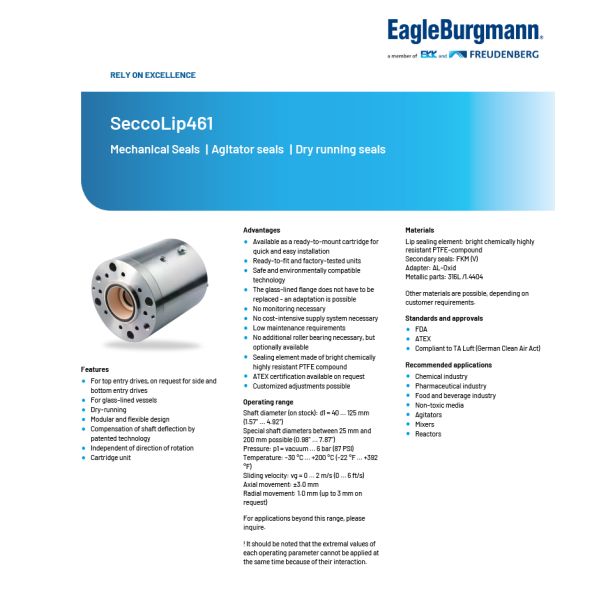

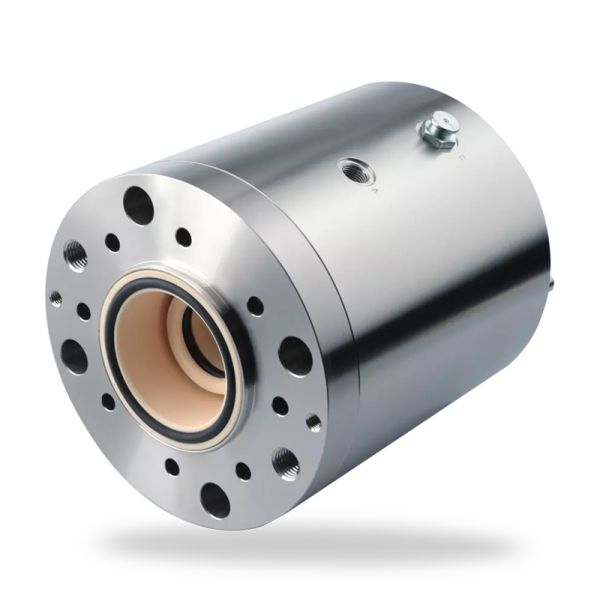

EagleBurgmann SeccoLip461 Reaction Kettle Cartridge Mechanical Seal for Agitator
EagleBurgmann SeccoLip461 Reaction Kettle Cartridge Mechanical Seal for Agitator
EagleBurgmann SeccoLip461 Reaction Kettle Cartridge Mechanical Seal for Agitator
EagleBurgmann SeccoLip461 Reaction Kettle Cartridge Mechanical Seal for Agitator
EagleBurgmann SeccoLip461 Reaction Kettle Cartridge Mechanical Seal for Agitator
EagleBurgmann SeccoLip461 Reaction Kettle Cartridge Mechanical Seal for Agitator
EagleBurgmann SeccoLip461 Reaction Kettle Cartridge Mechanical Seal for Agitator
EagleBurgmann SeccoLip461 Reaction Kettle Cartridge Mechanical Seal for Agitator
Specifications
Delivery Time :
15 working days
Secondary seals :
FKM (V)
Model Number :
SeccoLip461
Pressure :
vacuum ... 6 bar (87 PSI)
MOQ :
1pc
Packaging Details :
Carton
Axial movement :
±3.0 mm
Adapter :
AL-Oxid
Supply Ability :
1000000/Month
Lip sealing element :
bright chemically highly resistant PTFE-compound
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Radial movement :
1.0 mm (up to 3 mm on request)
Certification :
ISO9001
Temperature :
-30 °C ... +200 °C (-22 °F ... +392 °F)
Brand Name :
BESTSEAL
Shaft diameter (on stock) :
d1 = 40 ... 125 mm (1.57" ... 4.92")
Place of Origin :
CHINA
Sliding velocity :
vg = 0 ... 2 m/s (0 ... 6 ft/s)
Metallic parts :
316L /1.4404
Description

EagleBurgmann SeccoLip461 Reaction Kettle Cartridge Mechanical Seal Dry Running Seals for Agitators


Mechanical Seals

Agitator seals

Dry running seals

SeccoLip461

Advantages

  • Available as a ready-to-mount cartridge for quick and easy installation
  • Ready-to-fit and factory-tested units
  • Safe and environmentally compatible technology
  • The glass-lined flange does not have to be replaced - an adaptation is possible
  • No monitoring necessary
  • No cost-intensive supply system necessary
  • Low maintenance requirements
  • No additional roller bearing necessary, but optionally available
  • Sealing element made of bright chemically highly resistant PTFE compound
  • ATEX certification available on request
  • Customized adjustments possible

Features

  • For top entry drives, on request for side and bottom entry drives
  • For glass-lined vessels
  • Dry-running
  • Modular and flexible design
  • Compensation of shaft deflection by patented technology
  • Independent of direction of rotation
  • Cartridge unit

Standards and approvals

  • FDA
  • ATEX
  • Compliant to TA Luft (German Clean Air Act)

Recommended applications

  • Chemical industry
  • Pharmaceutical industry
  • Food and beverage industry
  • Non-toxic media
  • Agitators
  • Mixers
  • Reactors

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress

BESTSEAL Agitator seals

Your Fast-Track Alternative to EagleBurgmann SeccoLip461

Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
