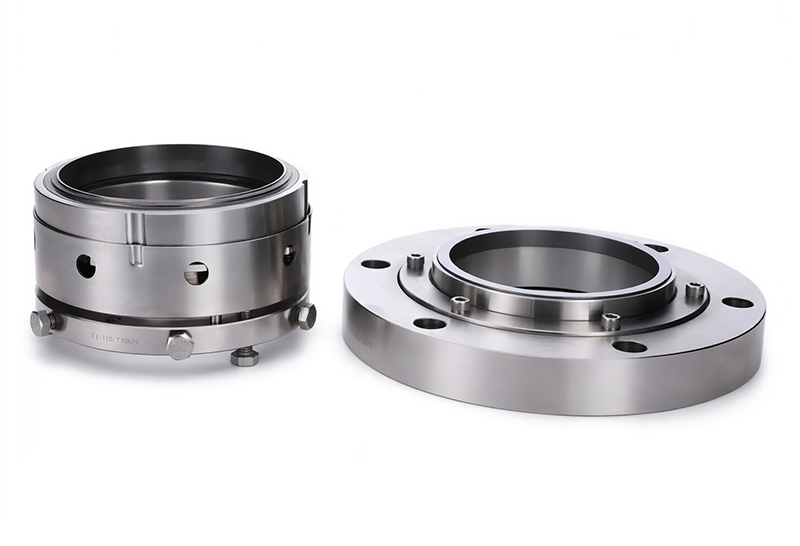

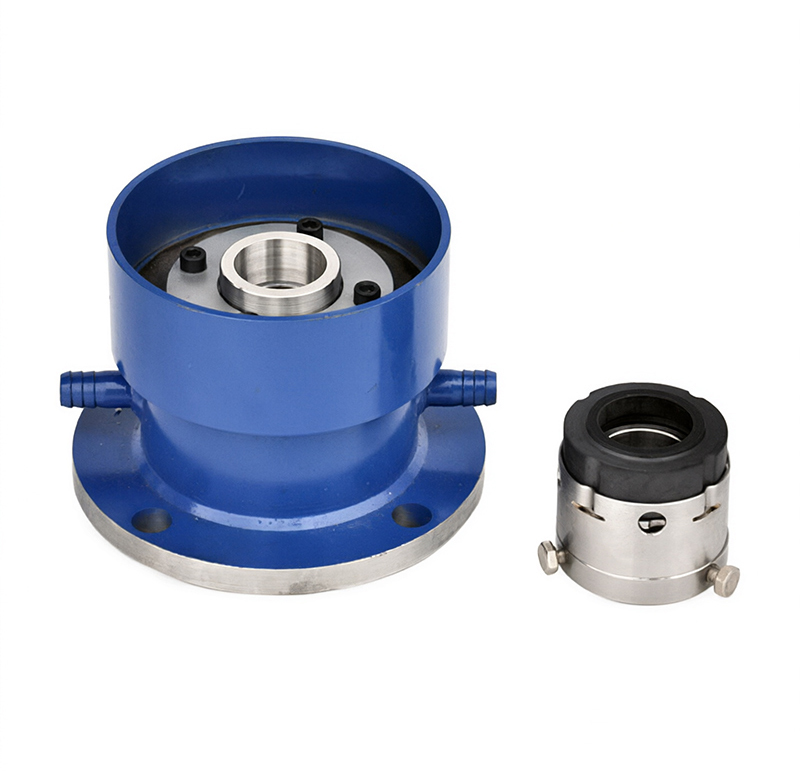

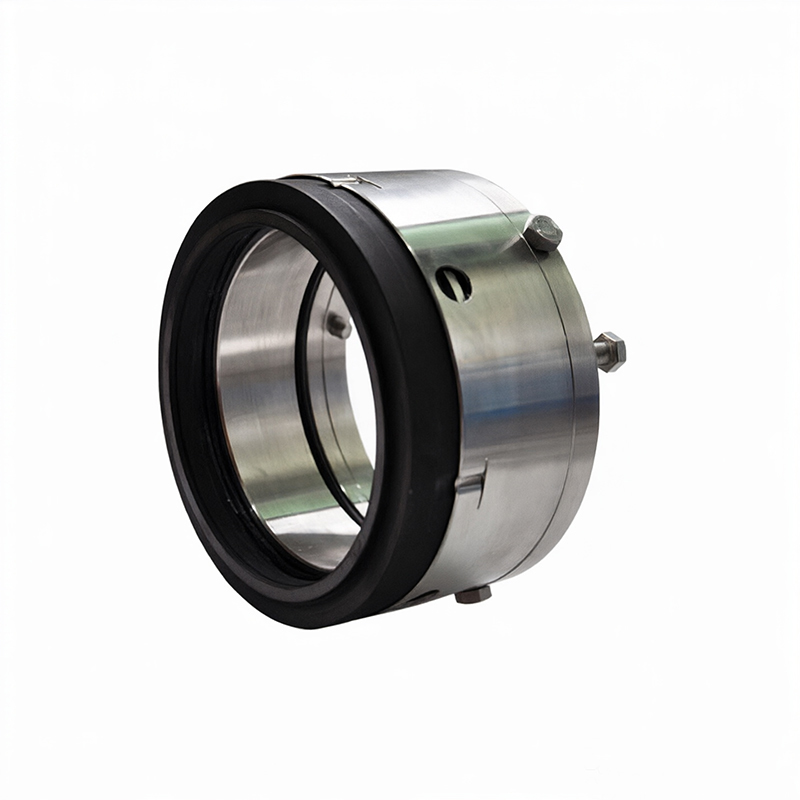

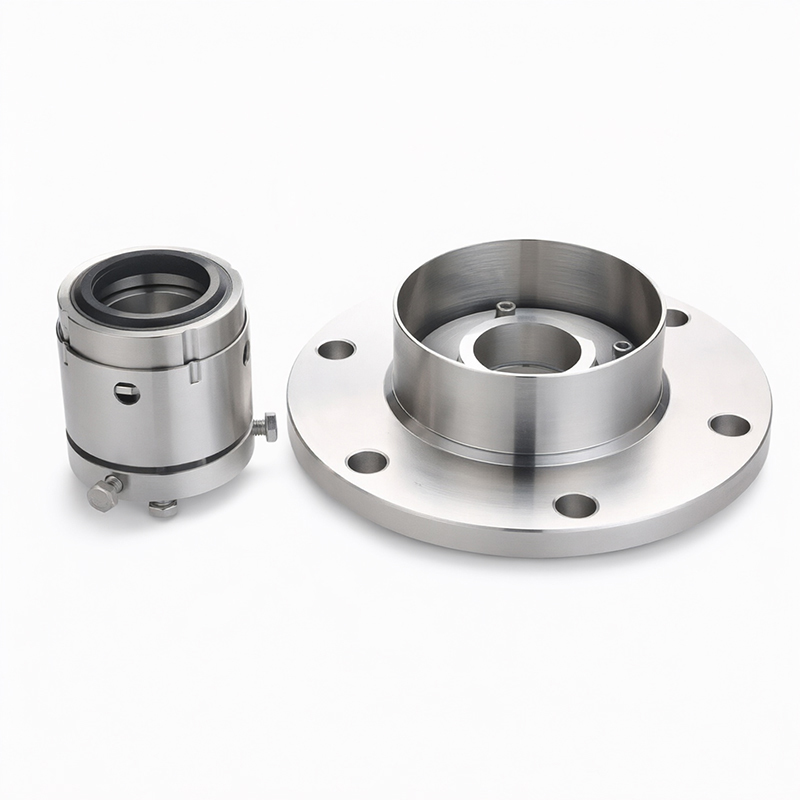

204B Model Reaction Kettle Cartridge Mechanical Seal with Multi-Spring Structure for Corrosion Resistance
204B Model Reaction Kettle Cartridge Mechanical Seal with Multi-Spring Structure for Corrosion Resistance
204B Model Reaction Kettle Cartridge Mechanical Seal with Multi-Spring Structure for Corrosion Resistance
204B Model Reaction Kettle Cartridge Mechanical Seal with Multi-Spring Structure for Corrosion Resistance
204B Model Reaction Kettle Cartridge Mechanical Seal with Multi-Spring Structure for Corrosion Resistance
204B Model Reaction Kettle Cartridge Mechanical Seal with Multi-Spring Structure for Corrosion Resistance
204B Model Reaction Kettle Cartridge Mechanical Seal with Multi-Spring Structure for Corrosion Resistance
204B Model Reaction Kettle Cartridge Mechanical Seal with Multi-Spring Structure for Corrosion Resistance
204B Model Reaction Kettle Cartridge Mechanical Seal with Multi-Spring Structure for Corrosion Resistance
204B Model Reaction Kettle Cartridge Mechanical Seal with Multi-Spring Structure for Corrosion Resistance
Specifications
Supply Ability :
1000000/Month
Model Number :
204B
Pressure :
-0.1 ~ 0.6 MPa
MOQ :
1pc
Packaging Details :
Carton
Mediums :
Oil, acid, alkali, and polymer suspensions.
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Customization Available :
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
Certification :
ISO9001, ISO14001, SGS
Temperature :
-40 ~ 180 ºC (cooling tank is required if the temperature is higher than 150 ºC and the installation height should be 100 mm higher than normal)
Delivery Time :
15 working days
Brand Name :
BESTSEAL
Model NO. :
204B
Place of Origin :
CHINA
Linear Speed :
2 m/s or less
Description

204B Reaction kettle Complete Cartridge Mechanical Seal Assembly Replacement for Mixers Agitators

204B

For: Vertical Top Entry Mixers/Agitators

204B Mechanical Seal for Top Driven Vertical Type Agitation Equipment, Fermentation Tanks, Seeding Tanks, Reaction Kettles and Sewage Treatment Devices.

Structural Features: single end, multi springs, balanced, independent direction of rotation. The multi spring structure assures that the load on sealing faces are balanced. The springs are all adjustable and have long life-time. This component has a simple structure and high reliability.

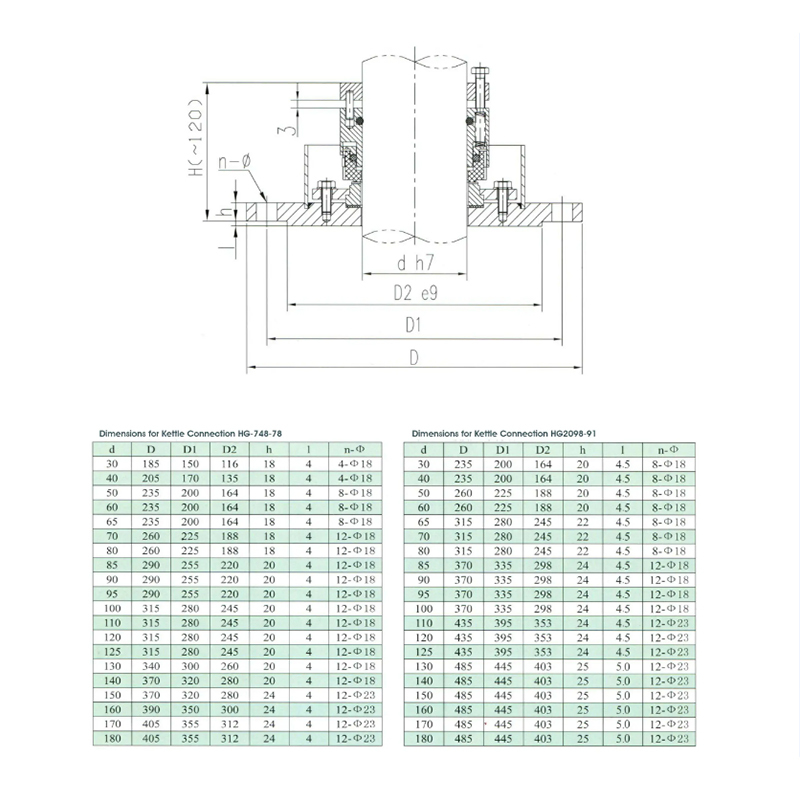

Industrial Standards: HG5-754-78 and HG2098-91

Application: mainly used in top driven vertical type agitation equipment, as well as devices that do not have strict requirements for leakproofness, such as fermentation tanks, seeding tanks, stainless steel reaction kettles and sewage treatment devices.

Materials

  • Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts

    Carbon/Surfacing Alloy/Viton/SS304/SS304

Model Materials GA
204B-110 Carbon/Surfacing Alloy/Viton/SS304/SS304 —
204B-200 Carbon/Surfacing Alloy/Viton/SS304/SS304 —
204B-110RY Carbon/SiC/Viton/SS316/SS316 —

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress
  • BESTSEAL Cartridge Mechanical Seals
  • Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
