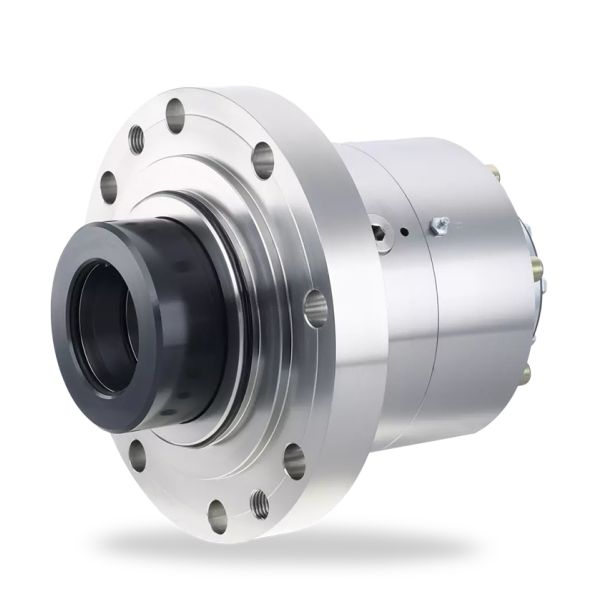

EagleBurgmann SeccoMix R Reaction Kettle Cartridge Mechanical Seal for Agitators
EagleBurgmann SeccoMix R Reaction Kettle Cartridge Mechanical Seal for Agitators
EagleBurgmann SeccoMix R Reaction Kettle Cartridge Mechanical Seal for Agitators
EagleBurgmann SeccoMix R Reaction Kettle Cartridge Mechanical Seal for Agitators
EagleBurgmann SeccoMix R Reaction Kettle Cartridge Mechanical Seal for Agitators
EagleBurgmann SeccoMix R Reaction Kettle Cartridge Mechanical Seal for Agitators
EagleBurgmann SeccoMix R Reaction Kettle Cartridge Mechanical Seal for Agitators
EagleBurgmann SeccoMix R Reaction Kettle Cartridge Mechanical Seal for Agitators
Specifications
Delivery Time :
15 working days
Seat :
Silicon carbide, FDA conform
Model Number :
SeccoMix R
Axial offset shaft/housing :
d1 = 35 … 60 mm (1.38" … 2.36"): max. ±1.5 mm (0.059") d1 >60 mm (2.36"): max. ±2.0 mm (0.079")
Certification :
ISO9001
Radial offset shaft/housing :
max. ±0.3 mm (0.012")
MOQ :
1pc
Packaging Details :
Carton
Temperature :
t1 = -20 °C ... +200 °C (-4 °F ... +392 °F)
Secondary seals and metal parts :
according to application and customer's specifications
Supply Ability :
1000000/Month
Seal face :
Carbon graphite, FDA conform
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Sliding velocity :
vg = 0 ... 2 m/s (0 ... 6 ft/s)
Brand Name :
BESTSEAL
Shaft diameter :
d1 = 35 ... 220 (300) mm (1.38" ... 8.66"(11.81"))
Place of Origin :
CHINA
Pressure :
p1 = Vacuum ... 6 bar (87 PSI)
Description

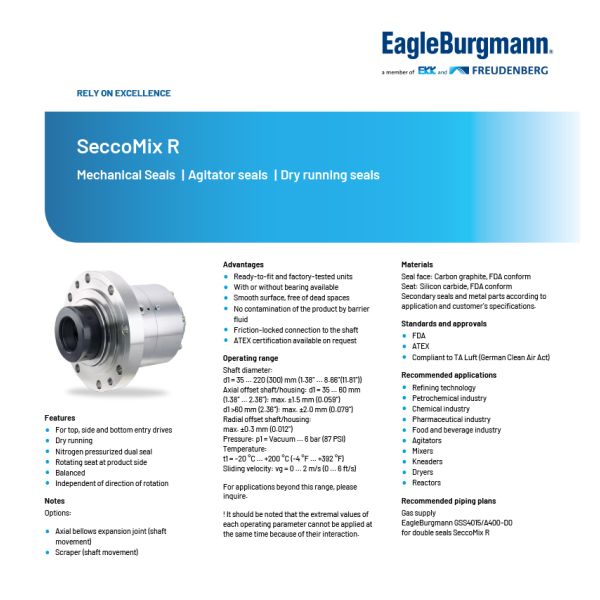

EagleBurgmann SeccoMix R Reaction Kettle Cartridge Mechanical Seal Dry Running Seals for Agitators

Mechanical Seals

Agitator seals

Dry running seals

SeccoMix R

Advantages

  • Ready-to-fit and factory-tested units
  • With or without bearing available
  • Smooth surface, free of dead spaces
  • No contamination of the product by barrier fluid
  • Friction-locked connection to the shaft
  • ATEX certification available on request

Features

  • For top, side and bottom entry drives
  • Dry running
  • Nitrogen pressurized dual seal
  • Rotating seat at product side
  • Balanced
  • Independent of direction of rotation

Standards and approvals

  • FDA
  • ATEX
  • Compliant to TA Luft (German Clean Air Act)

Recommended applications

  • Refining technology
  • Petrochemical industry
  • Chemical industry
  • Pharmaceutical industry
  • Food and beverage industry
  • Agitators
  • Mixers
  • Reactors
  • Kneaders
  • Dryers
  • Reactors

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress

BESTSEAL Agitator seals

Your Fast-Track Alternative to EagleBurgmann SeccoMix R

Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
