Specifications
Shaft Diameter :
20mm to 100mm
Packaging Details :
Carton
Temperature :
-20°C to 120°C
Pressure :
Up to 10 bar
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Springs :
SS304/SS316/HC276
Seal Type :
Cartridge Seal
MOQ :
1pc
Model Number :
Type 5611/5611Q/5611L
Speed :
Up to 3000 rpm
Elastomers :
Viton/EPDM/Aflas
Delivery Time :
15 working days
Supply Ability :
1000000/Month
Rotary Ring :
SiC/TC
Brand Name :
BESTSEAL
Certification :
ISO9001
Design :
Single Use
Place of Origin :
CHINA
Stationary Ring :
SiC/TC
Metal Parts :
410S/SS304/SS316/SS316L/2507/2205
Description

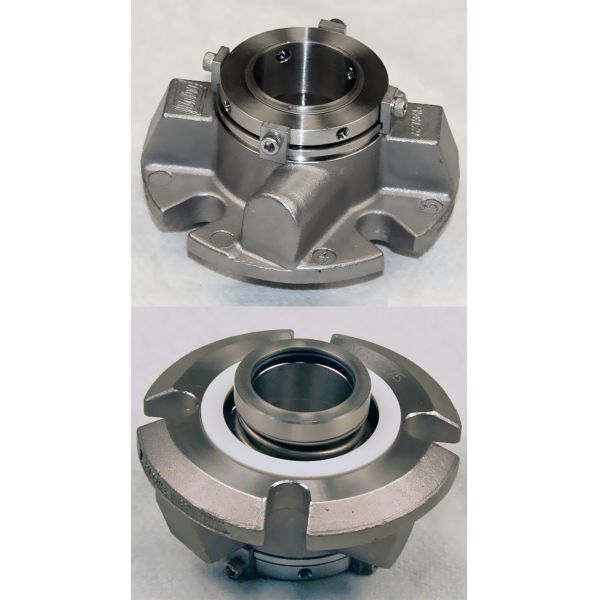

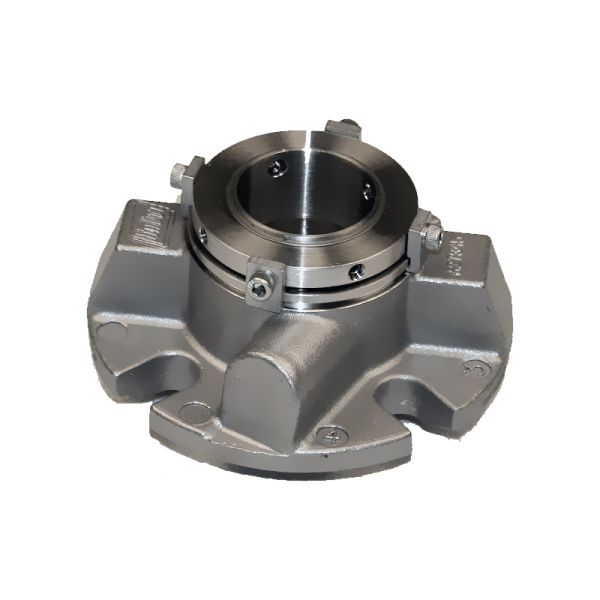

John Crane Type 5611/5611Q/5611L Single Cartridge Elastomer Bellows Seal Mechanical Seals


Mechanical Seals

Pump Seals

Elastomer Bellows Seals

Type 5611/5611Q/5611L

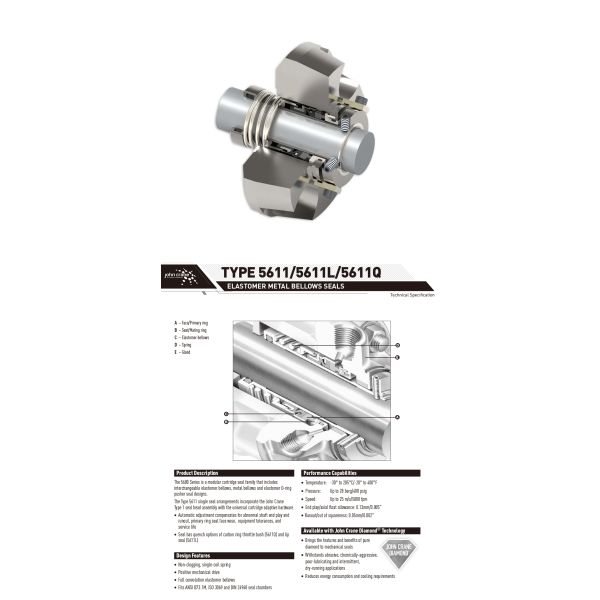

Universal Cartridge™ Seal Family — Single Cartridge Elastomer Bellows Seal

As the first truly universal cartridge seal, the modular family concept of John Crane's Universal Cartridge Seal series will change your approach to sealing. Since the 5600 Series components are interchangeable, you can apply one seal family throughout your plant. This gives you the flexibility to cover more applications with less inventory, which means your maintenance is simplified, downtime is reduced, plant operating efficiency is increased and costs are lowered.

The type 5611 seal is a single cartridge elastomer bellows seal.

The type 5611Q seal provides a quench gland with carbon ring throttle bushing.

The type 5611L seal provides a quench gland with lip seal.

Features
  • The Type 5611 single cartridge seal arrangements incorporate the John Crane Type 1 seal head assembly with universal cartridge adaptive hardware.
  • Automatic adjustment compensates for abnormal shaft-end play and run-out, primary ring seal face wear, equipment tolerances and service life.
  • Non-clogging single-coil spring.
  • Positive mechanical drive.
  • Full convolution elastomer bellows.
  • Fits ANSI and DIN seal chambers.
Parameters
Temperature Limits
400°F/205°C
Pressure Limits
400 psi(g)/28 bar(g)
Speed Limits
5000fpm/25m/s
Recommended Applications
  • Process pumps
  • Other rotating equipment

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress
  • BESTSEAL Cartridge Mechanical Seals
  • Your Fast-Track Alternative to John Crane Type 5611/5611Q/5611L
  • Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
