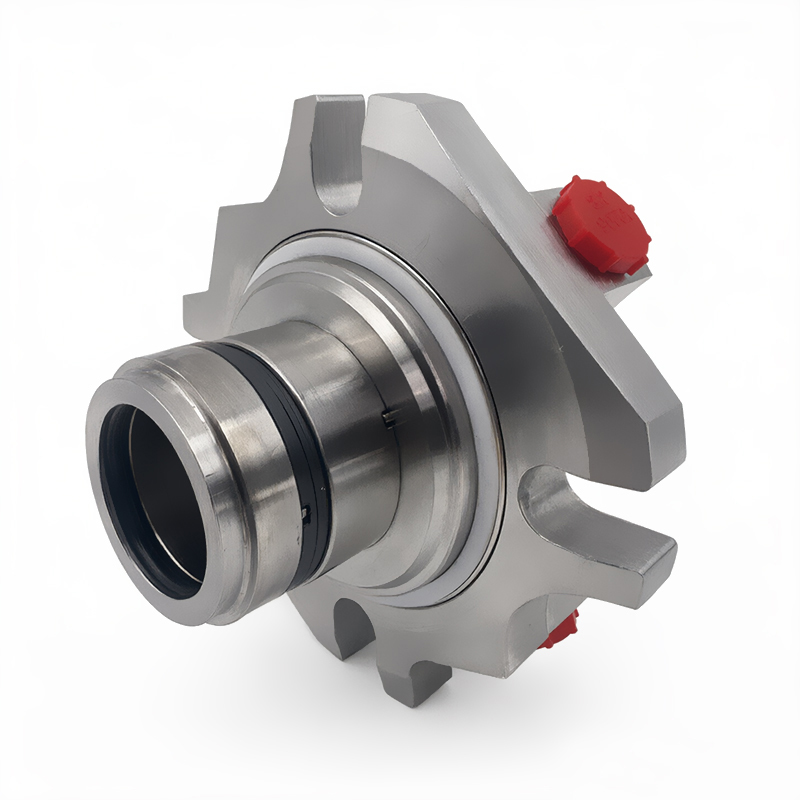

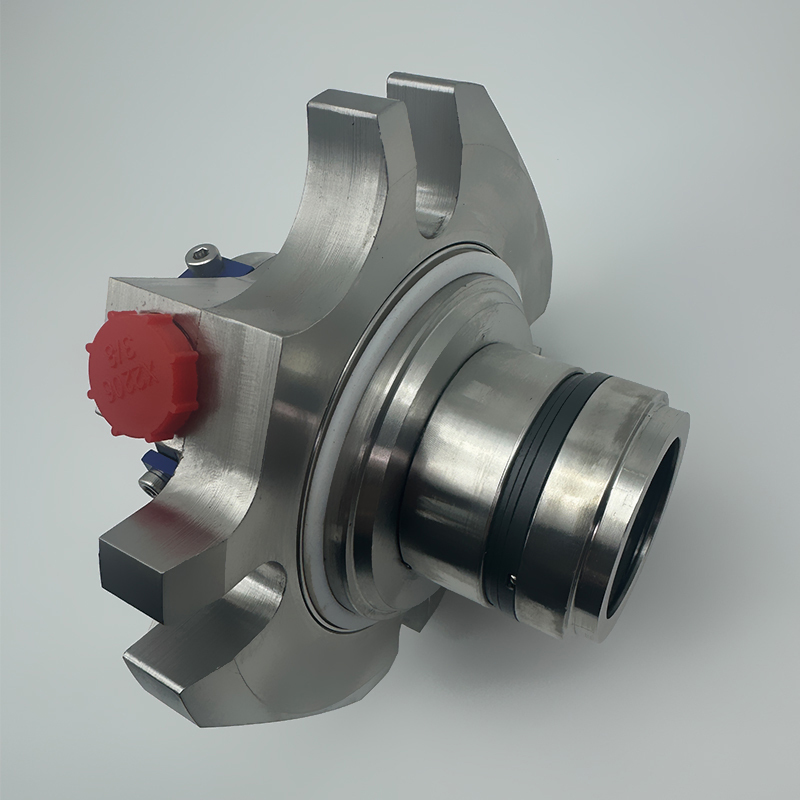

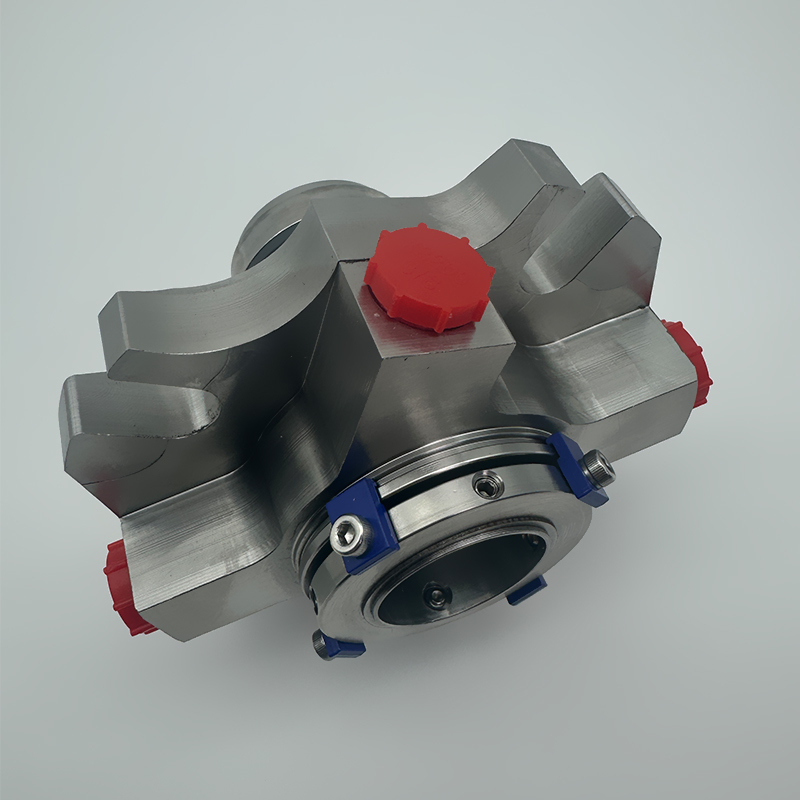

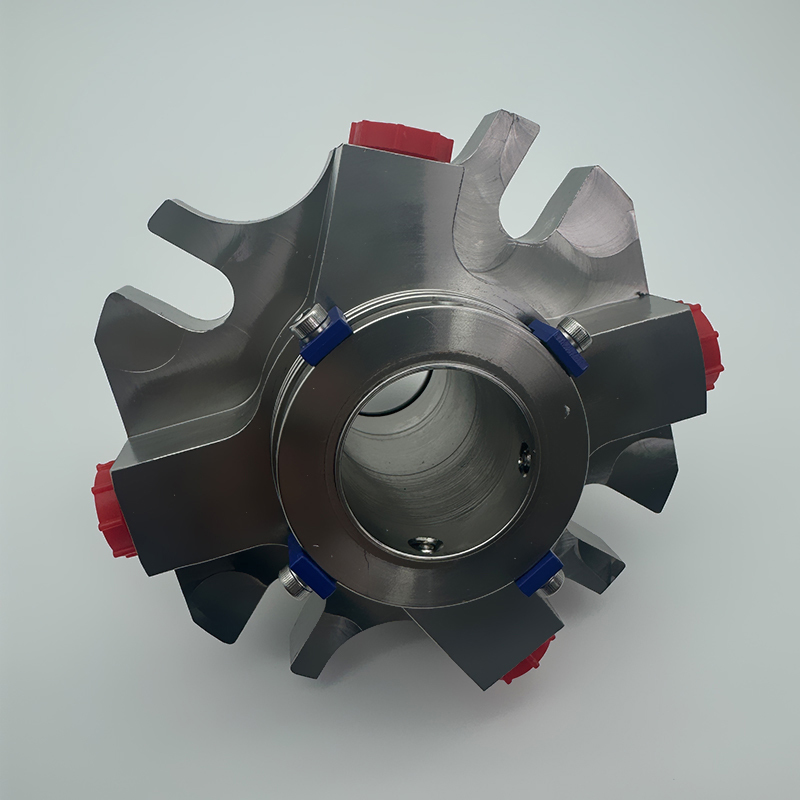

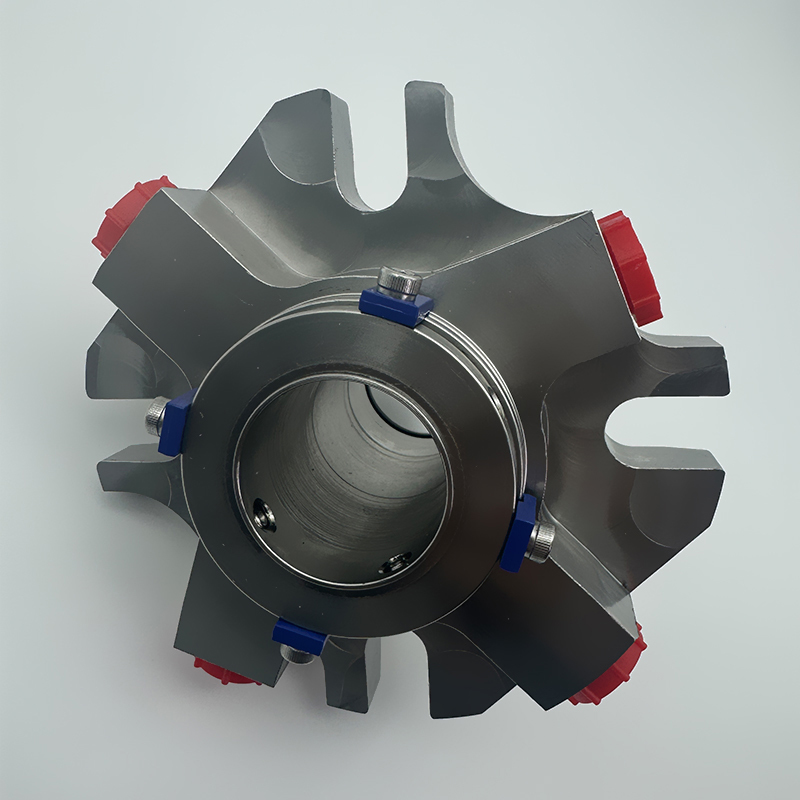

HSP-1032555-60 Cartridge Mechanical Seal John Crane 5620VP for Process Pumps
HSP-1032555-60 Cartridge Mechanical Seal John Crane 5620VP for Process Pumps
HSP-1032555-60 Cartridge Mechanical Seal John Crane 5620VP for Process Pumps
HSP-1032555-60 Cartridge Mechanical Seal John Crane 5620VP for Process Pumps
HSP-1032555-60 Cartridge Mechanical Seal John Crane 5620VP for Process Pumps
HSP-1032555-60 Cartridge Mechanical Seal John Crane 5620VP for Process Pumps
HSP-1032555-60 Cartridge Mechanical Seal John Crane 5620VP for Process Pumps
HSP-1032555-60 Cartridge Mechanical Seal John Crane 5620VP for Process Pumps
HSP-1032555-60 Cartridge Mechanical Seal John Crane 5620VP for Process Pumps
HSP-1032555-60 Cartridge Mechanical Seal John Crane 5620VP for Process Pumps
Specifications
Certification :
ISO9001
Temperature :
400°F/205°C
Brand Name :
BESTSEAL
Model NO. :
HSP-1032555-60
Place of Origin :
CHINA
Pressure :
300 psi(g)/21 bar(g) for sizes up to 3.000"/75mm, 200 psi(g)/13 bar(g) for sizes larger than 3.000"/75mm
Model Number :
HSP-1032555-60
Structure :
Double End
Delivery Time :
15 working days
MOQ :
1pc
Packaging Details :
Carton
Linear Speed :
5000fpm/25m/s
Supply Ability :
1000000/Month
Application :
Process pumps, Other rotating equipment
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Specification :
Ø1.375"
Description

HSP-1032555-60 Cartridge Mechanical Seal John Crane 5620VP Dual Seals for Process Pumps

HSP-1032555-60

Type 5620VP O-Ring Pusher Seals

Universal Cartridge Seal Family — Dual Cartridge O-ring Seal

The Type 5620VP is a dual-cartridge arrangement using the ear drive O-ring pusher seal head.

Designs available conform to API 682, Category 1

Recommended Applications

  • Process pumps
  • Other rotating equipment

Features

  • Incorporates an elastomer O-ring as the secondary sealing member.
  • Primary ring and mating ring reverse balance designs allow for ID or OD pressurization, which permits the dual seal to operate as a low-pressure barrier tandem seal or a high-pressure barrier double seal.
  • OD pressurization of the outboard seal avoids subjecting components to high tensile stresses and achieves improved cooling. On vertical installations, it allows venting of entrapped air.
  • Reversible seal head.
  • Non-clogging wave spring outside the product; fits ANSI and ISO seal chambers.
  • Optimized primary ring design for greater reliability.
  • Set screwless outboard seal drive.
