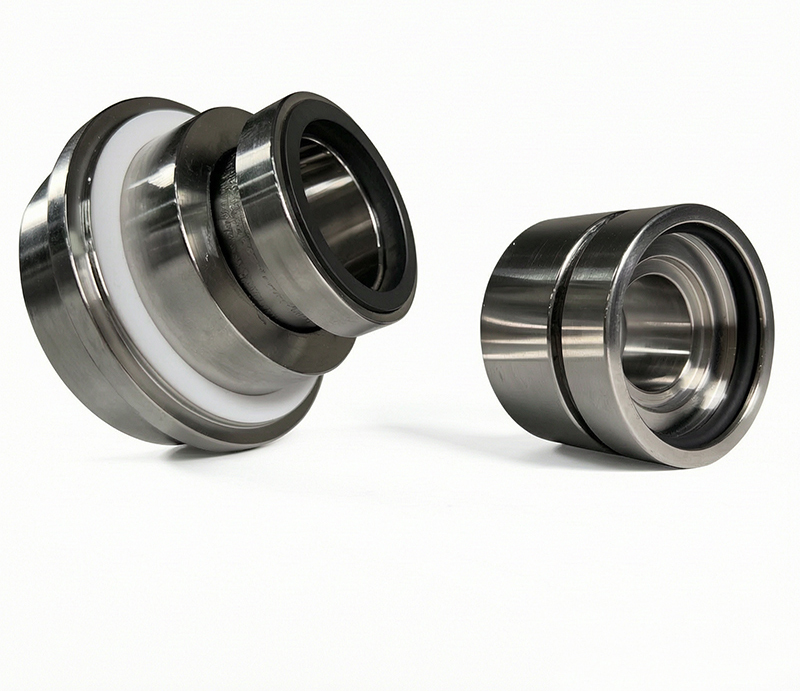

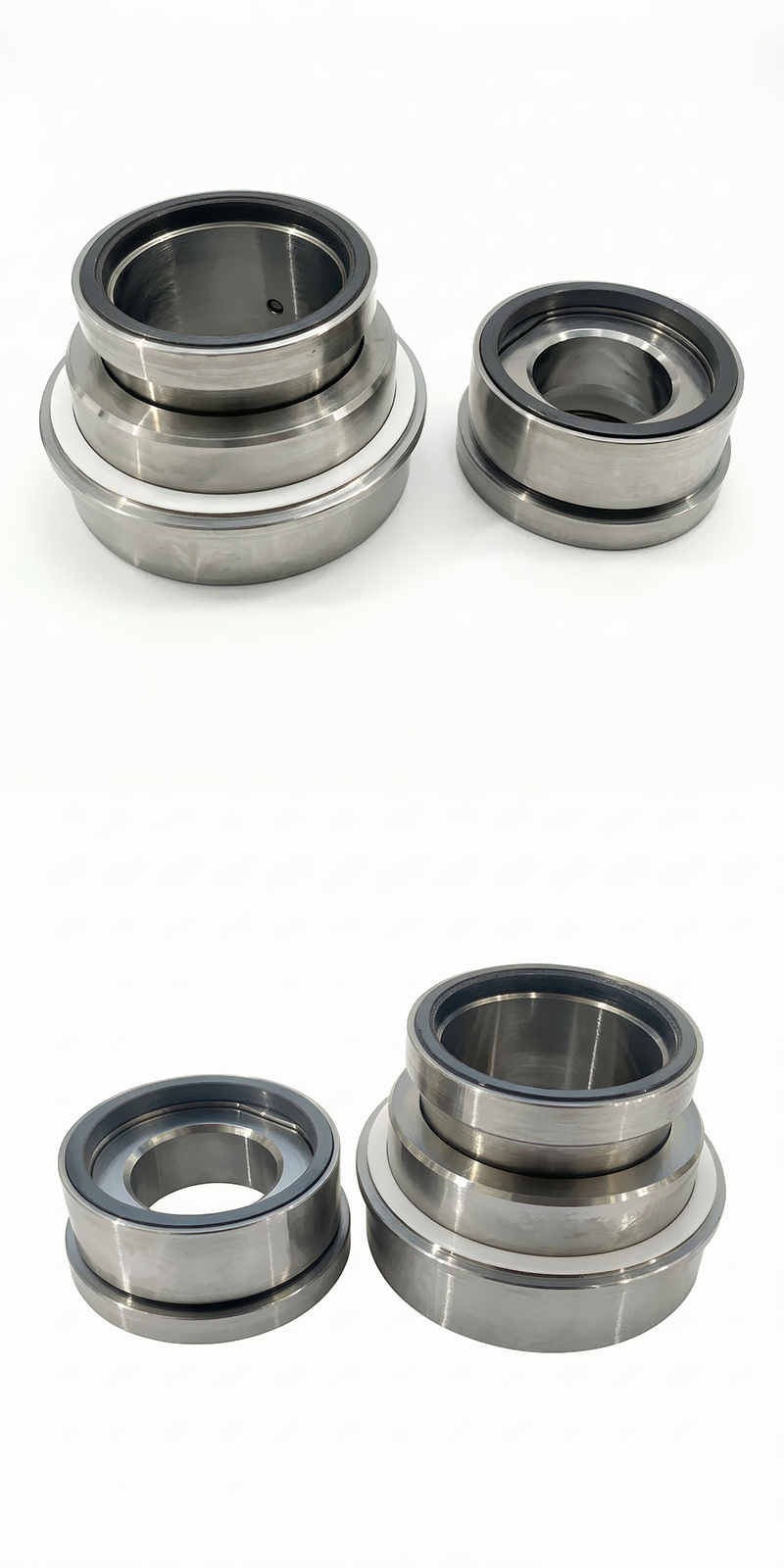

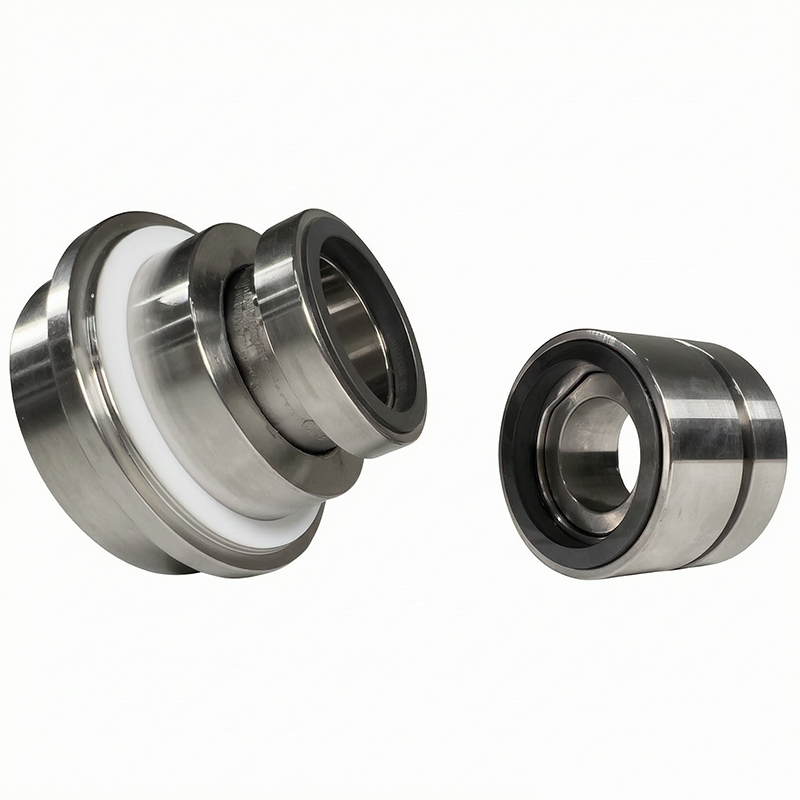

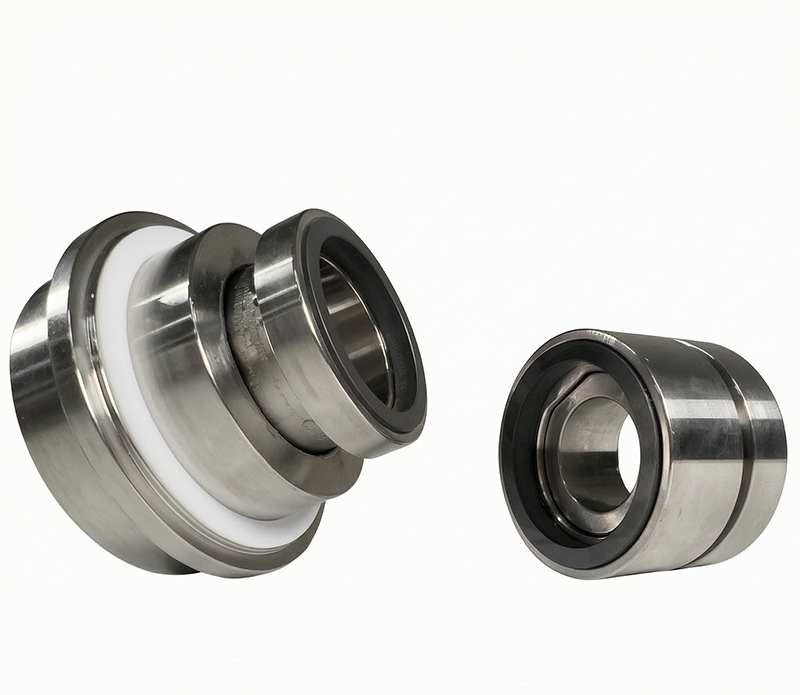

John Crane Safematic Type SE1F-AP Single Cartridge Mechanical Seal for Sulzer APP Pumps
John Crane Safematic Type SE1F-AP Single Cartridge Mechanical Seal for Sulzer APP Pumps
John Crane Safematic Type SE1F-AP Single Cartridge Mechanical Seal for Sulzer APP Pumps
John Crane Safematic Type SE1F-AP Single Cartridge Mechanical Seal for Sulzer APP Pumps
John Crane Safematic Type SE1F-AP Single Cartridge Mechanical Seal for Sulzer APP Pumps
John Crane Safematic Type SE1F-AP Single Cartridge Mechanical Seal for Sulzer APP Pumps
John Crane Safematic Type SE1F-AP Single Cartridge Mechanical Seal for Sulzer APP Pumps
John Crane Safematic Type SE1F-AP Single Cartridge Mechanical Seal for Sulzer APP Pumps
Specifications
Delivery Time :
15 working days
Metal parts :
SS329/SS316/Titanium/ Alloy 20
Model Number :
Type SE1F-AP
Pressure :
≤1,5 MPa
MOQ :
1pc
Packaging Details :
Carton
Stationary ring :
SIC
Supply Ability :
1000000/Month
Spring :
SS316
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Secondary sealing :
PTFE, EPDM, Viton, FFKM
Certification :
ISO9001
Speed :
≤20 m/s
Brand Name :
BESTSEAL
Temperature :
-20 ~ 130 ºC
Place of Origin :
CHINA
Rotating ring :
Carbon / SIC
Description

John Crane Safematic Type SE1F-AP Single Cartridge Mechanical Seal for Sulzer APP Pumps

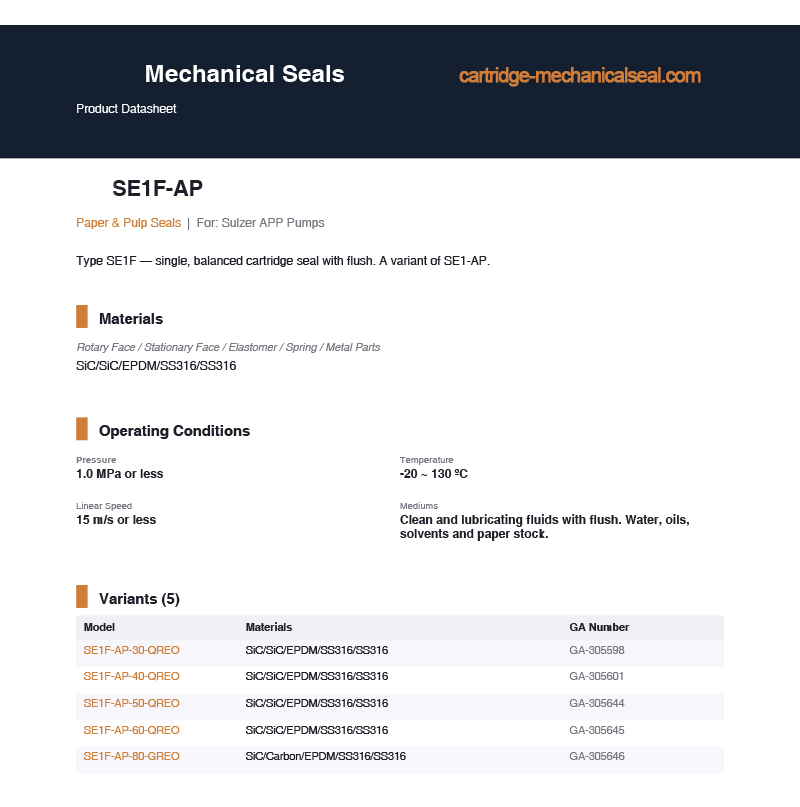

Mechanical Seal SE1F-AP

Type SE1F — single, balanced cartridge seal with flush. A variant of SE1-AP.

Materials

Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts

SiC/SiC/EPDM/SS316/SS316

Model Materials GA
SE1F-AP-30-QREO SiC/SiC/EPDM/SS316/SS316 GA-305598
SE1F-AP-40-QREO SiC/SiC/EPDM/SS316/SS316 GA-305601
SE1F-AP-50-QREO SiC/SiC/EPDM/SS316/SS316 GA-305644
SE1F-AP-60-QREO SiC/SiC/EPDM/SS316/SS316 GA-305645
SE1F-AP-80-GREO SiC/Carbon/EPDM/SS316/SS316 GA-305646

Temperature: -20°C ~ 130°C

Pressure: ≤1,5 MPa

Speed: ≤20 m/s

Materials:

  • Rotating ring: Carbon / SIC;
  • Stationary ring: SIC;
  • Secondary sealing: PTFE, EPDM, Viton, FFKM;
  • Spring: SS316;
  • Metal parts: SS329/SS316/Titanium/ Alloy 20.

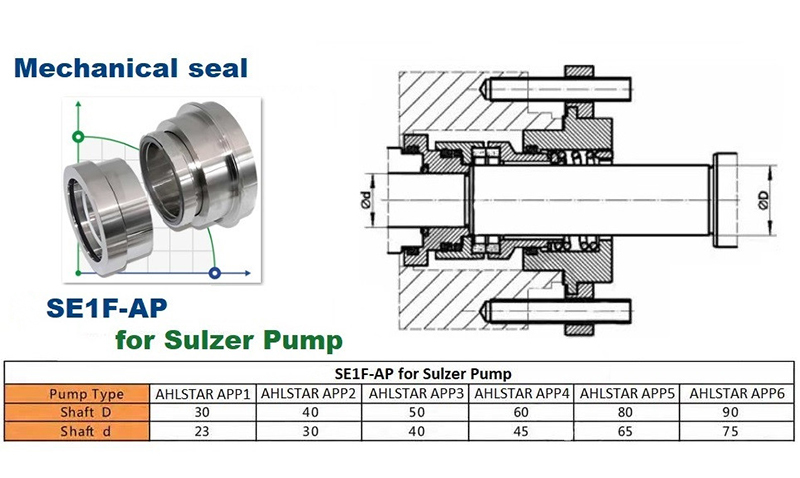

Single Cartridge Seal for Sulzer Pumps SE1F-AP is a pre-assembled unit (OEM standard) for use in Sulzer Ahlstar APP / APT 1/2/3/4/5 technological pumps.

The SE1F-AP type is a single, balanced cartridge seal with flushing. It is independent of the direction of rotation.

The spring of the seal is located in the stationary part, and therefore shaft misalignment does not cause wear on the spring or sealing rings. It is easy to install, requiring no measurements, which reduces the risk of error.

For plans API 11, 21, 32, 62.

Types: John Crane Safematic SE1F, Burgmann LP-Q, Sulzer TB1F, AESSEAL CKSA™.

Sulzer items:

  • SE1F-AP-30-QREO - 305598
  • SE1F-AP-40-QREO - 305601
  • SE1F-AP-50-QREO - 305644
  • SE1F-AP-60-QREO - 305645
  • SE1F-AP-80-QREO - 305646
  • SE1F-AP-90-QREO - 305647
  • SE1F-AP-1.181-QRVO - 305798
  • SE1F-AP-1.575-QRVO - 305799
  • SE1F-AP-1.969-QRVO - 305800
  • SE1F-AP-2.362-QRVO - 305801
  • SE1F-AP-3.15-QRVO - 305802

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress
  • BESTSEAL Cartridge Mechanical Seals
  • Your Fast-Track Alternative to John Crane Type SE1F-AP
  • Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
