John Crane Safematic JCS1C Single Cartridge Mechanical Seal for Andritz Pumps
John Crane Safematic JCS1C Single Cartridge Mechanical Seal for Andritz Pumps
John Crane Safematic JCS1C Single Cartridge Mechanical Seal for Andritz Pumps
John Crane Safematic JCS1C Single Cartridge Mechanical Seal for Andritz Pumps
John Crane Safematic JCS1C Single Cartridge Mechanical Seal for Andritz Pumps
John Crane Safematic JCS1C Single Cartridge Mechanical Seal for Andritz Pumps
John Crane Safematic JCS1C Single Cartridge Mechanical Seal for Andritz Pumps
John Crane Safematic JCS1C Single Cartridge Mechanical Seal for Andritz Pumps
John Crane Safematic JCS1C Single Cartridge Mechanical Seal for Andritz Pumps
John Crane Safematic JCS1C Single Cartridge Mechanical Seal for Andritz Pumps
Specifications
Brand Name :
BESTSEAL
Temperature :
-20 ~ 120 ºC
Place of Origin :
MADE IN CHINA
Linear Speed :
15 m/s or less
Materials :
SiC/SiC/EPDM/HC276/SS316
Certification :
ISO9001
Pressure :
1.0 MPa or less
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Delivery Time :
15 working days
Supply Ability :
1000000/Month
MOQ :
1pc
Model Number :
Type JCS1C
Mediums :
Environmentally clean and lubricating liquids with low consistency (< 2%), water, oils, solvents and pulp.
Packaging Details :
Carton
Description

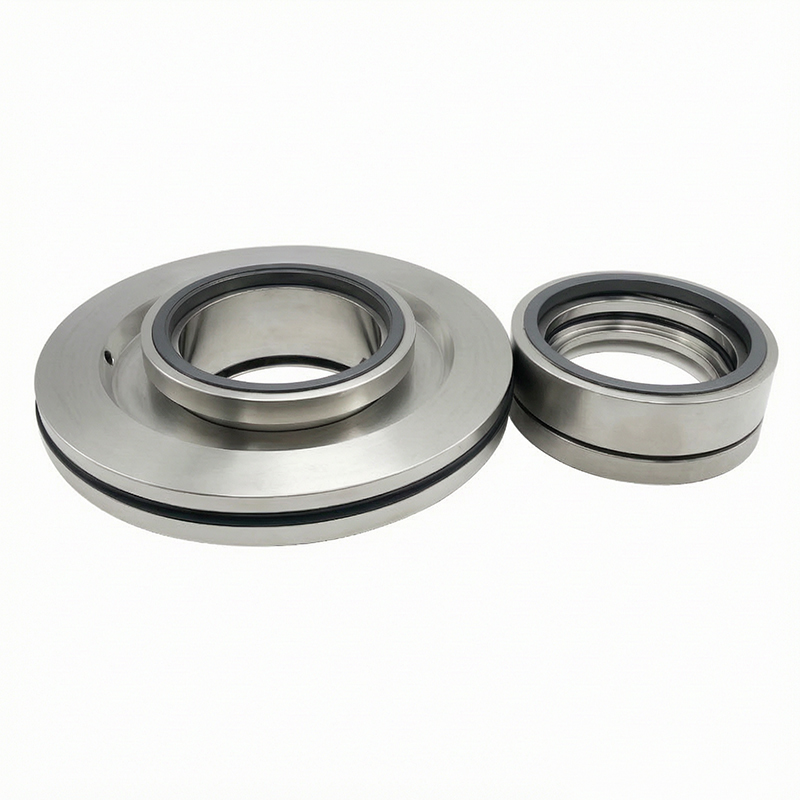

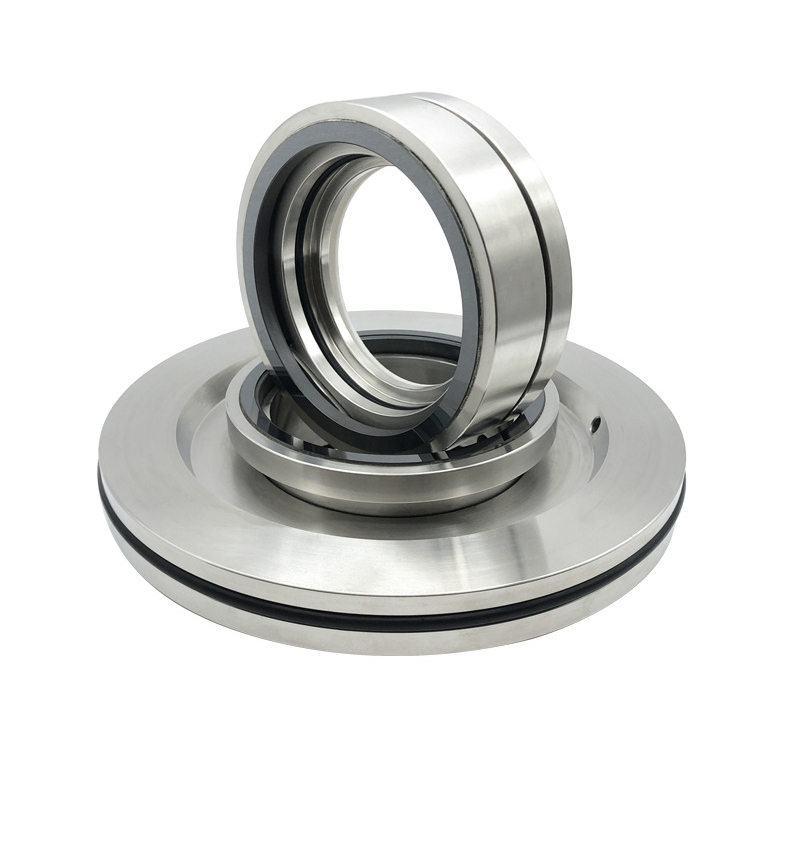

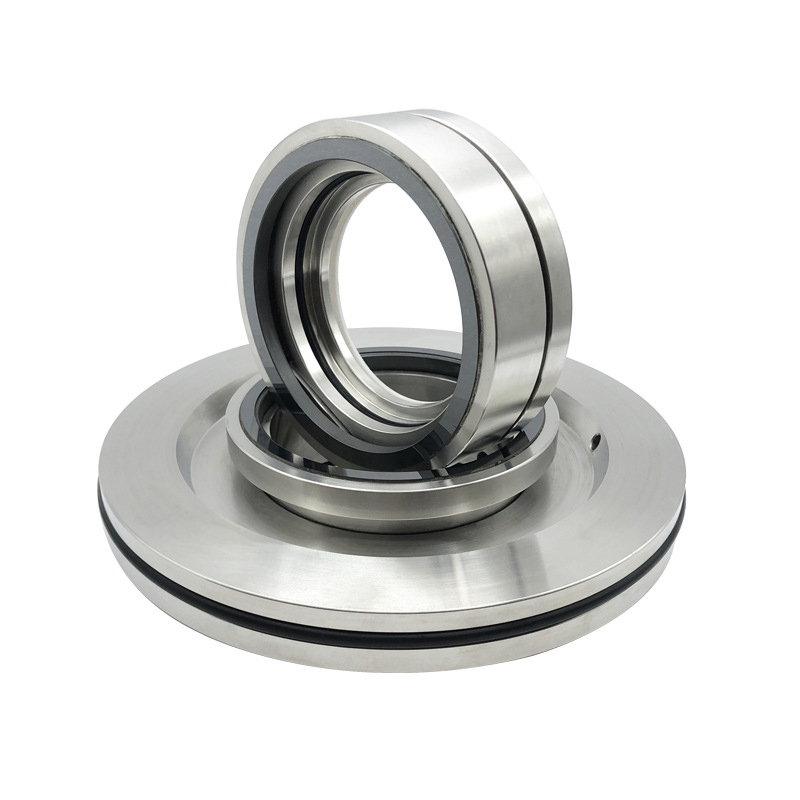

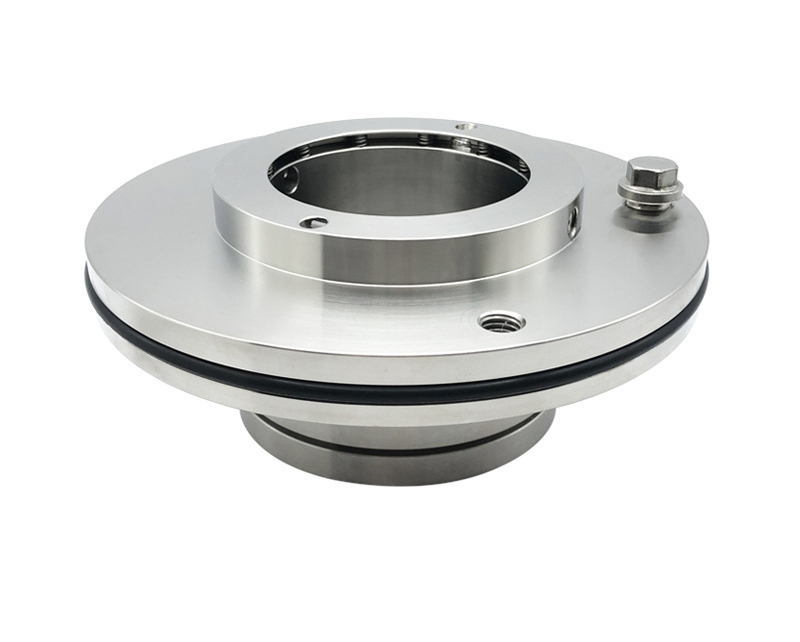

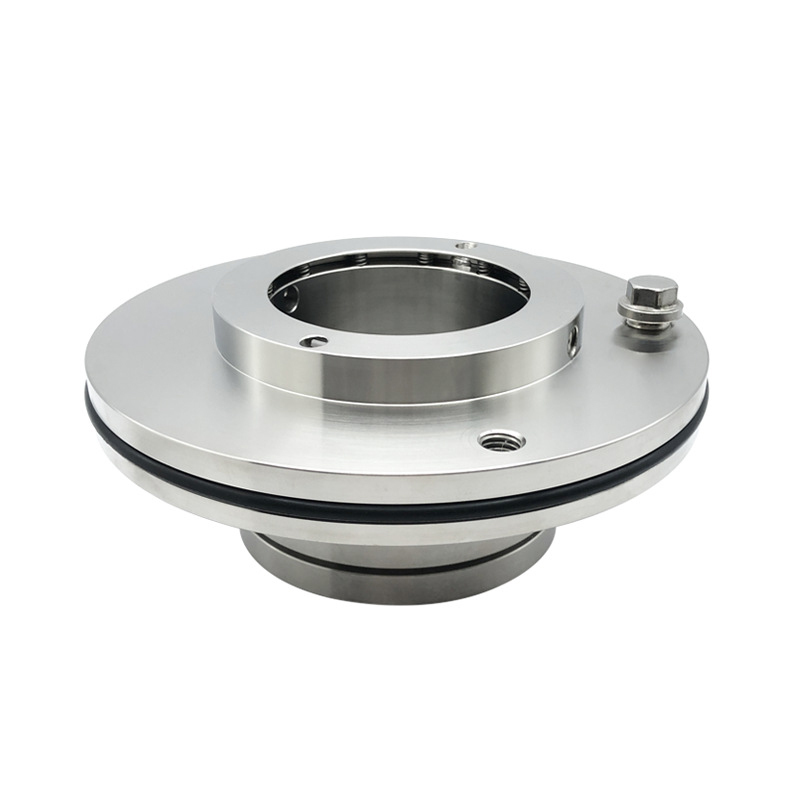

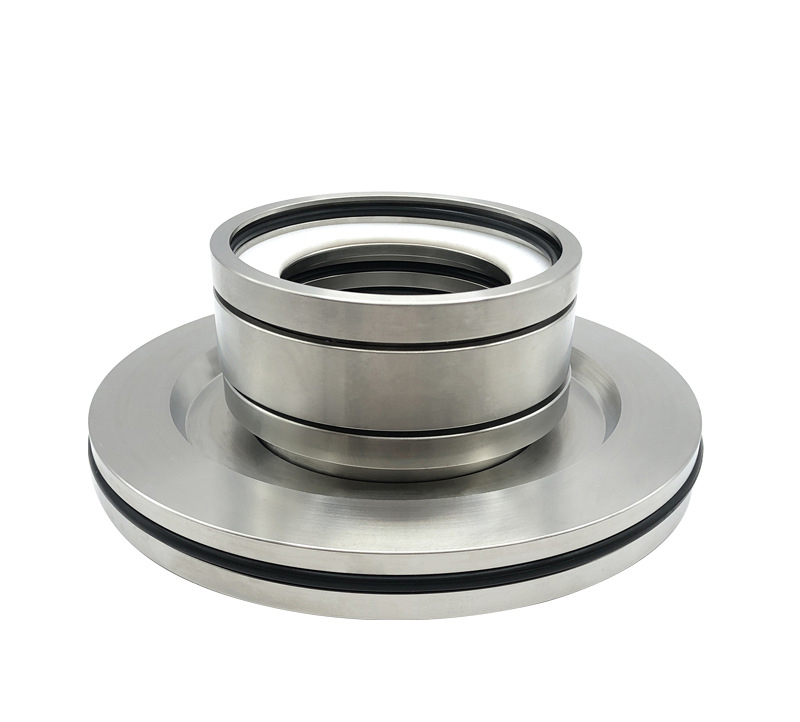

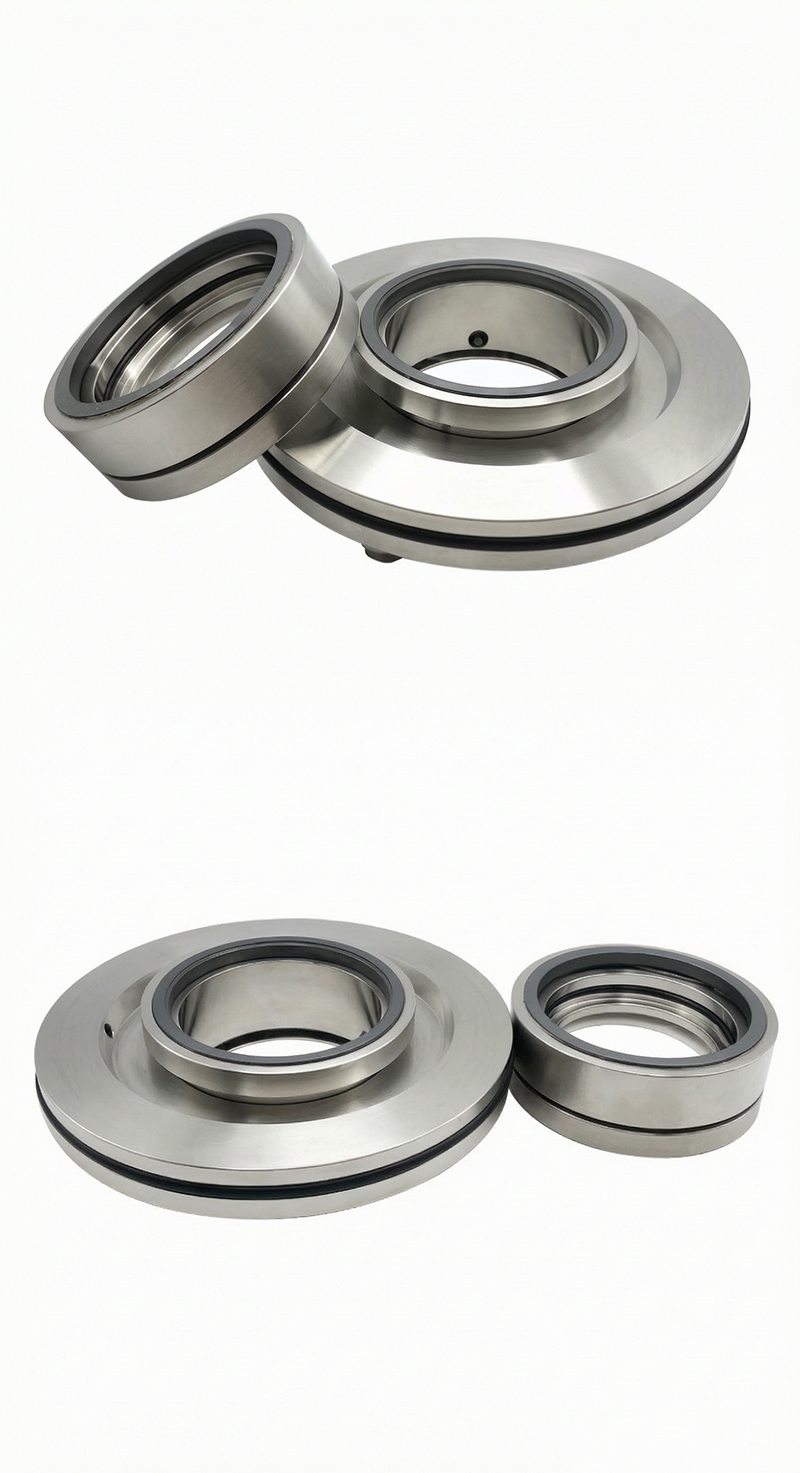

John Crane Safematic JCS1C Single Cartridge Mechanical Seal for Andritz Pumps


Type JCS1C O-Ring Pusher Seal

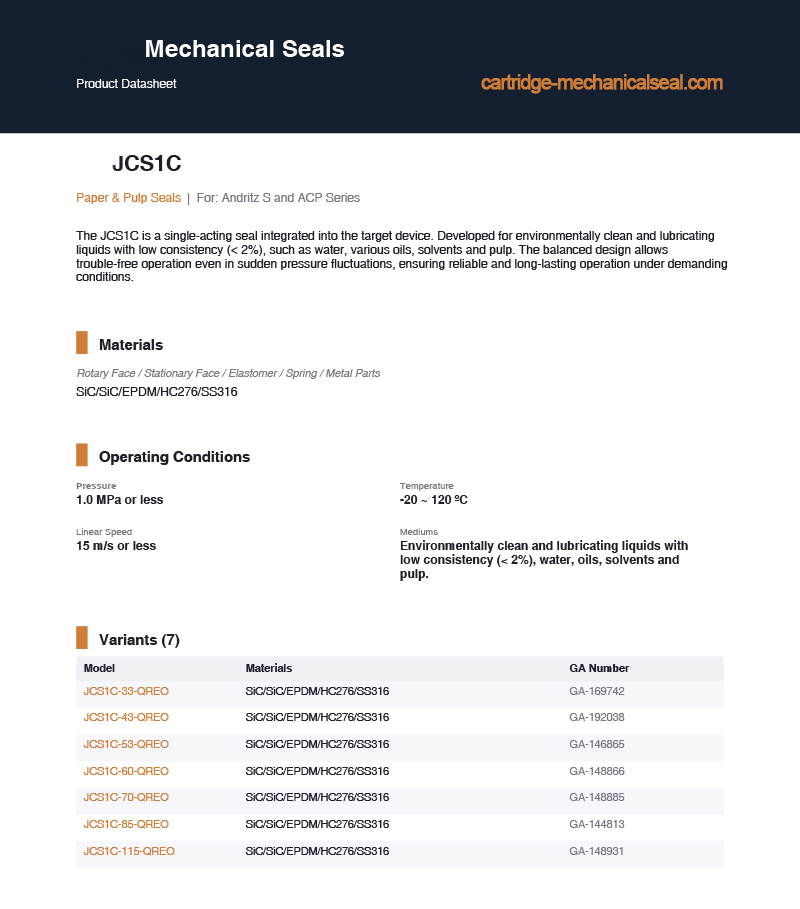

JCS1C

For: Andritz S and ACP Series

The JCS1C is a single-acting seal integrated into the target device. Developed for environmentally clean and lubricating liquids with low consistency (< 2%), such as water, various oils, solvents and pulp. The balanced design allows trouble-free operation even in sudden pressure fluctuations, ensuring reliable and long-lasting operation under demanding conditions.

Materials

Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts

SiC/SiC/EPDM/HC276/SS316

Model Materials GA
JCS1C-33-QREO SiC/SiC/EPDM/HC276/SS316 GA-169742
JCS1C-43-QREO SiC/SiC/EPDM/HC276/SS316 GA-192038
JCS1C-53-QREO SiC/SiC/EPDM/HC276/SS316 GA-146865
JCS1C-60-QREO SiC/SiC/EPDM/HC276/SS316 GA-148866
JCS1C-70-QREO SiC/SiC/EPDM/HC276/SS316 GA-148885
JCS1C-85-QREO SiC/SiC/EPDM/HC276/SS316 GA-144813
JCS1C-115-QREO SiC/SiC/EPDM/HC276/SS316 GA-148931

Pressure: 1.0 MPa or less

Temperature: -20 ~ 120 ºC

Linear Speed: 15 m/s or less

Mediums: Environmentally clean and lubricating liquids with low consistency (< 2%), water, oils, solvents and pulp.

Customization Available: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress
  • BESTSEAL Cartridge Mechanical Seals
  • Your Fast-Track Alternative to John Crane Type JCS1C
  • Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
