John Crane Safematic JCS2A Cartridge Mechanical Seal for Andritz ACP Pumps
John Crane Safematic JCS2A Cartridge Mechanical Seal for Andritz ACP Pumps
John Crane Safematic JCS2A Cartridge Mechanical Seal for Andritz ACP Pumps
John Crane Safematic JCS2A Cartridge Mechanical Seal for Andritz ACP Pumps
John Crane Safematic JCS2A Cartridge Mechanical Seal for Andritz ACP Pumps
John Crane Safematic JCS2A Cartridge Mechanical Seal for Andritz ACP Pumps
John Crane Safematic JCS2A Cartridge Mechanical Seal for Andritz ACP Pumps
John Crane Safematic JCS2A Cartridge Mechanical Seal for Andritz ACP Pumps
John Crane Safematic JCS2A Cartridge Mechanical Seal for Andritz ACP Pumps
John Crane Safematic JCS2A Cartridge Mechanical Seal for Andritz ACP Pumps
Specifications
Metal parts :
SS329/SS316/Titanium/ Alloy 20
Delivery Time :
15 working days
Temperature :
-20 ~ 120 ºC
Model Number :
Type JCS2A
Spring :
SS316
MOQ :
1pc
Packaging Details :
Carton
Secondary sealing :
PTFE, EPDM, Viton, FFKM
Supply Ability :
1000000/Month
Rotating ring :
Carbon / SIC
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Linear Speed :
15 m/s or less
Certification :
ISO9001
Pressure :
1.5 MPa or less
Brand Name :
BESTSEAL
Stationary ring :
SIC
Place of Origin :
CHINA
Description

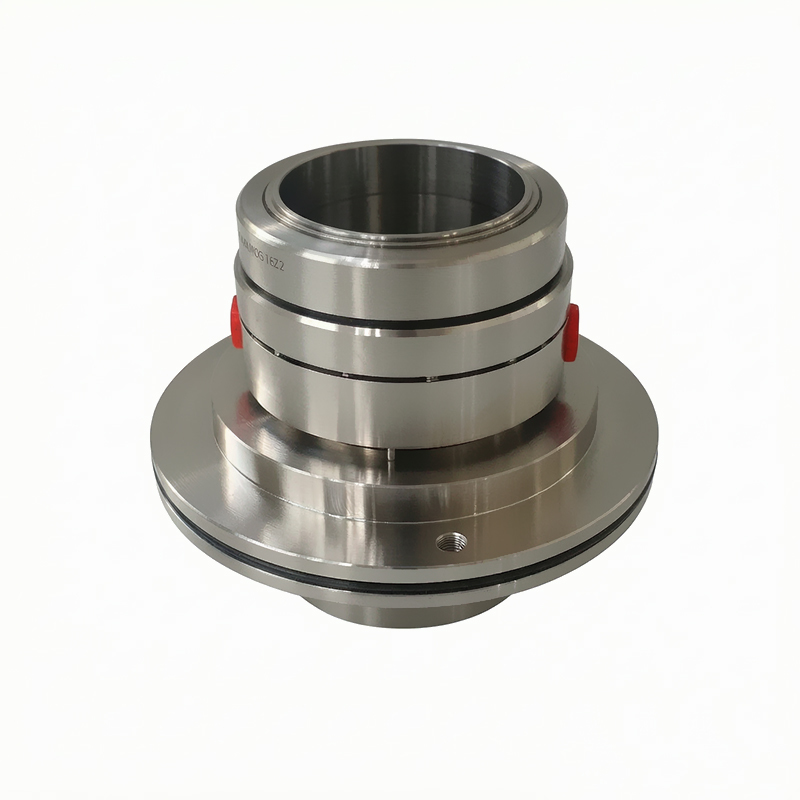

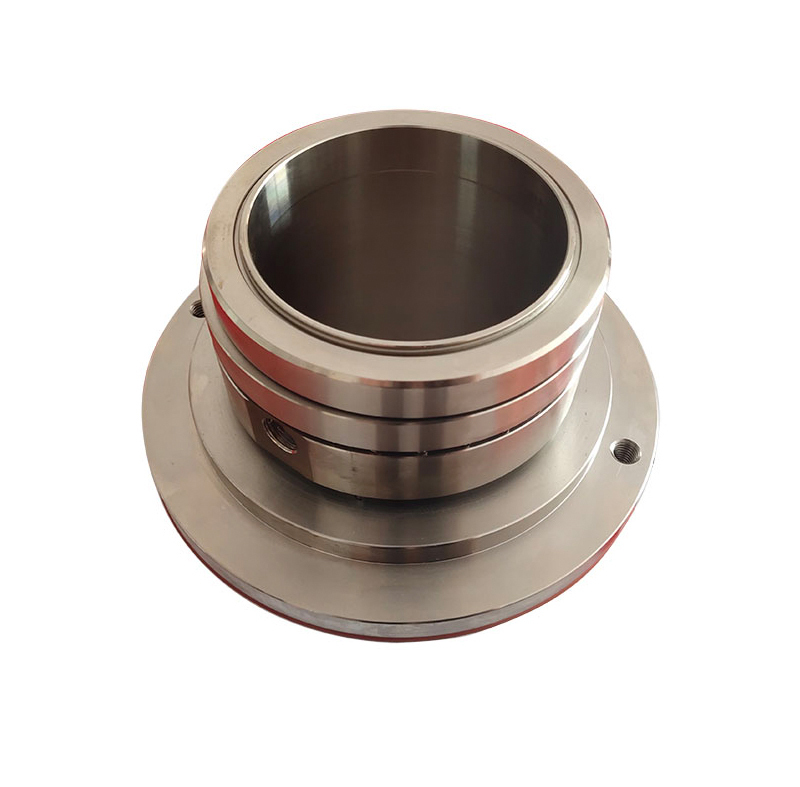

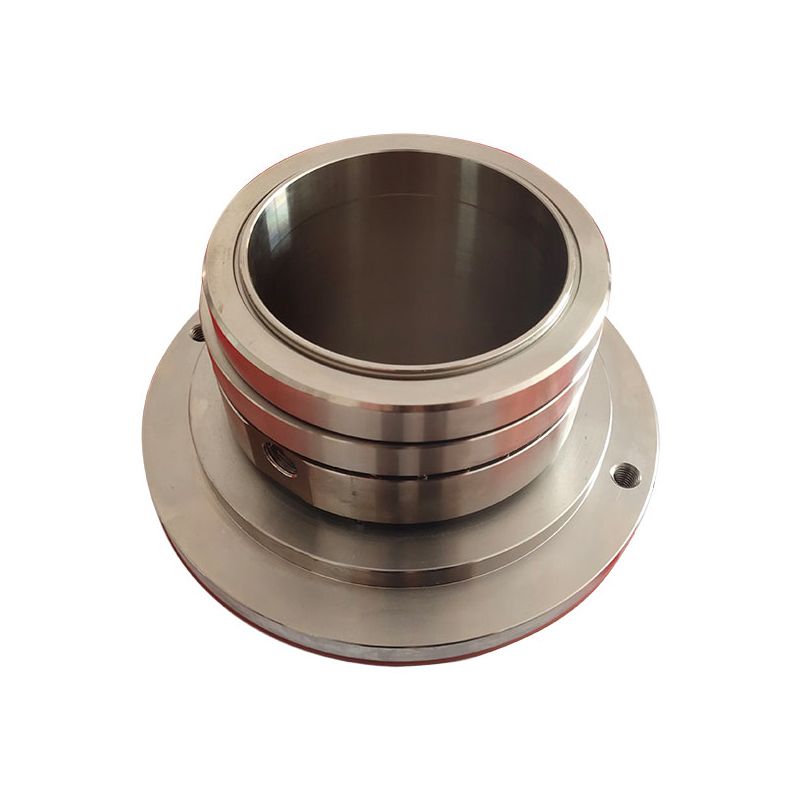

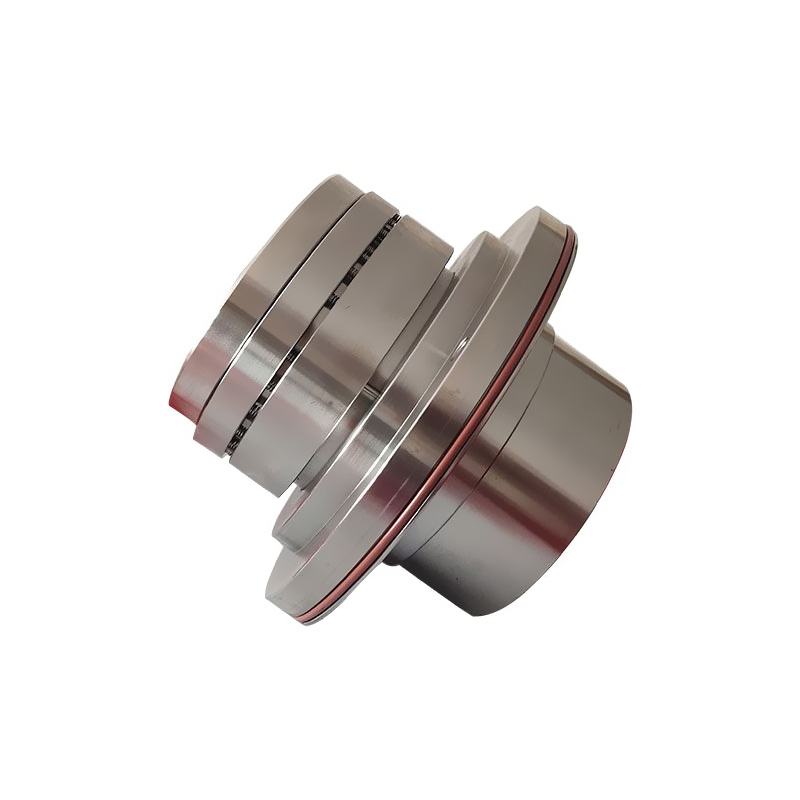

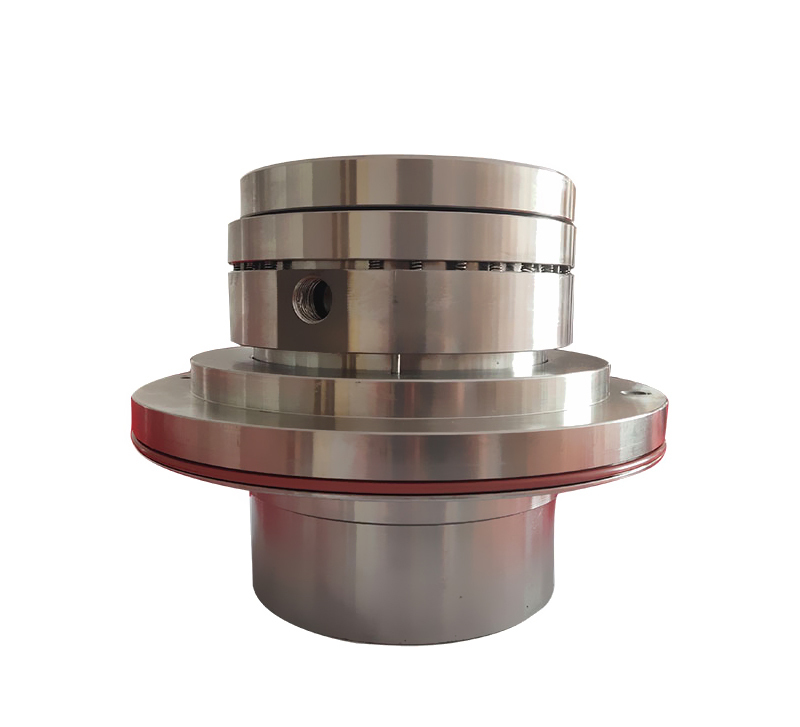

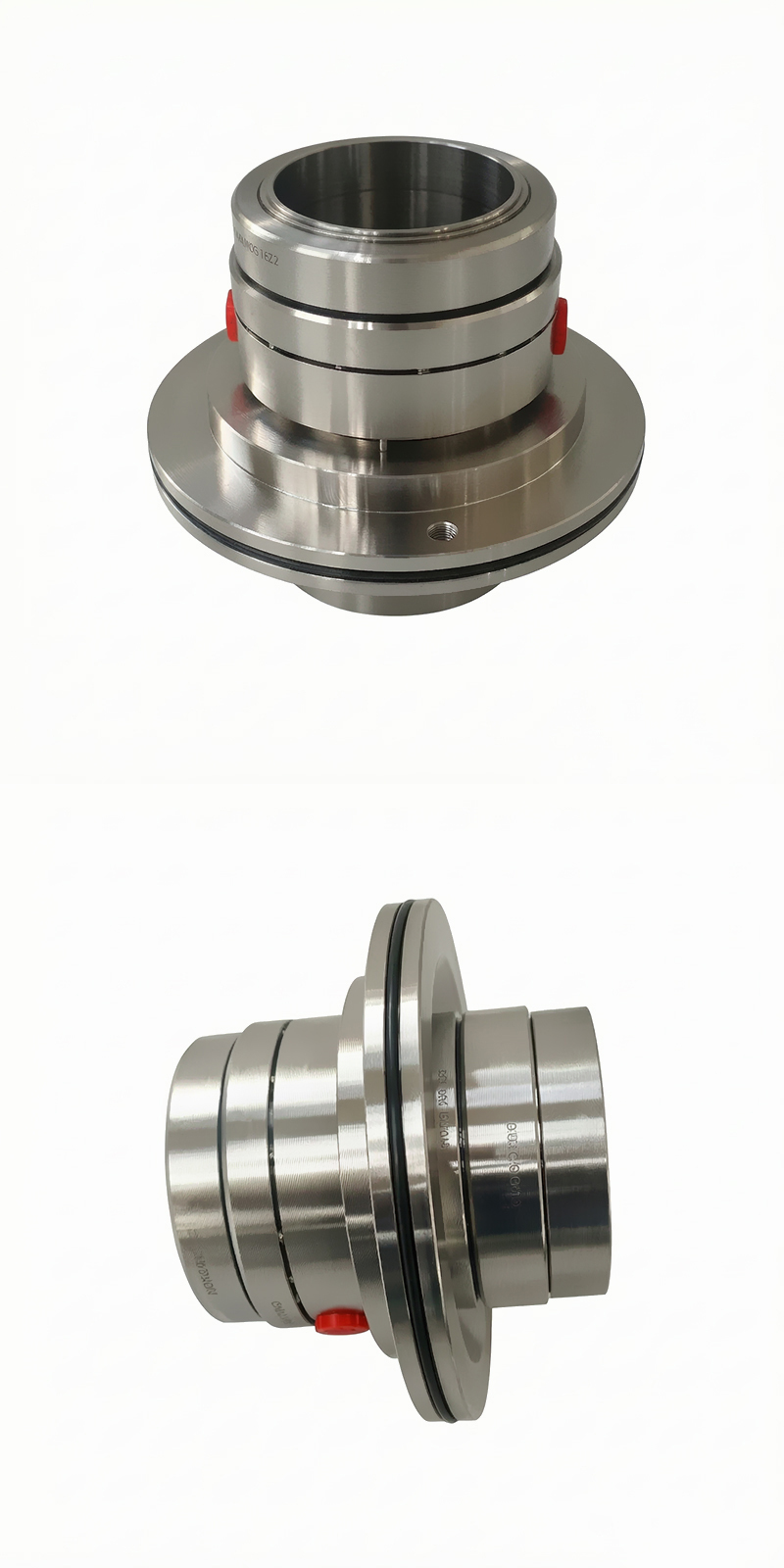

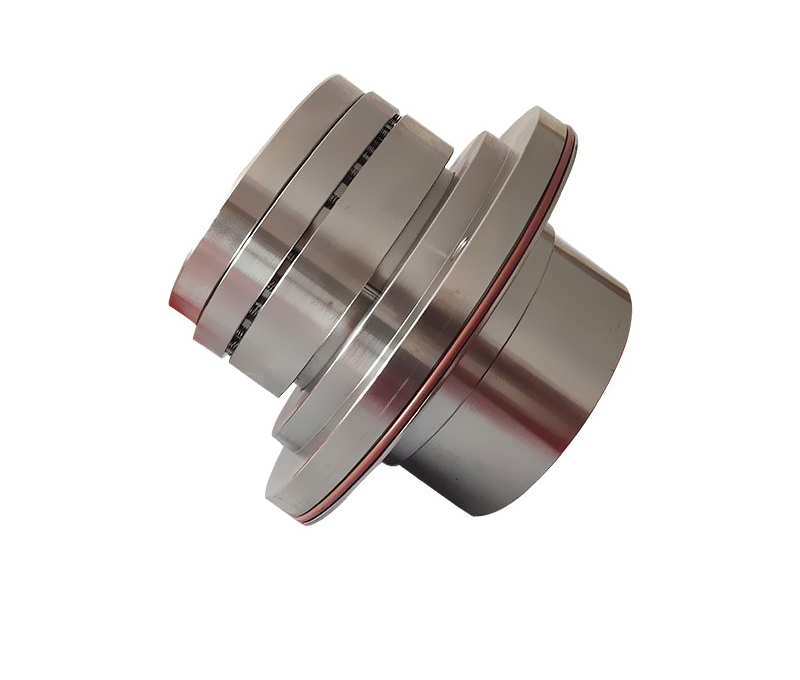

John Crane Safematic Type JCS2A Double Cartridge Mechanical Seal for Andritz ACP Pumps


Type JCS2A O-Ring Pusher Seal

Integrated Double Mechanical Seal for Demanding Conditions

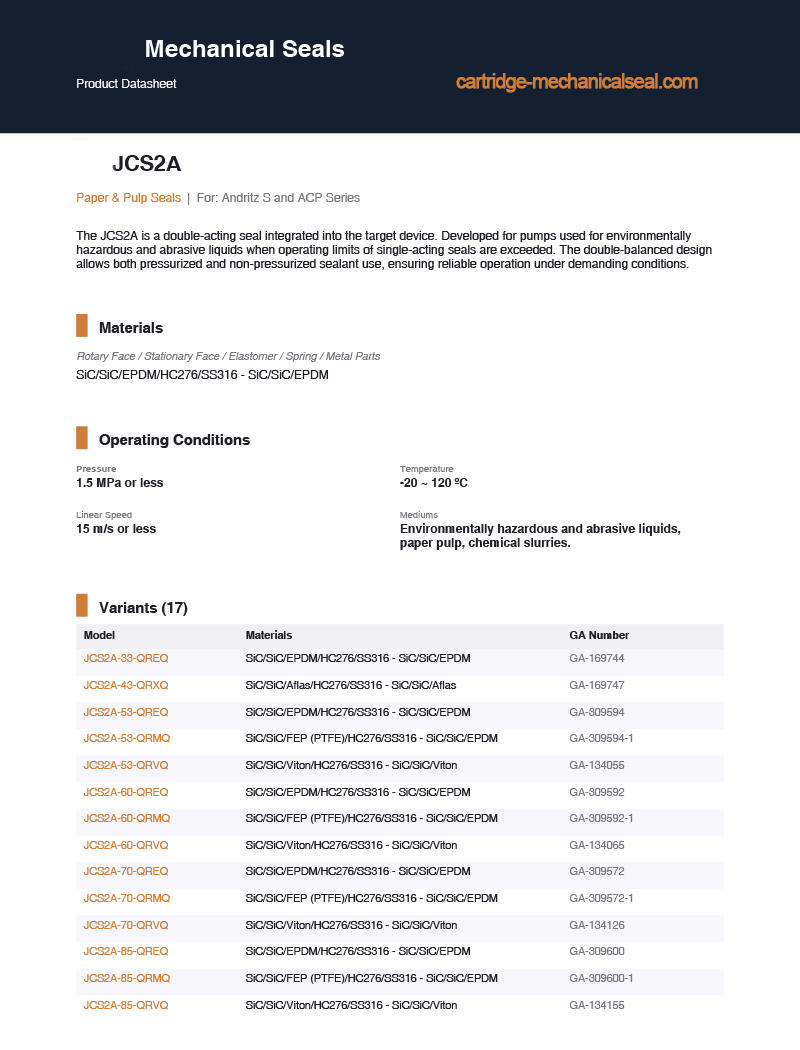

JCS2A — Double application-specific seal for Sulzer liquid ring pumps and Andritz ACP pumps

JCS2A

For: Andritz S and ACP Series

The JCS2A is a double-acting seal integrated into the target device. Developed for pumps used for environmentally hazardous and abrasive liquids when operating limits of single-acting seals are exceeded. The double-balanced design allows both pressurized and non-pressurized sealant use, ensuring reliable operation under demanding conditions.

Materials

Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts

SiC/SiC/EPDM/HC276/SS316 - SiC/SiC/EPDM

Model Materials GA
JCS2A-33-QREQ SiC/SiC/EPDM/HC276/SS316 - SiC/SiC/EPDM GA-169744
JCS2A-43-QRXQ SiC/SiC/Aflas/HC276/SS316 - SiC/SiC/Aflas GA-169747
JCS2A-53-QREQ SiC/SiC/EPDM/HC276/SS316 - SiC/SiC/EPDM GA-309594
JCS2A-53-QRMQ SiC/SiC/FEP (PTFE)/HC276/SS316 - SiC/SiC/EPDM GA-309594-1
JCS2A-53-QRVQ SiC/SiC/Viton/HC276/SS316 - SiC/SiC/Viton GA-134055
JCS2A-60-QREQ SiC/SiC/EPDM/HC276/SS316 - SiC/SiC/EPDM GA-309592
JCS2A-60-QRMQ SiC/SiC/FEP (PTFE)/HC276/SS316 - SiC/SiC/EPDM GA-309592-1
JCS2A-60-QRVQ SiC/SiC/Viton/HC276/SS316 - SiC/SiC/Viton GA-134065
JCS2A-70-QREQ SiC/SiC/EPDM/HC276/SS316 - SiC/SiC/EPDM GA-309572
JCS2A-70-QRMQ SiC/SiC/FEP (PTFE)/HC276/SS316 - SiC/SiC/EPDM GA-309572-1
JCS2A-70-QRVQ SiC/SiC/Viton/HC276/SS316 - SiC/SiC/Viton GA-134126
JCS2A-85-QREQ SiC/SiC/EPDM/HC276/SS316 - SiC/SiC/EPDM GA-309600
JCS2A-85-QRMQ SiC/SiC/FEP (PTFE)/HC276/SS316 - SiC/SiC/EPDM GA-309600-1
JCS2A-85-QRVQ SiC/SiC/Viton/HC276/SS316 - SiC/SiC/Viton GA-134155
JCS2A-115-QREQ SiC/SiC/EPDM/HC276/SS316 - SiC/SiC/EPDM GA-309609
JCS2A-115-QRMQ SiC/SiC/FEP (PTFE)/HC276/SS316 - SiC/SiC/EPDM GA-309609-1
JCS2A-115-QRVQ SiC/SiC/Viton/HC276/SS316 - SiC/SiC/Viton GA-134421

Pressure: 1.5 MPa or less

Temperature: -20 ~ 120 ºC

Linear Speed: 15 m/s or less

Mediums: Environmentally hazardous and abrasive liquids, paper pulp, chemical slurries.

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress
  • BESTSEAL Cartridge Mechanical Seals
  • Your Fast-Track Alternative to John Crane Type JCS2A
  • Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
