5610Q 5610L Carbon Mechanical Seal SS316 O Ring Single Spring Seal
5610Q 5610L Carbon Mechanical Seal SS316 O Ring Single Spring Seal
5610Q 5610L Carbon Mechanical Seal SS316 O Ring Single Spring Seal
5610Q 5610L Carbon Mechanical Seal SS316 O Ring Single Spring Seal
5610Q 5610L Carbon Mechanical Seal SS316 O Ring Single Spring Seal
5610Q 5610L Carbon Mechanical Seal SS316 O Ring Single Spring Seal
5610Q 5610L Carbon Mechanical Seal SS316 O Ring Single Spring Seal
5610Q 5610L Carbon Mechanical Seal SS316 O Ring Single Spring Seal
5610Q 5610L Carbon Mechanical Seal SS316 O Ring Single Spring Seal
5610Q 5610L Carbon Mechanical Seal SS316 O Ring Single Spring Seal
Specifications
Delivery Time :
15 working days
Anti-extrusion ring :
316 stainless steel, Alloy 20CB3 SS (UNS N8020), Alloy C-276 (UNS N10276), Titanium
Spring :
Alloy C-276 (UNS N10276)
Model Number :
Type 5610/5610Q/5610L
Seat/Mating ring :
Sintered silicon carbide, Nickel binder tungsten carbide
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Retainer :
316 stainless steel, Alloy 20CB3 SS (UNS N8020), Alloy C-276 (UNS N10276), Titanium
Certification :
ISO9001
Sleeve :
316 stainless steel, Alloy 20CB3 SS (UNS N8020), Alloy C-276 (UNS N10276), Titanium
MOQ :
1pc
Packaging Details :
Carton
Collar :
316 stainless steel, Alloy 20CB3 SS (UNS N8020), Alloy C-276 (UNS N10276), Titanium
O-ring :
Flouroelastomer, Ethylene Propylene, Perflouroelastomer, Buna-N, Neoprene
Supply Ability :
1000000/Month
Drive ring :
316 stainless steel, Alloy 20CB3 SS (UNS N8020), Alloy C-276 (UNS N10276), Titanium
Quench busing (5610Q) :
Resin-impregnated carbon
Brand Name :
BESTSEAL
Face/Primary ring :
Resin-impregnated carbon, Sintered silicon carbide, Nickel binder tungsten carbide
Place of Origin :
CHINA
Gland plate :
316 stainless steel, Alloy 20CB3 SS (UNS N8020), Alloy C-276 (UNS N10276), Titanium
Gland gasket :
Glass-filled PTFE
Description

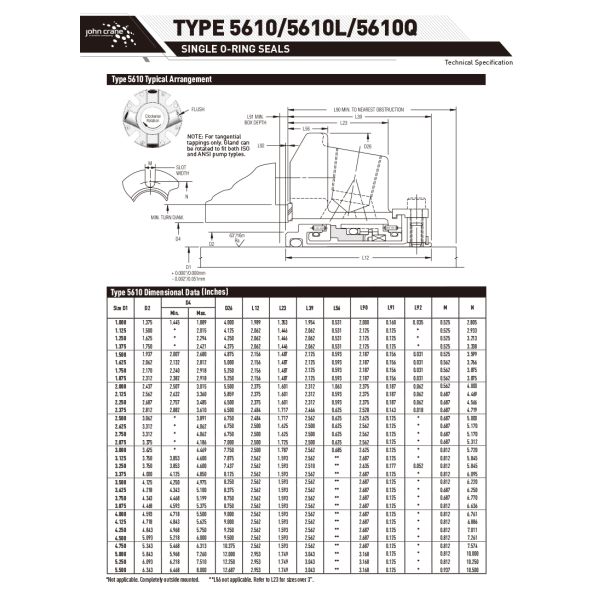

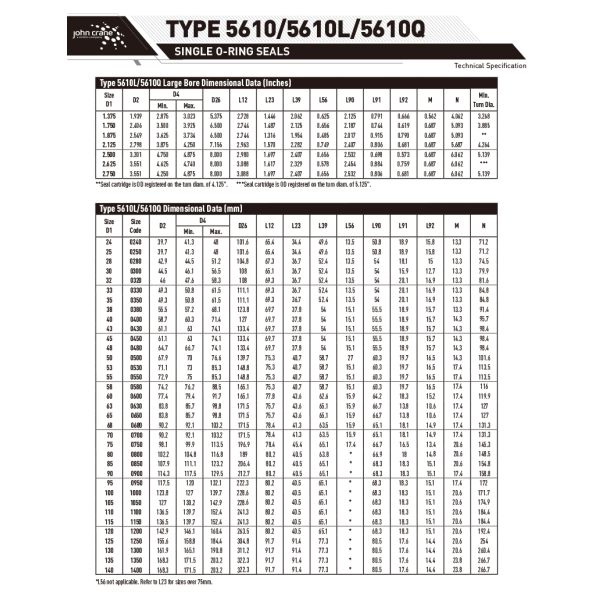

John Crane Type 5610 5610Q 5610L Single Cartridge Mechanical Seal for Pumps
Type 5610/5610Q/5610L O-Ring Pusher
Universal Cartridge Seal Family — Single Cartridge O-Ring Seal

As the first truly universal cartridge seal, the modular family concept of John Crane's Universal Cartridge Seal series will change your approach to sealing. Since the Type 5600 Series components are interchangeable, you can apply one seal family throughout your plant. This gives you the flexibility to cover more applications with less inventory, which means your maintenance is simplified, downtime is reduced, plant operating efficiency is increased and costs are lowered.

The Type 5610 seal is a single cartridge o-ring pusher seal.

The Type 5610Q seal provides a quench gland with carbon ring throttle bushing.

The Type 5610L seal provides a quench gland with lip seal.

Features
  • Incorporates an elastomer O-ring as the secondary sealing member.
  • A common seal head/mating ring set, utilized throughout all versions, is reversible to allow rotating seat/mating ring or rotating seal head operation, and is interchangeable with metal bellows seal heads.
  • Reversible seal head.
  • Fits ANSI, ISO and DIN seal chambers.
  • Optimized primary ring design for greater reliability.
  • Non-clogging wave spring outside the product.
  • 5610Q designs available conforming to API 682, Category 1.

Performance Capabilities

Temperature Limits 400°F/205°C
Pressure Limits

300 psi(g)/21 bar(g) for sizes up to 3.000"/75mm

200 psi(g)/13 bar(g) for sizes larger than 3.000"/75mm
Speed Limits 5000fpm/25m/s
End play/axial float allowance ±0.1mm
Brand BESTSEAL
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well
Recommended Applications

Process pumps

Other rotating equipment

Mixer and agitators

"15 years in mechanical seals.

we quote in 3 hours, deliver production drawing in 24 hours, and ship in 15–20 working days.

From 1 piece. Real-time tracking. Direct alternative to John Crane Type 5610/5610Q/5610L."
