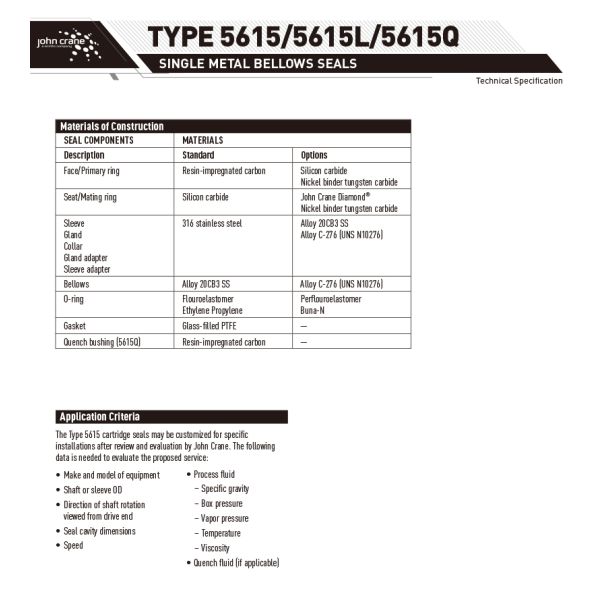

Specifications
Delivery Time :
15 working days
Bellows :
Alloy 20CB3 SS, Alloy C-276 (UNS N10276)
Quench bushing (5615Q) :
Resin-impregnated carbon
Model Number :
Type 5615/5615Q/5615L
Seat/Mating ring :
Silicon carbide, Nickel binder tungsten carbide
Supply Ability :
1000000/Month
Sleeve adapter :
316 stainless steel, Alloy 20CB3 SS, Alloy C-276 (UNS N10276)
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Gland adapter :
316 stainless steel, Alloy 20CB3 SS, Alloy C-276 (UNS N10276)
Certification :
ISO9001
Sleeve :
316 stainless steel, Alloy 20CB3 SS, Alloy C-276 (UNS N10276)
MOQ :
1pc
Packaging Details :
Carton
Collar :
316 stainless steel, Alloy 20CB3 SS, Alloy C-276 (UNS N10276)
O-ring :
Flouroelastomer, Ethylene Propylene, Perflouroelastomer, Buna-N
Brand Name :
BESTSEAL
Face/Primary ring :
Resin-impregnated carbon, Silicon carbide, Nickel binder tungsten carbide
Place of Origin :
CHINA
Gland :
316 stainless steel, Alloy 20CB3 SS, Alloy C-276 (UNS N10276)
Gasket :
Glass-filled PTFE
Description
John Crane Type 5615 5615Q 5615L Mechanical Seal Single Cartridge Metal Bellows Seal

Type 5615/5615Q/5615L

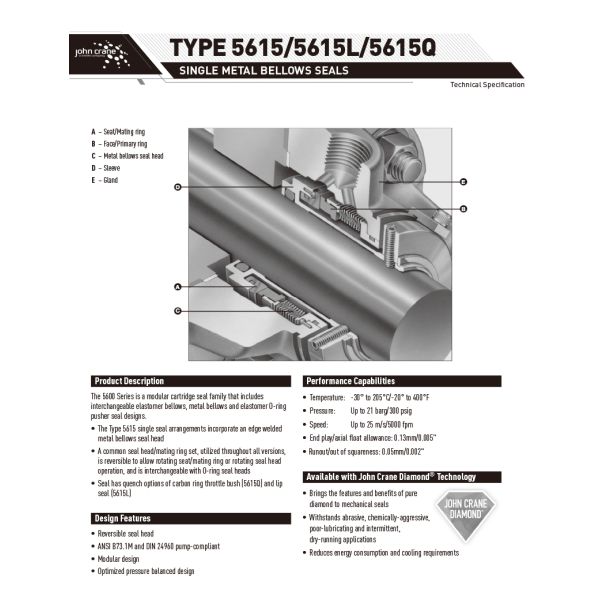

Universal Cartridge Seal Family — Single Cartridge Metal Bellows Seal.

As the first truly universal cartridge seal, the modular family concept of John Crane's Universal Cartridge Seal series will change your approach to sealing. Since the 5600 Series components are interchangeable, you can apply one seal family throughout your plant. This gives you the flexibility to cover more applications with less inventory, which means your maintenance is simplified, downtime is reduced, plant operating efficiency is increased and costs are lowered. The 5615 is available with either Alloy 20 or Alloy C-276 edge-welded metal bellows in either a rotating or stationary configuration.

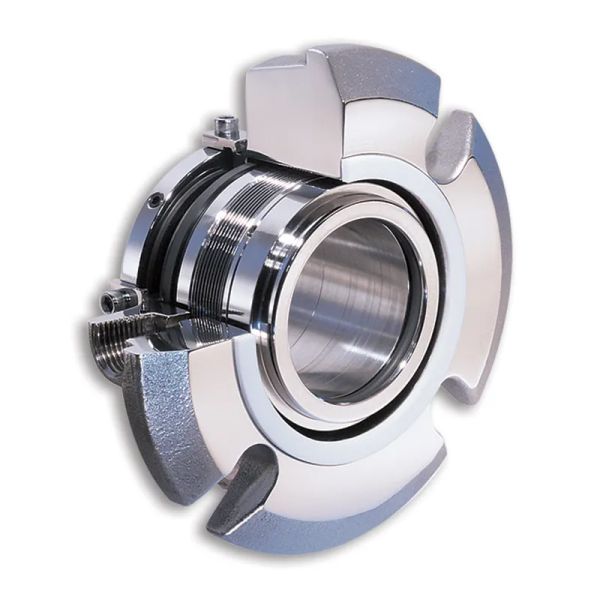

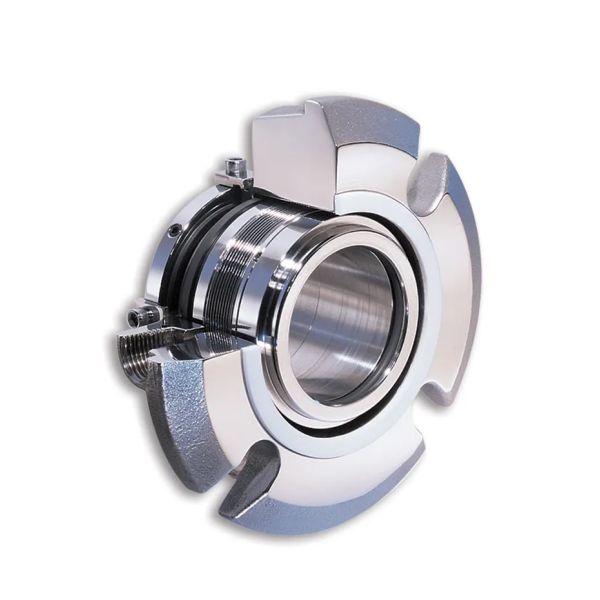

The type 5615 seal is a single cartridge metal bellows seal.

The type 5615Q seal provides a quench gland with carbon ring throttle bushing.

The type 5615L seal provides a quench gland with lip seal.

Features

  • Engineered to be a performance leader.
  • The Type 5615 single seal arrangements incorporate a edge-welded metal bellows seal head.
  • The seal head/mating ring set is reversible allowing for stationary and rotating arrangements.
  • ANSI B73.1M and DIN 24960 pump compliant.
  • Modular design.
  • Optimized pressure-balanced design.
  • Available in in Alloy 20 and Alloy C-276 metal bellows.
  • Hard faces available for abrasive applications.

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress
  • BESTSEAL Cartridge Mechanical Seals
  • Your Fast-Track Alternative to John Crane Type 5615/5615Q/5615L
  • Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
