Specifications
Model Number :
Type 4615
Mating ring :
Silicon carbide, Tungsten carbide
Certification :
ISO9001
Bellows assembly :
Alloy 20CB3 SS
Place of Origin :
CHINA
Seal Hardware :
316 stainless steel
MOQ :
1pc
Packaging Details :
Carton
O-ring :
Fluoroelastomer, Ethylene propylene, Neoprene, Nitrile
Supply Ability :
1000000/Month
Centering ring (spacer) :
Glass flled PTFE
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Gland gasket :
Glass flled PTFE
Delivery Time :
15 working days
Brand Name :
BESTSEAL
Primary ring :
Carbon, Silicon carbide
Description

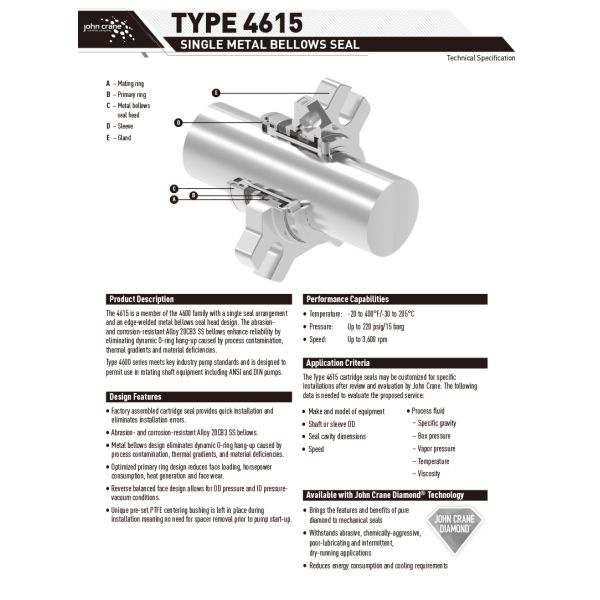

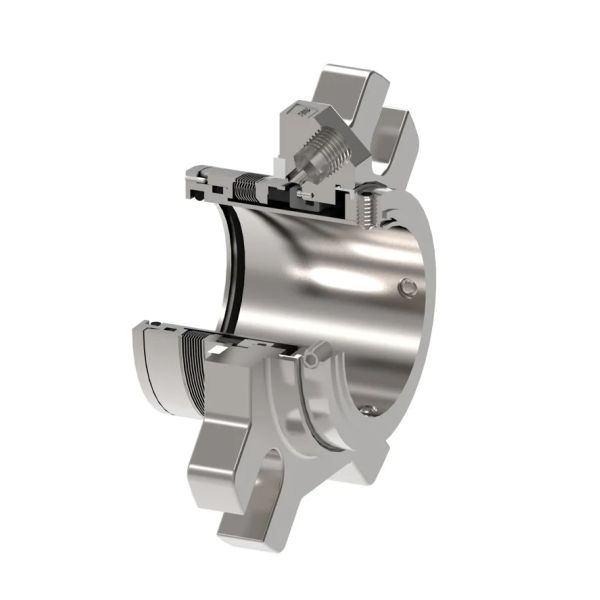

John Crane Type 4615 Single Cartridge Mechanical Seal Metal Bellows Seals for ANSI and DIN Pumps
Type 4615
General-purpose Single Cartridge Metal Bellows Seal

The 4615 is a metal bellows seal that replaces the EZ-1® General-purpose Single Cartridge Seal.

It is a member of the 4600 family of cartridge seals.

Like other Type 4600 series cartridge seals, the 4615 design provides reduced installation times, lower maintenance costs and optimal equipment performance; and is ideal for the chemical, pulp and paper, wastewater, food processing and power generation industries. The abrasion and corrosion-resistant Alloy 20CB3 SS bellows enhance reliability by eliminating dynamic O-ring hang-up caused by process contamination, thermal gradients, and material deficiencies. The 4615 replaces the EZ-1® General-purpose Single Cartridge Seal, offering improved value and availability.

Features
  • Fits ANSI standard and DIN pumps.
  • Easy to Install
  • Factory assembled and tested, eliminating potential field assembly and installation errors
  • Only one moving part: the bellows.
  • Alloy 20CB3 SS bellows
  • Eliminates O-ring "hang-up" problems.
  • Maintains positive seal face closing forces in upset pressure reversal or vacuum situations.
  • Design eliminates thermal expansion limits of mating ring.
Performance Capabilities
Temperature Limits -20 to 266°F/-30 to 130°C
Pressure Limits 220 psi(g)/15 bar(g) process pressure
Speed Limits 3600 rpm
End play/axial float allowance ±0.1mm
Brand BESTSEAL
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well
Recommended Applications
Process pumps
Other rotating equipment

"15 years in mechanical seals.

we quote in 3 hours, deliver production drawing in 24 hours, and ship in 15–20 working days.

From 1 piece. Real-time tracking. Direct alternative to John Crane Type 4615."
